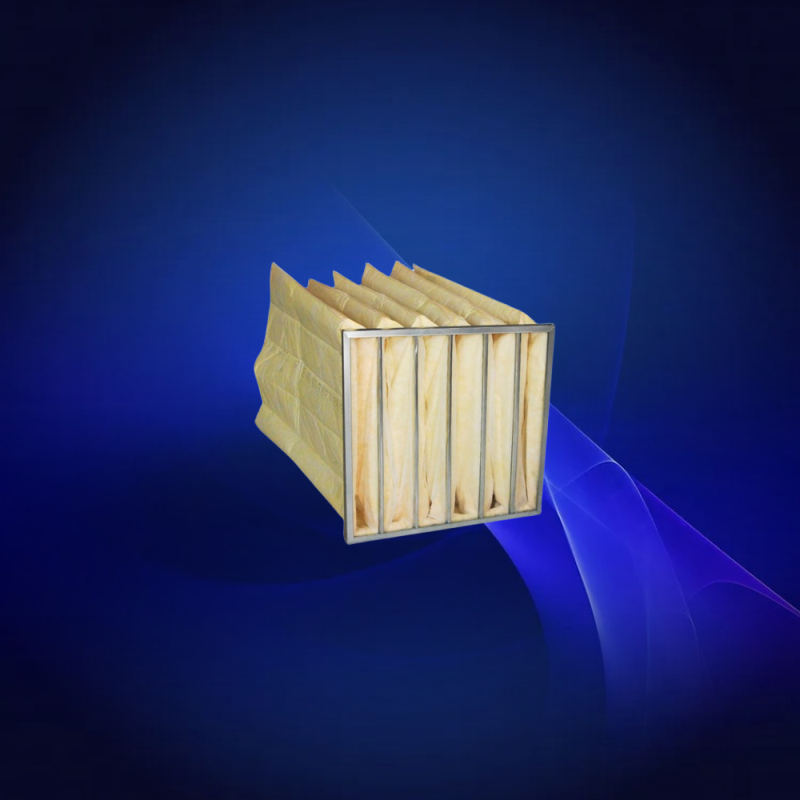

Glass Fiber Bag Medium Efficiency Filter F9

5 0 Reviews

The medium efficiency of glass fiber filter using the melt-blown superfine glass fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and other similar synthetic fiber products compare high efficiency, low resistance ,high dust capacity, long life ,high temperature resistance.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Applications: commercial, industrial, clean room ventilation and air conditioning system in the main filter.

Specification

Frame: Aluminum alloy. Galvanized sheet metal ; Filter material: Melt-blown super fine Glass fibre

Efficiency:

F9 (EN 779): 90-98% ASHRAE 52/76

Temperature:≤115o C

Humidity:≤100% RH

Recommended final pressure drop: ≤180 Pa

Frame Thickness：21mm、25mm、46mm

Model No.	Nominal Size (inches)	Actual Size (mm)			Bags	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN779	KG
Model No.	Nominal Size (inches)	Width	Height	Depth	Bags	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN779	KG
DGM-B-P367	24 x 24 x 15	592	592	380	8	3.6	1950 / 70	2450 / 90	3200 / 125	F9	1.9
DGM-B-P368	20 x 24x 15	490	592	380	6	2.7	1500 / 70	2350 / 90	2850 / 125	F9	1.6
DGM-B-P369	12 x 24x15	287	592	380	3	1.4	950 / 70	1080 / 90 5	1500 / 125	F9	0.9
DGM-B-P370	20x 20x 15	490	490	380	5	2.0	1150 / 70	1650 / 90	2180 / 125	F9	1.4
DGM-B-P371	20 x16 x 15	490	390	380	4	1.6	850 / 70	1450 / 90	2150 / 125	F9	1.6
DGM-B-P372	12x 12 x 15	287	287	380	2	0.44	350 / 70	400 / 90	650 / 125	F9	0.58
DGM-B-P373	24 x 24 x 19	592	592	480	8	4.6	2150 /70	2850 / 90	3400 /125	F9	2.2
DGM-B-P374	20 x 24x 19	490	592	480	6	3.4	1800 / 70	2600 / 90	3050 / 125	F9	1.9
DGM-B-P375	12 x 24x19	287	592	480	3	1.7	1050 /70	1350 / 90 5	1700 / 125	F9	0.95
DGM-B-P376	20x 20x 19	490	490	480	5	2.35	1350 /70	1850 / 90	2350 / 125	F9	1.8
DGM-B-P377	20 x 16 x19	490	390	480	4	1.5	1050 /70	1650 / 90	2350 /125	F9	1.7
DGM-B-P378	12x 12 x 19	287	287	480	2	0.5	450 /70	500 / 90	850 / 125	F9	0.95
DGM-B-P379	24 x 24 x 21	592	592	534	8	4.74	2380 /70	3200 / 90	4200 / 125	F9	2.3
DGM-B-P380	20 x 24x 21	490	592	534	6	4.3	2150 /70	2850 / 90	3200 / 125	F9	1.4
DGM-B-P381	12 x 24x 21	287	592	534	3	1.8	1250 / 70	1500 / 90 5	1950 /125	F9	0.9
DGM-B-P382	20x 20x 21	490	490	534	5	2.5	1550 / 70	2280 / 90	2500 / 125	F9	1.3
DGM-B-P383	20 x 16 x 21	490	390	534	4	1.6	1250 / 70	1850 / 90	2650 / 125	F9	1.1
DGM-B-P384	12x 12 x 21	287	287	534	2	0.6	500 / 70	650 / 90	950 / 125	F9	0.7
DGM-B-P385	24 x 24 x25	592	592	600	8	5.7	2650 / 90	3600 / 90	4500 / 125	F9	2.4
DGM-B-P386	20 x 24x 25	490	592	600	6	4.3	2450 / 70	3100 / 90	3800 / 12525	F9	2.45
DGM-B-P387	12 x 24x25	287	592	600	3	2.2	1450 / 70	1700 / 90 5	2100 / 125	F9	0.98
DGM-B-P388	20x 20x 25	490	490	600	5	2.94	1700 / 70	2450 / 90	2950 / 125	F9	1.8
DGM-B-P389	20 x 16 x 25	490	390	600	4	1.9	1450 / 70	2150 / 90	2850 /125	F9	1.75
DGM-B-P390	12x 12 x25	287	287	600	2	0.7	650 / 70	800 / 90	1250 /125	F9	1.0

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335 Dirkbiel产品详情页
