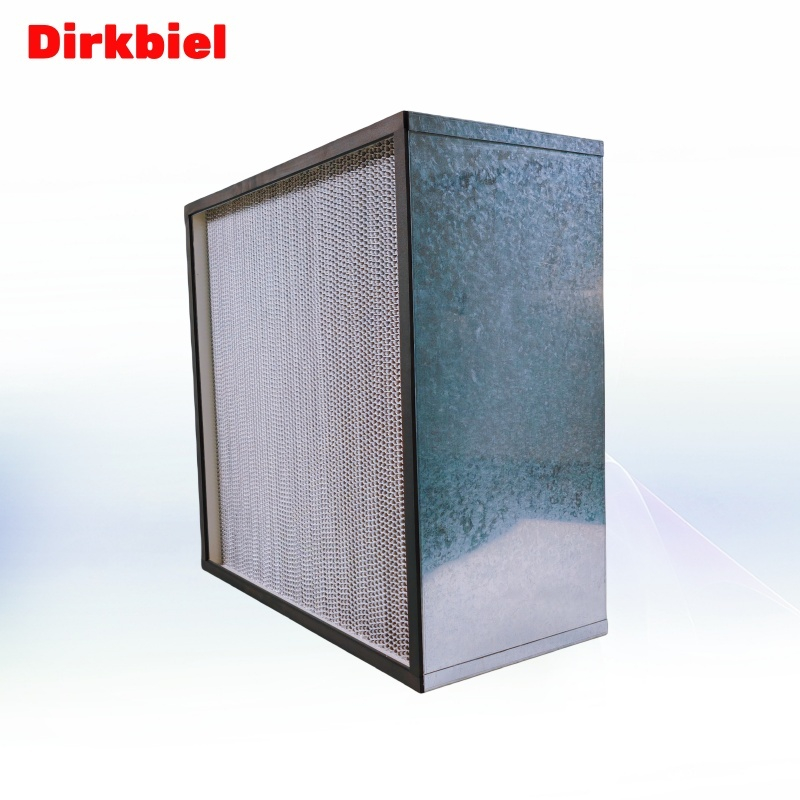

Have Partition Air Filter F8

5 0 Reviews

Applications: commercial, industrial, clean room ventilation and air conditioning system in the main filter.Ventilation systems of high fire-proof requirement. Ventilation systems of high running temperature

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Galvanised sheet metal SUS201,SUS304 ; Filter material: Glass fiber filter paper

Filter Material separation: Aluminium

Efficiency:

F8 (EN 779): 90-95% ASHRAE 52/76

Temperature:≤100^o C

Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Model	Actual Size (mm)			Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN779	KG
Model	Length	Width	Thickness	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN779	KG
box type
DCAM-H-P538	592	592	292	11.2	2500 / 100	3200 / 130	4200 / 160	F8	7.5
DCAM-H-P539	592	490	292	10.5	2000 /100	2800 / 130	3600 / 160	F8	7
DCAM-H-P540	592	287	292	5.8	1250 / 100	1700 / 130	1950 / 160	F8	4
DCAM-H-P541	610	610	292	12.5	2500/90	3600 / 120	4200 / 140	F8	8
DCAM-H-P542	610	305	292	6.5	1650 / 90	1800 / 120	2000 / 140	F8	4.5
into the wind with flange :19mm(W)×20mm(D)
DCAM-H-P543	592	592	292	10.5	2500 / 120	3200 / 150	4200 / 180	F8	8.5
DCAM-H-P544	592	490	292	9.8	2000 /120	2800 / 150	3600 / 180	F8	8
DCAM-H-P545	592	287	292	5	1250 / 120	1700 / 150	1950 / 180	F8	4.5
DCAM-H-P546	610	610	292	11	2500/110	3600 / 125	4200 / 160	F8	9
DCAM-H-P547	610	305	292	5.8	1650 / 110	1800 / 125	2000 / 160	F8	5
double flange:19mm(W)×20mm(D)
DCAM-H-P548	592	592	292	9.5	2500 / 120	3200 / 160	4200 / 200	F8	11.5
DCAM-H-P549	592	490	292	8	2000 /120	2800 / 160	3600 / 200	F8	9.8
DCAM-H-P550	592	287	292	4.5	1250 / 120	1700 / 160	1950 / 200	F8	6
DCAM-H-P551	610	610	292	10	2500/120	3600 / 140	4200 / 200	F8	12.5
DCAM-H-P552	610	305	292	5.2	1650 / 120	1800 / 140	2000 / 200	F8	6.5

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335 Dirkbiel产品详情页
