Metal Mesh Filter G3

5 0 Reviews

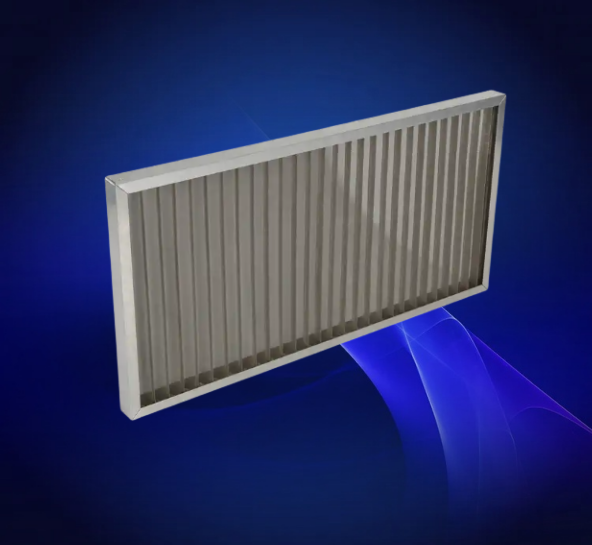

Metal mesh filter has low resistance, and can be repeated cleaning, the characteristics of filter medium mainly includes the aluminum mesh or stainless steel expansion, etc., generally used in central air conditioning except lampblack machine use and primary filter, special filter ventilation system of acid, alkali and high temperature.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Aluminum alloy. Galvanized sheet metal ;

Filter material: aluminum mesh.304Stainless Steel Wire Mesh

Fire retardant grade: UL-2 listed. (UL 900)

Humidity: ≤ 100% RH

Recommended Max. Final Pressure drop: ≤ 380Pa

Model	Nominal Size (inches)	Actual Size (mm)			Filtration area （m2)	Air flow /initial resistance （m3/h / Pa)		Layer
Model	Nominal Size (inches)	Length	Width	Thickness	Filtration area （m2)	Air flow /initial resistance （m3/h / Pa)		Layer
DMM-A-P26	24 x 24 x 4	594	594	95	2.2	1700 / 15	3400/ 30	14
DMM-A-P27	24 x 12 x 4	594	287	95	1.0	850 / 15	1700 / 30
DMM-A-P28	24 x 20 x 4	594	492	95	2.0	1420 / 15	2840 / 30
DMM-A-P29	20 x 20 x 4	492	492	95	1.54	1180 / 15	2360 / 30
DMM-A-P30	20 x 16 x 4	492	391	95	1.25	935 / 15	1870 / 30
DMM-B-P31	24 x 24 x 2	594	594	45	1.35	1700 /15	3400 / 40	7
DMM-B-P32	24 x 12 x 2	594	287	45	0.65	850 / 20	1700 / 40
DMM-B-P33	24 x 20 x 2	594	495	45	1.23	1420 / 20	2840 / 40
DMM-B-P34	24 x 18 x 2	594	445	45	1.05	1275 / 20	2550 / 40
DMM-B-P35	20 x 20 x 2	495	495	45	1.0	1180 / 20	2360 / 40
DMM-B-P36	20 x 18 x 2	495	445	45	0.89	1060 / 20	2120 / 40
DMM-B-P37	20 x 16 x 2	495	394	45	0.56	935 / 20	1870 / 40
DMM-B-P38	20 x 12 x 2	495	287	45	0.54	715 / 20	1430 / 40
DMM-C-P39	24 x 24 x 1	595	595	22	0.65	1190 / 20	2380 / 50	3
DMM-C-P40	24 x 12 x 1	595	287	22	0.32	590 / 20	1190 / 50
DMM-C-P41	24 x 20 x 1	595	495	22	0.52	995 / 20	1990 / 50
DMM-C-P42	20 x 20 x 1	495	495	22	0.40	825 / 20	1650 / 50
DMM-C-P43	20 x 16 x 1	495	394	22	0.32	660 / 20	1325 / 50

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335 Dirkbiel产品详情页
