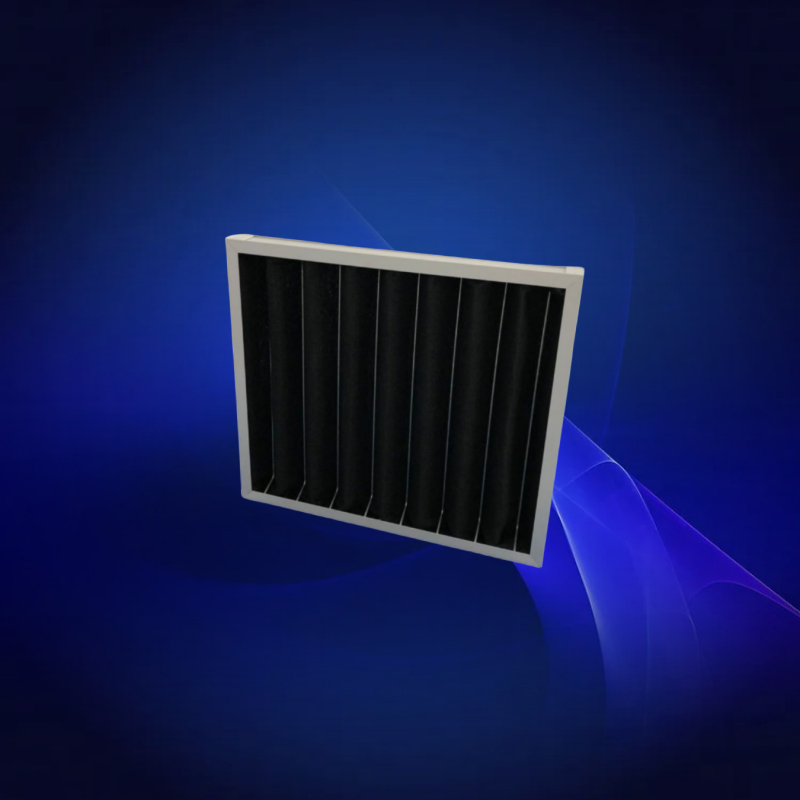

Panel Activated Carbon Air Filter

5 0 Reviews

The active carbon initial effect filter is made of active carbon filtration materials and the active carbon can effectively eliminate foul smells and toxic and hazardous gases (such as benzene, formaldehyde, methyl alcohol, propane, etc.). It can purify the air and protect the human health.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Applications: pre filters for commercial&industrial AHU.

Materials: Aluminum alloy. Galvanized sheet metal ;

Filter material: activated carbon filter

Welded aluminum anti-corrosive.

Efficiency:

G3 (EN 779) :Avg.heavy efficiency 80%

Temperature:≤70o C

Humidity:≤100% RH

Recommended final pressure drop: ≤180 Pa

Model No.	Nominal Size (inches)	Actual Size (mm)			Air flow /initial resistance （m3/h / Pa)
Model No.	Nominal Size (inches)	Length	Width	Thickness	Air flow /initial resistance （m3/h / Pa)
DSMIC-C-P1145	24 x 24 x 4	594	594	95	5500/ 65
DSMIC-C-P1146	24 x 12 x 4	594	287	95	4700 / 65
DSMIC-C-P1147	24 x 20 x 4	594	492	95	4640 / 65
DSMIC-C-P1148	20 x 20 x 4	492	492	95	3860 / 65
DSMIC-C-P1149	20 x 16 x 4	492	391	95	3060 / 65
DSMIC-C-P1150	24 x 24 x 2	594	594	45	4100 / 70
DSMIC-C-P1151	24 x 12 x 2	594	287	45	2040 / 70
DSMIC-C-P1152	24 x 20 x 2	594	495	45	2400 / 70
DSMIC-C-P1153	24 x 18 x 2	594	445	45	3060 / 70
DSMIC-C-P1154	20 x 20 x 2	495	495	45	2580 / 70
DSMIC-C-P1155	20 x 18 x 2	495	445	45	2540 / 70
DSMIC-C-P1156	20 x 16 x 2	495	394	45	2240 / 70
DSMIC-C-P1157	20 x 12 x 2	495	287	45	2340 / 70
DSMIC-C-P1158	24 x 24 x 1	595	595	21	3900 / 85
DSMIC-C-P1159	24 x 12 x 1	595	287	21	1920 / 85
DSMIC-C-P1160	24 x 20 x 1	595	495	21	3270/ 85
DSMIC-C-P1161	20 x 20 x 1	495	495	21	2700 / 85
DSMIC-C-P1162	20 x 16 x 1	495	394	21	2180 / 85

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335

Dirkbiel产品详情页

Activated Carbon Filter Flat panel primary filter Activated carbon air filter
