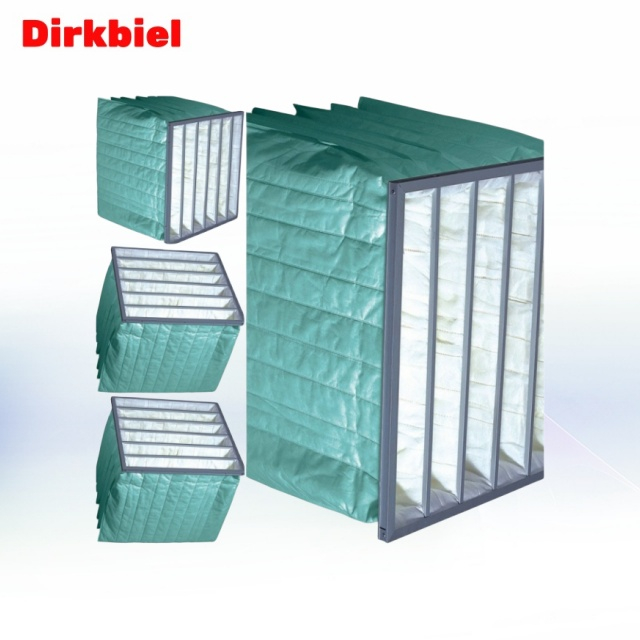

Synthetic Fiber Bag Medium Efficiency Filter M6

Synthetic Fiber Bag Medium Efficiency Filter M6

5 0 Reviews

The medium efficiency of synthetic fiber filter using the melt-blown superfine synthetic fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and other similar products compare high efficiency, low resistance and long life.
Applications: commercial, industrial, clean room ventilation and air conditioning system in the main filter.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Aluminum alloy. Galvanized sheet metal ; Filter material:Synthetic fibre

Efficiency:

M6 (EN 779): 60-65% ASHRAE 52/76

Temperature:≤80o C

Humidity:≤100% RH

Recommended final pressure drop: ≤180 Pa

Model No.	Nominal Size (inches)	Actual Size (mm)			Bags	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN779	KG
Model No.	Nominal Size (inches)	Width	Height	Depth	Bags	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN779	KG
DSM-B-P175	24 x 24 x 15	592	592	380	8	3.6	1950 / 45	2450 / 55	3200 / 75	M6	1.65
DSM-B-P176	20 x 24x 15	490	592	380	6	2.7	1500 / 45	2350 / 55	2850 / 75	M6	1.5
DSM-B-P177	12 x 24x15	287	592	380	3	1.4	950 / 45	1080 / 55 5	1500 / 75	M6	0.8
DSM-B-P178	20x 20x 15	490	490	380	5	2.0	1150 / 45	1650 / 55	2180 / 75	M6	1.2
DSM-B-P179	20 x16 x 15	490	390	380	4	1.6	850 / 45	1450 / 55	2150 / 75	M6	1.4
DSM-B-P180	12x 12 x 15	287	287	380	2	0.44	350 / 45	400 / 55	650 / 75	M6	0.45
DSM-B-P181	24 x 24 x 19	592	592	480	8	4.6	2150 /45	2850 / 55	3400 / 75	M6	1.9
DSM-B-P182	20 x 24x 19	490	592	480	6	3.4	1800 / 45	2600 / 55	3050 / 75	M6	1.6
DSM-B-P183	12 x 24x19	287	592	480	3	1.7	1050 /45	1350 / 55 5	1700 / 75	M6	0.9
DSM-B-P184	20x 20x 19	490	490	480	5	2.35	1350 /45	1850 / 55	2350 / 75	M6	1.7
DSM-B-P185	20 x 16 x19	490	390	480	4	1.5	1050 /45	1650 / 55	2350 / 75	M6	1.0
DSM-B-P186	12x 12 x 19	287	287	480	2	0.5	450 /45	500 / 55	850 / 75	M6	0.9
DSM-B-P187	24 x 24 x 21	592	592	534	8	4.74	2380 /45	3200 / 55	4200 / 75	M6	1.8
DSM-B-P188	20 x 24x 21	490	592	534	6	4.3	2150 /45	2850 / 55	3200 / 75	M6	1.4
DSM-B-P189	12 x 24x 21	287	592	534	3	1.8	1250 / 45	1500 / 55 5	1950 / 75	M6	0.9
DSM-B-P190	20x 20x 21	490	490	534	5	2.5	1550 / 45	2280 / 55	2500 / 75	M6	1.3
DSM-B-P191	20 x 16 x 21	490	390	534	4	1.6	1250 / 45	1850 / 55	2650 / 75	M6	1.1
DSM-B-P192	12x 12 x 21	287	287	534	2	0.6	500 / 45	650 / 55	950 / 75	M6	0.7
DSM-B-P193	24 x 24 x25	592	592	600	8	5.7	2650 / 45	3600 / 55	4500 / 75	M6	2.1
DSM-B-P194	20 x 24x 25	490	592	600	6	4.3	2450 / 45	3100 / 55	3800 / 75	M6	1.8
DSM-B-P195	12 x 24x25	287	592	600	3	2.2	1450 / 45	1700 / 55 5	2100 / 75	M6	0.9
DSM-B-P196	20x 20x 25	490	490	600	5	2.94	1700 / 45	2450 / 55	2950 / 75	M6	1.7
DSM-B-P197	20 x 16 x 25	490	390	600	4	1.9	1450 / 45	2150 / 55	2850 / 75	M6	1.6
DSM-B-P198	12x 12 x25	287	287	600	2	0.7	650 / 45	800 / 55	1250 / 75	M6	0.9

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335 Dirkbiel产品详情页

Bag air filter Medium efficiency air filter Synthetic Fibre Bag air filter
