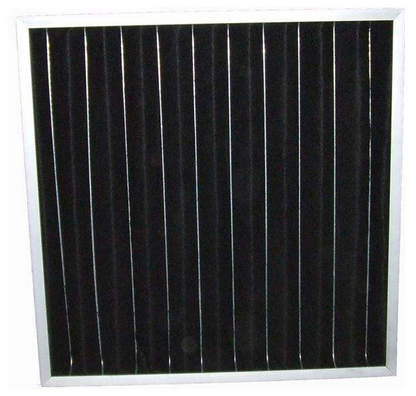

Dirkbiel Chemical Filter & Active Carbon Filter(APP)G4

5 0 Reviews

The active carbon initial effect filter is made of active carbon filtration materials and the active carbon can effectively eliminate foul smells and toxic and hazardous gases (such as benzene, formaldehyde, methyl alcohol, propane, etc.). It can purify the air and protect the human health.

Quantity:
Availability:





Inquire Add to Basket

Primary air filter Activated carbon air filter Panel air filter

Product Description

Applications: Main chemical filters for most commercial & industrial ventilation system

Materials: Aluminum alloy. Galvanized sheet metal ;

Filter material: carbon filter

Welded aluminum anti-corrosive.

Efficiency:

G4 (EN 779) :Avg.heavy efficiency 90%

Temperature:≤70o C

Humidity:≤70% RH

Recommended final pressure drop : ≤180 Pa

Thickness：8mm、10mm、15mm、22mm、46mm、50mm、90mm、95mm

Model No.	Nominal Size (inches)	Actual Size (mm)			Air flow /initial resistance （m3/h / Pa)
Model No.	Nominal Size (inches)	Length	Width	Thickness	Air flow /initial resistance （m3/h / Pa)
DSMIC-C-P1163	24 x 24 x 4	594	594	95	4800/ 65
DSMIC-C-P1164	24 x 12 x 4	594	287	95	3900 / 65
DSMIC-C-P1165	24 x 20 x 4	594	492	95	3850 / 65
DSMIC-C-P1166	20 x 20 x 4	492	492	95	2860 / 65
DSMIC-C-P1167	20 x 16 x 4	492	391	95	2250 / 65
DSMIC-C-P1168	24 x 24 x 2	594	594	45	3600 / 70
DSMIC-C-P1169	24 x 12 x 2	594	287	45	1800 / 70
DSMIC-C-P1170	24 x 20 x 2	594	495	45	2850 / 70
DSMIC-C-P1171	24 x 18 x 2	594	445	45	2560 / 70
DSMIC-C-P1172	20 x 20 x 2	495	495	45	2150 / 70
DSMIC-C-P1173	20 x 18 x 2	495	445	45	1950 / 70
DSMIC-C-P1174	20 x 16 x 2	495	394	45	1740 / 70
DSMIC-C-P1175	20 x 12 x 2	495	287	45	1600 / 70
DSMIC-C-P1176	24 x 24 x 1	595	595	21	3200 / 85
DSMIC-C-P1177	24 x 12 x 1	595	287	21	1920 / 85
DSMIC-C-P1178	24 x 20 x 1	595	495	21	3270/ 85
DSMIC-C-P1179	20 x 20 x 1	495	495	21	2700 / 85
DSMIC-C-P1180	20 x 16 x 1	495	394	21	2180 / 85
