V/W Chemical Filter F8
You are here: Home » Products » Air Filter » Chemical Filter » V/W Chemical Filter F8

loading

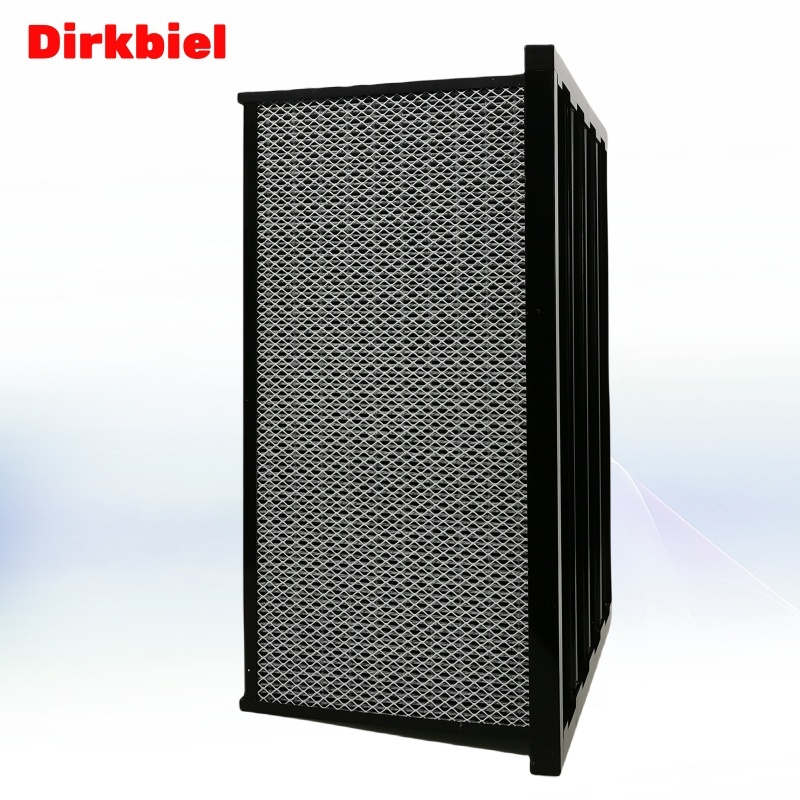

V/W Chemical Filter F8

5 0 Reviews
Applications: Main chemical filter for commercial&industrial ventilation system.
*It can be used for air filtration at the public places such as airports, hospitals (such as wards for patients of respiratory diseases) and office buildings and it can effectively eliminate the smells in the air while saving energy.
*机场、医院(如呼吸器官疾病患者的病房)、办公大楼等公共场所的空气过滤,能有效去除空气中的异味同时具有节省能源的优点
*It can be used for eliminating oxysulfides and nitrogen oxides in the air at museums, archives and libraries in order to protect the collections from damages.
*It can be used at the central control rooms at chemical companies, petrochemical companies and steel works in order to protect the precision instrument and equipment from damages by corrosive gases.
*It can be used in semi-conductor and micro electronics manufacturing companies which can remove AMC (Airborne Molecular Contamination), improve product quality and protect the health of employees.(Airborne Molecular Contamination,简称 AMC)
*It can be used in the animal rooms of laboratories which can improve the quality of experimental animals and protect the atmospheric environment.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Frame: ABS

Filter material: Multilayer carbon media + Multilayer composite synthetic fiber

Efficiency:

F8 (EN 779): 90-95% ASHRAE 52/76

Temperature:≤40ºC. Humidity:≤100% RH

Recommended final pressure drop:≤380 Pa

Flange W:19mm

        Model

Actual Size(mm)

V

Filtration area

Air flow /initial resistance

(m3/h / Pa)

Efficiency

Weifht

Width

Height

Depth

(m2)

EN1822

KG

DSMIC-C-P1241

592

592

292

4

14.8

2500 / 180

3400 / 240

4000 / 290

H13

7.5

DSMIC-C-P1242

592

490

292

4

11.5

1900 / 180

2500 / 240

3000 / 290

H13

6.6

DSMIC-C-P1243

592

287

292

4

7.2

1100 / 180

1700 / 240

2000 / 290

H13

4.8

屏幕截图 2023-11-16 104305屏幕截图 2023-11-16 104335Dirkbiel产品详情页
