150℃Endurable High Temperature HEPA H13 DHTC-H-P691

You are here: Home » Products » High efficiency air filter » Endurable High Temperature HEPA » 150℃Endurable High Temperature HEPA H13 DHTC-H-P691

150℃Endurable High Temperature HEPA H13 DHTC-H-P691

5 0 Reviews

●Large dust capacity
●Large ventilation
●High structural strength
●Low resistance
●High temperature resistance

Quantity:
Availability:





Inquire Add to Basket

Brand:
Dirkbiel

C346 拷贝

Enkonduko:

High temperature stainless steel mesh filter, using 300~400 mesh 304 stainless steel mesh as filter material, 304 stainless steel frame fixed, up to 250 degrees of high temperature resistance, stainless steel mesh aperture between 35~43 microns, simple to use, can be cleaned and used repeatedly.

Application:

Central air conditioning filter primary filtration special acid, alkali or high temperature ventilation filtration system, automotive assembly workshop filtration, military shipbuilding and other industries

应用场景2 拷贝 5

_MG_99412 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●High temperature resistance

Endurable High Temperature HEPA

Introduce

Parameter

Quality

C346 拷贝

Enkonduko:

Application:

应用场景2 拷贝 5

_MG_99412 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●High temperature resistance

Specification:

Attributes		Value
Frame		SUS304
Filter material		Special glass fibre filter paper
Filter Material separation		Aluminum foil
Efficiency	EN779	H13
	ASHRAE	MERV17~MERV18
Temperature		≤150℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa

Technical Data Sheet:

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency (EN1822)
Model	Length	Width	Thickness	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency (EN1822)
DHTC-H-P691	320	320	150	2.9	250 / 200	H13
DHTC-H-P692	484	484	150	8.2	450 /200	H13
DHTC-H-P693	610	610	150	11.8	850 /200	H13
DHTC-H-P694	630	630	150	14.5	1000/200	H13
DHTC-H-P695	762	610	150	18.6	1500 /200	H13
DHTC-H-P696	915	610	150	19.4	1800 /200	H13
DHTC-H-P697	1220	610	150	26.5	2000 /200	H13
DHTC-H-P698	1260	630	150	28.8	2350 /200	H13
DHTC-H-P699	305	610	292	11.5	950 / 200	H13
DHTC-H-P700	484	484	292	13.6	1150/200	H13
DHTC-H-P701	610	610	292	15.2	1650 /200	H13
DHTC-H-P702	457	610	292	16.9	1450 / 200	H13
DHTC-H-P703	762	610	292	29.7	2000 /200	H13
DHTC-H-P704	305	305	292	5.8	425 / 200	H13
DHTC-H-P705	457	457	292	13.5	1080/ 200	H13

03_副本拷贝

Filter area

The corrugated bulkhead with a spacing of 2-4MM can effectively increase the filtration area

C333 拷贝

HTT

Imported high temperature resistant adhesive, in the process of use will not produce cracking, dust production

微信图片_20240418111220 拷贝

Process

Imported ultra-fine glass fiber filter material, will not produce stripping; Small resistance, large air volume, fast heat transfer

_MG_99412 拷贝1

Customization

Both sides of the filter material 180° fold, fold to form a U-shaped layer, filter material bending when two indentation, effectively prevent filter paper damage

Safety

Fireproof and moisture-proof kraft carton packaging

Introduce

C346 拷贝

Enkonduko:

Application:

应用场景2 拷贝 5

_MG_99412 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●High temperature resistance

Parameter

Specification:

Attributes		Value
Frame		SUS304
Filter material		Special glass fibre filter paper
Filter Material separation		Aluminum foil
Efficiency	EN779	H13
	ASHRAE	MERV17~MERV18
Temperature		≤150℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa

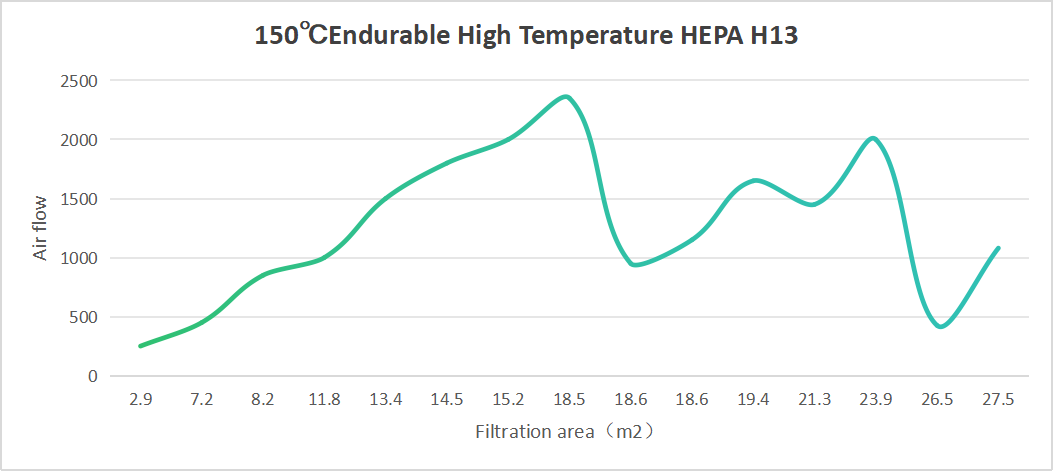

Technical Data Sheet:

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency (EN1822)
Model	Length	Width	Thickness	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency (EN1822)
DHTC-H-P691	320	320	150	2.9	250 / 200	H13
DHTC-H-P692	484	484	150	8.2	450 /200	H13
DHTC-H-P693	610	610	150	11.8	850 /200	H13
DHTC-H-P694	630	630	150	14.5	1000/200	H13
DHTC-H-P695	762	610	150	18.6	1500 /200	H13
DHTC-H-P696	915	610	150	19.4	1800 /200	H13
DHTC-H-P697	1220	610	150	26.5	2000 /200	H13
DHTC-H-P698	1260	630	150	28.8	2350 /200	H13
DHTC-H-P699	305	610	292	11.5	950 / 200	H13
DHTC-H-P700	484	484	292	13.6	1150/200	H13
DHTC-H-P701	610	610	292	15.2	1650 /200	H13
DHTC-H-P702	457	610	292	16.9	1450 / 200	H13
DHTC-H-P703	762	610	292	29.7	2000 /200	H13
DHTC-H-P704	305	305	292	5.8	425 / 200	H13
DHTC-H-P705	457	457	292	13.5	1080/ 200	H13

Quality

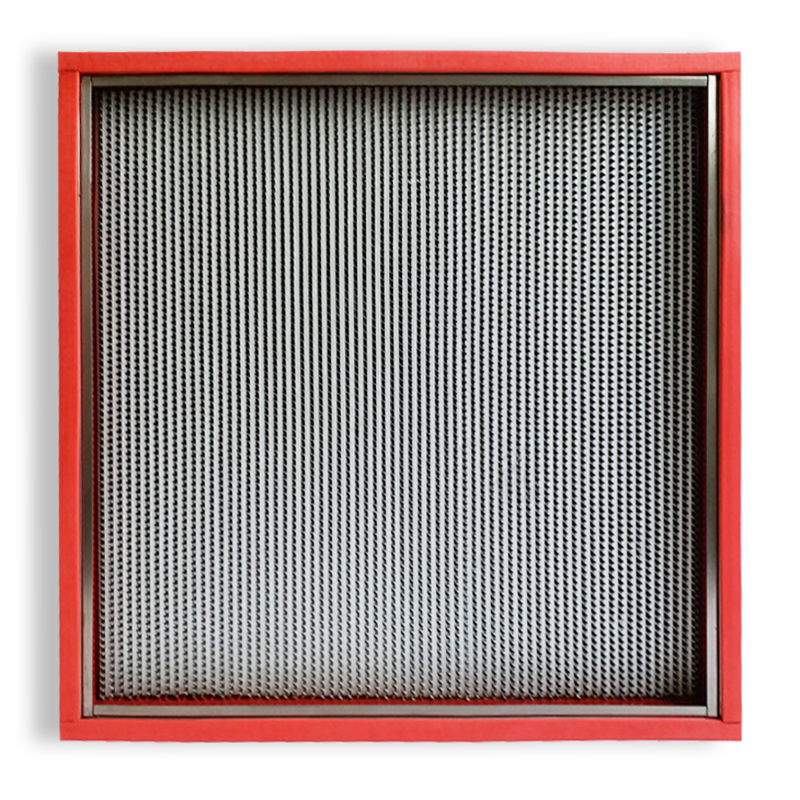

03_副本拷贝

Filter area

The corrugated bulkhead with a spacing of 2-4MM can effectively increase the filtration area

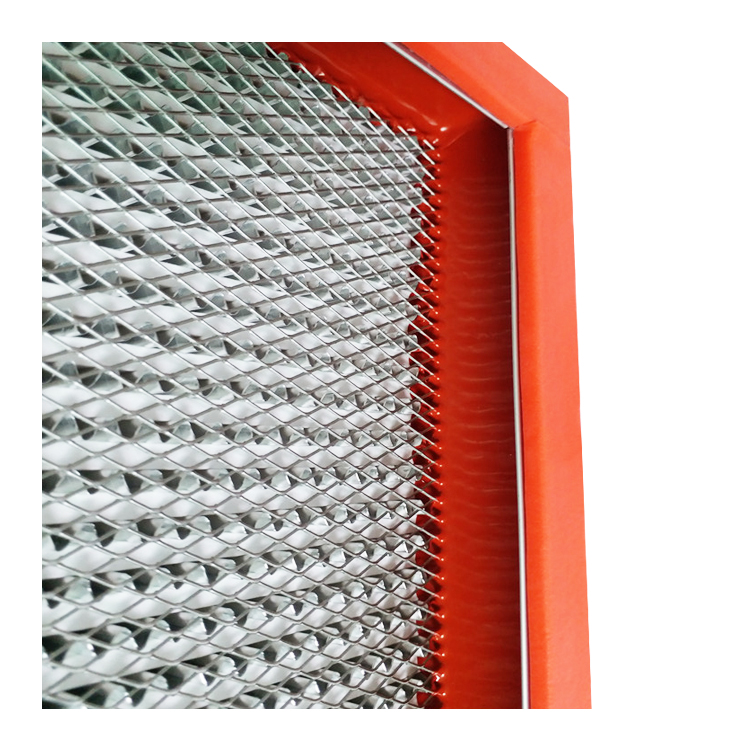

C333 拷贝

HTT

Imported high temperature resistant adhesive, in the process of use will not produce cracking, dust production

微信图片_20240418111220 拷贝

Process

Imported ultra-fine glass fiber filter material, will not produce stripping; Small resistance, large air volume, fast heat transfer

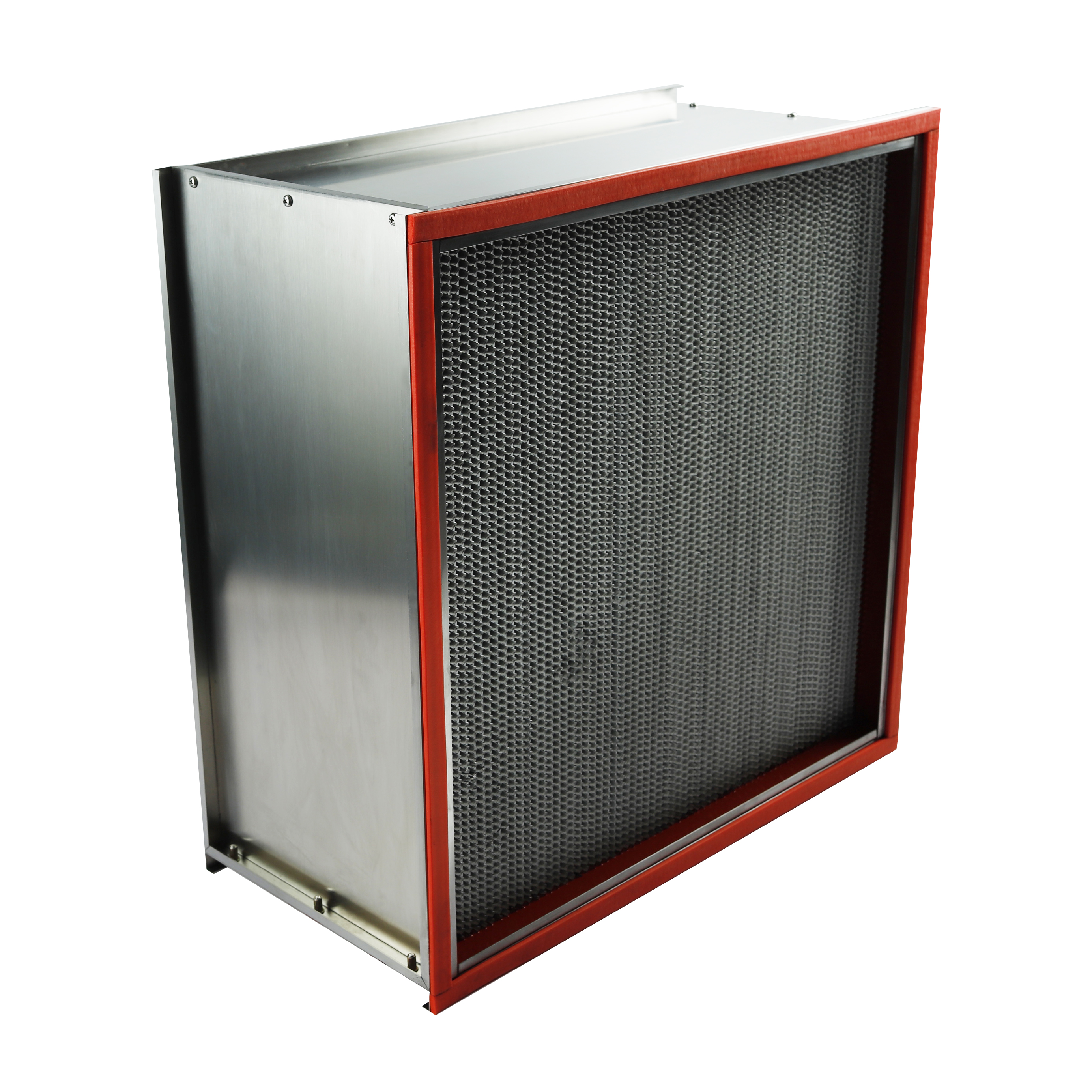

_MG_99412 拷贝1

Customization

Both sides of the filter material 180° fold, fold to form a U-shaped layer, filter material bending when two indentation, effectively prevent filter paper damage

Safety

Fireproof and moisture-proof kraft carton packaging
