| Quantity: | |
|---|---|

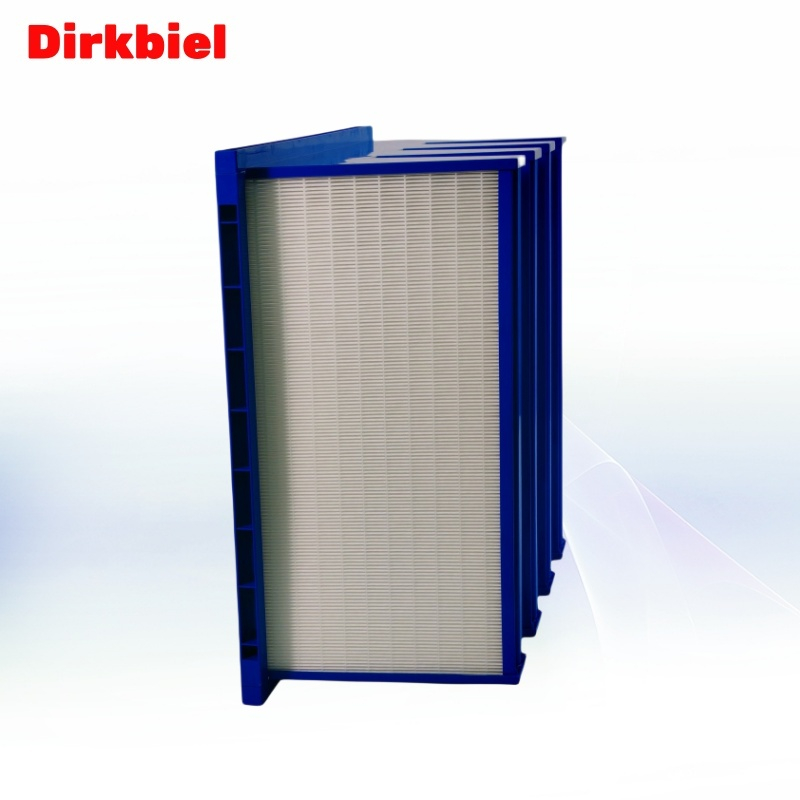

Specification
Frame:ABS PVC; Filter material: Glass fiber filter paper ,
Efficiency:
H13(EN 1822): 99.99% at MPPS(0.3um)
Temperature:≤80o C
Humidity:≤80% RH
Recommended final pressure drop: ≤580 Pa
Flange W:19mm
Model | Actual Size(mm) | V | Filtration area （m2） | Air flow /initial resistance （m3/h / Pa） | Efficiency EN1822 |
Weight KG | ||||
Width | Height | Depth | ||||||||
DAF-V-P480 | 592 | 592 | 292 | 4 | 14.8 | 2500 / 180 | 3400 / 240 | 4000 / 290 | H13 | 7.5 |
DAF-V-P481 | 592 | 490 | 292 | 4 | 11.5 | 1900 / 180 | 2500 / 240 | 3000 / 290 | H13 | 6.6 |
DAF-V-P482 | 592 | 287 | 292 | 4 | 7.2 | 1100 / 180 | 1700 / 240 | 2000 / 290 | H13 | 4.8 |
DAF-V-P483 | 592 | 592 | 292 | 4 | 14.8 | 2500 / 185 | 3400 / 250 | 4000 / 300 | H14 | 7.5 |
DAF-V-P484 | 592 | 490 | 292 | 4 | 11.5 | 1900 / 185 | 2500 / 250 | 3000 / 300 | H14 | 6.6 |
DAF-V-P485 | 592 | 287 | 292 | 4 | 7.2 | 1100 / 185 | 1700 / 250 | 2000 / 300 | H14 | 4.8 |
