Active Carbon Primary Effect Air Filter G3 G4
You are here: Home » Products » Air Filter » Chemical Filter » Active Carbon Primary Effect Air Filter G3 G4

Active Carbon Primary Effect Air Filter G3 G4

5 0 Reviews
Materials: Aluminum alloy. Galvanised sheet metal;
Filter material:Synthetic fibre+ activated carbon;
Efficiency:G3 (EN 779) :Avg.arrestance 80%;
                       G4 (EN 779):Avg.arrestance 90-95%;
Temperature:≤80℃;
Humidity:≤100% RH;
Recommended final pressure drop: ≤280 Pa;
Frame Thickness: 21mm、25mm、46mm;
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


点击查看图片来源 拷贝Enkonduko:

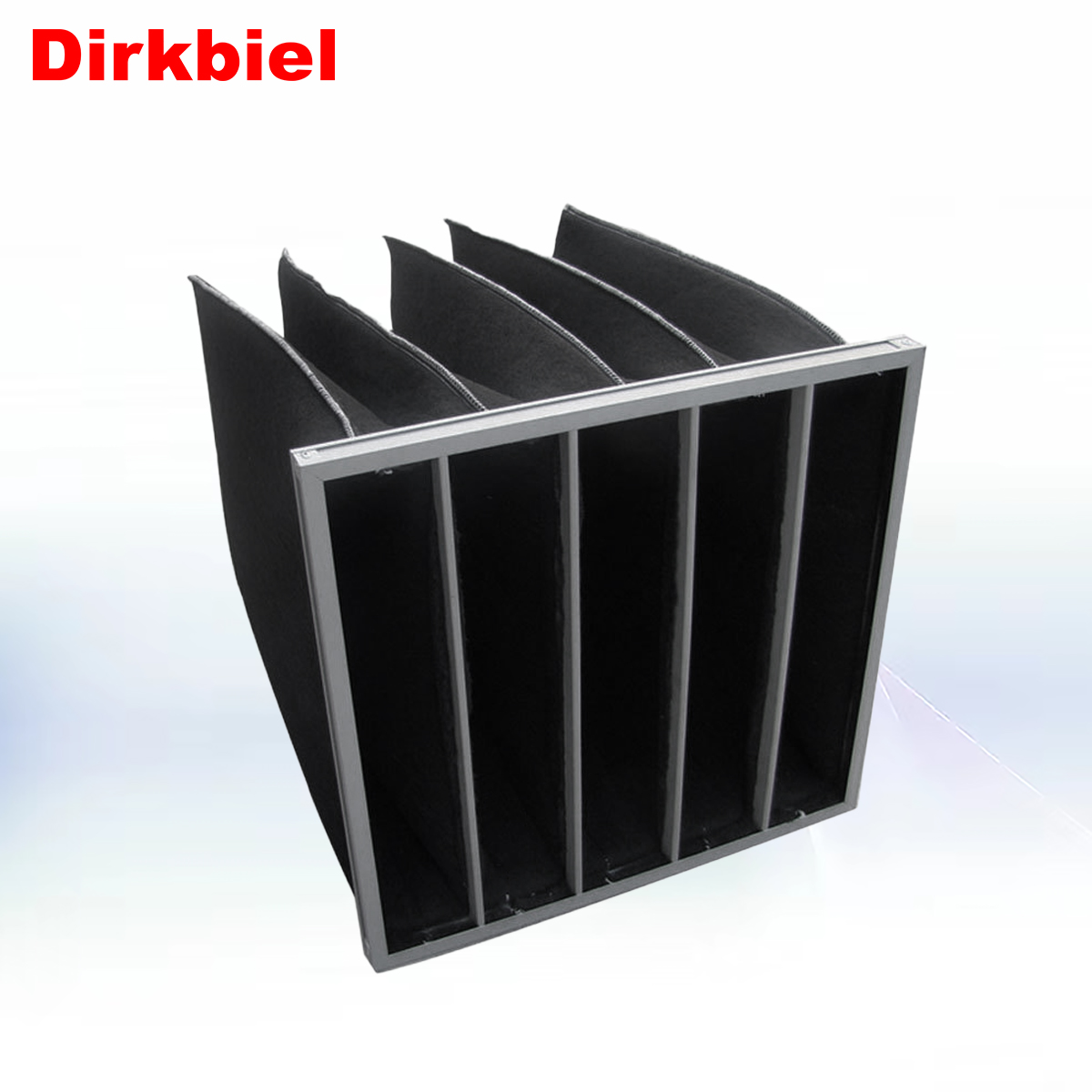

Bag type activated carbon filter is composed of highly adsorbed activated carbon fiber and mixed fiber non-woven fabric and activated carbon composite (powdered activated carbon as adsorption material, the use of polymer bonding material to attach it to the chemical fiber as the substrate made of filter). The filter bag is made of the filter material and the aluminum alloy frame, and the edge of each filter bag is fused by ultrasonic mode, which has good air tightness and bonding strength, and does not produce air leakage or rupture. Filter bag surface adsorption capacity is strong, effective control of air odor and organic pollutants (such as benzol, formaldehyde, methanol, propane, sulfur oxides, nitrogen oxides, etc.).


Application:

Central air conditioning and centralized ventilation systems for commercial or industrial use to remove odors (malodors) and harmful gases from the air. (Spray booth exhaust emission system, industrial waste gas treatment, oil fume purification, various household and vehicle air conditioners, air purifiers, new air fan adsorption and other fields)应用场景2 拷贝 5




Specification:

Attributes                 Value
Frame

Aluminum alloy. Galvanised sheet metal

Filter material

Synthetic fibre+ activated carbon

Efficiency  EN779 G3-G4
ASHRAE MERV5-MERV8
Temperature ≤80℃
Humidity  ≤100% RH
Recommended Max. Final Pressureiz drop ≤ 280Pa
Frame Thickness(mm) 21 / 25 / 46

Technical Data Sheet:

Model

Nominal Size (inches)

Actual Size (mm)

Bags

Filtration area(m2

Air flow /initial resistance

m3/h / Pa

Efficiency

EN779

Width

Height

Depth

DSMIC-C-P1187

24 x24 x14

592

592

360

6

2.6

2280 / 30

3100 / 40

3500 / 60

G3

DSMIC-C-P1188

20 x 24x14

490

592

360

5

2.3

2050 / 30

2650 / 40

3200 / 60

G3

DSMIC-C-P1189

12 x 24x14

287

592

360

3

1.3

1250 / 30

1600 / 40

1900 / 60

G3

DSMIC-C-P1190

20x 20x 14

490

490

360

5

1.9

1650 / 30

2170 / 40

2800 / 60

G3

DSMIC-C-P1191

20 x16 x14

490

390

360

4

1.5

1350 / 30

1860 / 40

2350 / 60

G3

DSMIC-C-P1192

12x12 x14

287

287

360

2

0.38

350 / 30

500 / 40

650 / 60

G3

DSMIC-C-P1193

24 x24 x21

592

592

534

8

4.7

3250 / 30

3600 / 40

4600 / 60

G3

DSMIC-C-P1194

20 x24x 21

490

592

534

6

3.6

2850 / 30

3200 / 40

4200 / 60

G3

DSMIC-C-P1195

12 x 24x21

287

592

534

3

1.8

1650 / 30

2150 / 40

2650 / 60

G3

DSMIC-C-P1196

20x 20x 21

490

490

534

5

2.5

1850 / 30

2850 / 40

3200 / 60

G3

DSMIC-C-P1197

20 x16 x21

490

390

534

4

1.6

1650 / 30

2130 / 40

2850 / 60

G3

DSMIC-C-P1198

12x12 x 21

287

287

534

2

0.6

650 / 30

800 / 40

950 / 60

G3

DSMIC-C-P1199

24 x24 x15

592

592

380

8

3.5

2650 / 30

3200 / 40

4200 / 60

G3

DSMIC-C-P1200

20 x24x15

490

592

380

6

2.7

2300 / 30

3150 / 40

3800 / 60

G3

DSMIC-C-P1201

12 x24x15

287

592

380

3

1.4

1450 / 30

1900 / 40

2500 / 60

G3

DSMIC-C-P1202

20x20x15

490

490

380

5

2.0

1850 / 30

2450 / 40

3200 / 60

G3

DSMIC-C-P1203

20x16 x15

490

390

380

4

1.6

1450 / 30

1950 / 40

2550 / 60

G3

DSMIC-C-P1204

12x12 x15

287

287

380

2

0.44

450 / 30

650 / 40

850 / 60

G3

DSMIC-C-P1205

24 x24 x21

592

592

534

8

4.7

3250 / 45

3600 / 60

4600 / 80

G4

DSMIC-C-P1206

20 x24x 21

490

592

534

6

3.6

2850 / 45

3200 / 60

4200 / 80

G4

DSMIC-C-P1207

12 x 24x21

287

592

534

3

1.8

1650 / 45

2150 / 60

2650 / 80

G4

DSMIC-C-P1208

20x 20x21

490

490

534

5

2.5

1850 / 45

2850 / 60

3200 / 80

G4

DSMIC-C-P1209

20x16 x 21

490

390

534

4

1.6

1650 / 45

2130 / 60

2850 / 80

G4

DSMIC-C-P1210

12x12 x21

287

287

534

2

0.6

650 / 45

800 / 60

950 / 80

G4

DSMIC-C-P1211

24 x24 x15

592

592

380

8

2.8

2580 / 45

3100 / 60

3800 / 80

G4

DSMIC-C-P1212

20 x24x 15

490

592

380

6

2.3

2100 / 45

2850 / 60

3600 / 80

G4

DSMIC-C-P1213

12 x24x 15

287

592

380

3

1.4

1350 / 45

1700 / 60

2500 / 80

G4

DSMIC-C-P1214

20 x20x15

490

490

380

5

1.9

1750 / 45

2370 / 60

3000 / 80

G4

DSMIC-C-P1215

20 x16 x15

490

390

380

4

1.5

1350 / 45

1860 / 60

2350 / 80

G4

DSMIC-C-P1216

12x12 x 15

287

287

380

2

0.38

350 / 45

500 / 60

850 / 80

G4

1187-1191

色相_饱和度 1 拷贝

Filter Bag

Multiple V-shaped filter bag design, filter material effective utilization rate of 100%

亮度_对比度 1 拷贝

Strong

Metal strips are fixed between each filter bag

图层 23

Cotton Filter

The filter cotton is prepared by using high quality powdered activated carbon as adsorption material, which is attached to fiber matrix by polymer binder

13Complete Style

Variety of options are available: plate, boxbag,honeycomb, motherframe, cylinder
