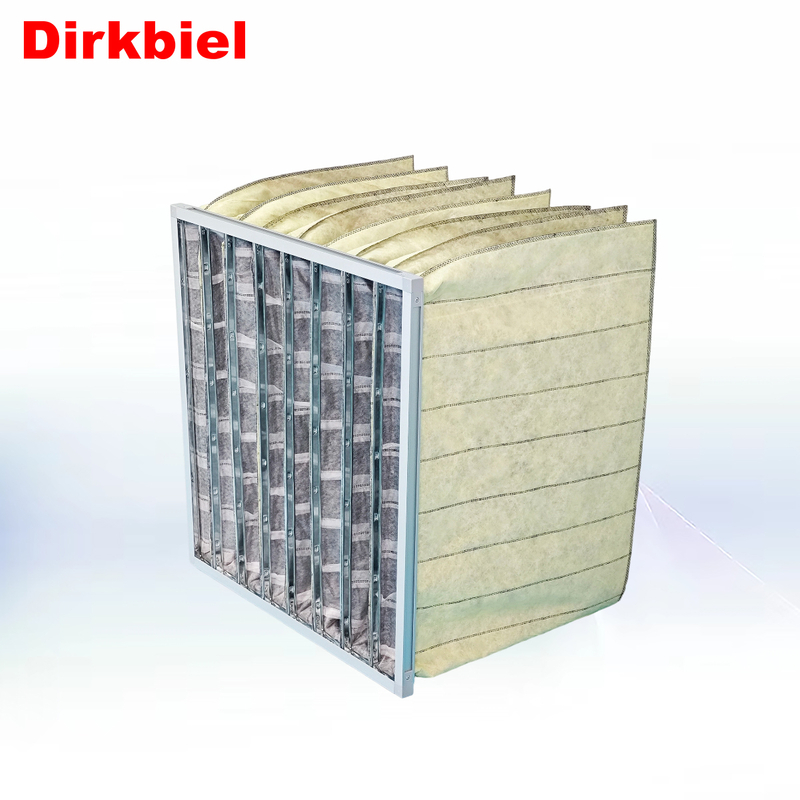

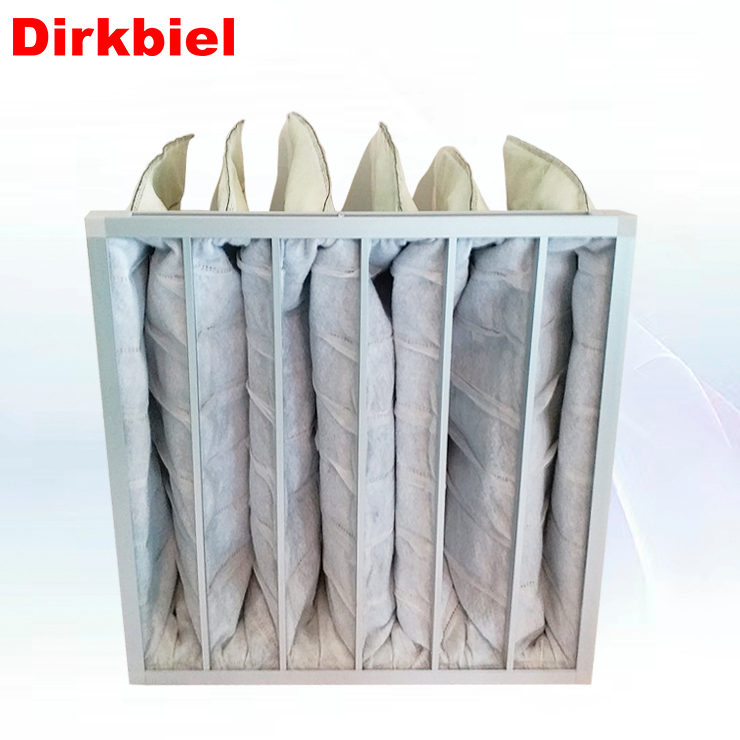

Bag Active Carbon Medium Effect Air Filter F8
You are here: Home » Products » Air Filter » Chemical Filter » Bag Active Carbon Medium Effect Air Filter F8

Bag Active Carbon Medium Effect Air Filter F8

5 0 Reviews
Materials: Aluminum alloy. Galvanised sheet metal;
Filter material:Synthetic fibre+ activated carbon;
Efficiency:F8 (EN 779): 90-95% ASHRAE 52/76;
Temperature:≤80℃;
Humidity:≤100% RH;
Recommended final pressure drop: ≤380 Pa;
Frame Thickness: 21mm、25mm、46mm;
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


601 拷贝Enkonduko:

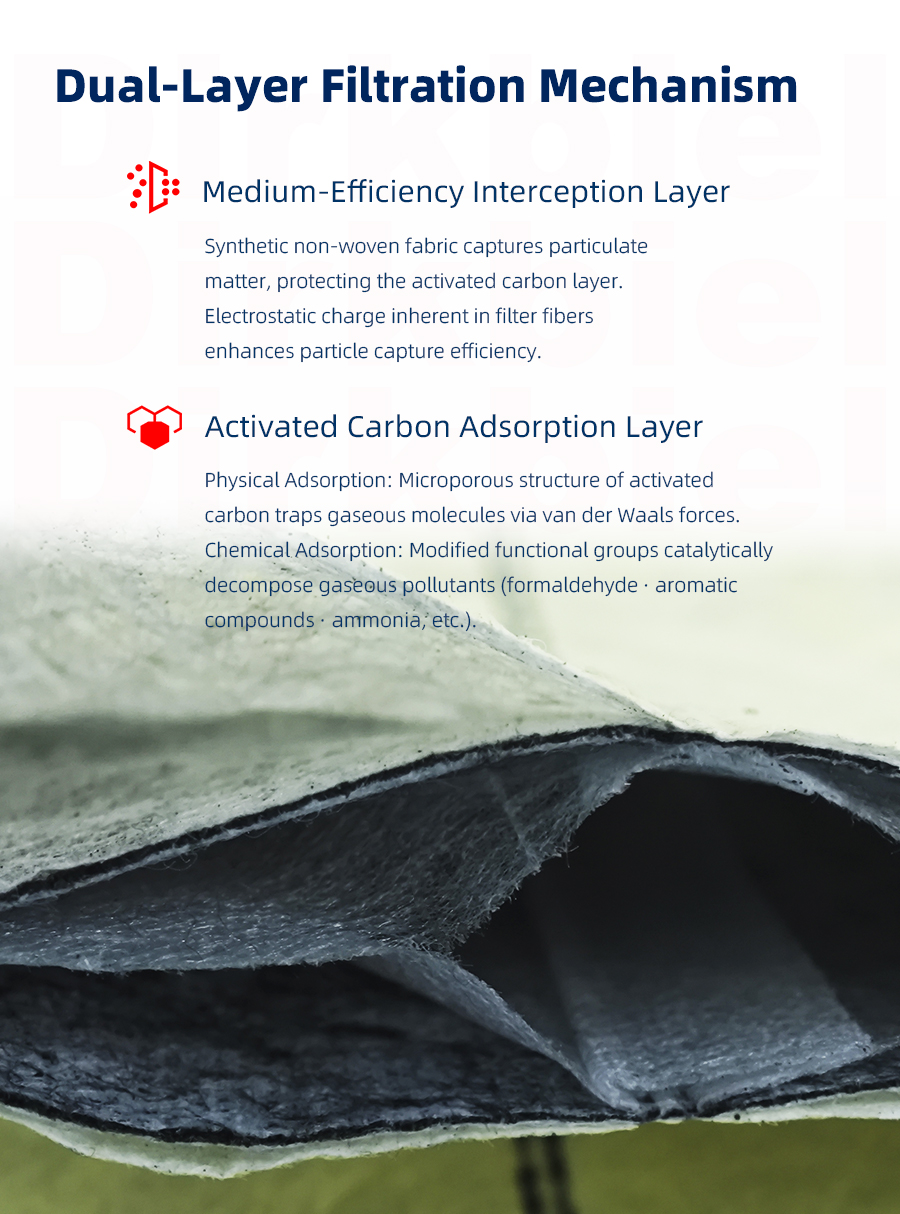

Bag type activated carbon filter is composed of highly adsorbed activated carbon fiber and mixed fiber non-woven fabric and activated carbon composite (powdered activated carbon as adsorption material, the use of polymer bonding material to attach it to the chemical fiber as the substrate made of filter). The filter bag is made of the filter material and the aluminum alloy frame, and the edge of each filter bag is fused by ultrasonic mode, which has good air tightness and bonding strength, and does not produce air leakage or rupture. Filter bag surface adsorption capacity is strong, effective control of air odor and organic pollutants (such as benzol, formaldehyde, methanol, propane, sulfur oxides, nitrogen oxides, etc.).


Application:

Central air conditioning and centralized ventilation systems for commercial or industrial use to remove odors (malodors) and harmful gases from the air. (Spray booth exhaust emission system, industrial waste gas treatment, oil fume purification, various household and vehicle air conditioners, air purifiers, new air fan adsorption and other fields)应用场景2 拷贝 5




Specification:

Attributes                 Value
Frame

Aluminum alloy. Galvanised sheet metal

Filter material

Synthetic fibre+ activated carbon

Efficiency  EN779 F8
ASHRAE MERV14
Temperature ≤80℃
Humidity  ≤100% RH
Recommended Max. Final Pressureiz drop ≤ 380Pa
Frame Thickness(mm) 21 / 25 / 46

Technical Data Sheet:

Model

Nominal Size (inches)

Actual Size (mm)

Bags

Filtration area(m2)

Air flow /initial resistance

(m3/h / Pa)

Efficiency

EN779

Width

Height

Depth

DSMIC-C-P1217

24 x 24 x 15

592

592

380

8

3.6

1950 / 60

2450 / 85

3200 / 110

F8

DSMIC-C-P1218

20 x 24x 15

490

592

380

6

2.7

1500 / 60

2350 / 85

2850 / 110

F8

DSMIC-C-P1219

12 x 24x15

287

592

380

3

1.4

950 / 60

1080 / 85

1500 / 110

F8

DSMIC-C-P1220

20x 20x 15

490

490

380

5

2.0

1150 / 60

1650 / 85

2180 / 110

F8

DSMIC-C-P1221

20 x16 x 15

490

390

380

4

1.6

850 / 60

1450 / 85

2150 / 110

F8

DSMIC-C-P1222

12x 12 x 15

287

287

380

2

0.44

350 / 60

400 / 85

650 / 110

F8

DSMIC-C-P1223

24 x 24 x 19

592

592

480

8

4.6

2150 /60

2850 / 85

3400 / 110

F8

DSMIC-C-P1224

20 x 24x 19

490

592

480

6

3.4

1800 / 60

2600 / 85

3050 / 110

F8

DSMIC-C-P1225

12 x 24x19

287

592

480

3

1.7

1050 /60

1350 / 85

1700 / 110

F8

DSMIC-C-P1226

20x 20x 19

490

490

480

5

2.35

1350 /60

1850 / 85

2350 / 110

F8

DSMIC-C-P1227

20 x 16 x19

490

390

480

4

1.5

1050 /60

1650 / 85

2350 / 110

F8

DSMIC-C-P1228

12x 12 x 19

287

287

480

2

0.5

450 /60

500 / 85

850 / 110

F8

DSMIC-C-P1229

24 x 24 x 21

592

592

534

8

4.74

2380 /60

3200 / 85

4200 / 110

F8

DSMIC-C-P1230

20 x 24x 21

490

592

534

6

4.3

2150 /60

2850 / 85

3200 / 110

F8

DSMIC-C-P1231

12 x 24x 21

287

592

534

3

1.8

1250 / 60

1500 / 85

1950 / 110

F8

DSMIC-C-P1232

20x 20x 21

490

490

534

5

2.5

1550 / 60

2280 / 85

2500 / 110

F8

DSMIC-C-P1233

20 x 16 x 21

490

390

534

4

1.6

1250 / 60

1850 / 85

2650 / 110

F8

DSMIC-C-P1234

12x 12 x 21

287

287

534

2

0.6

500 / 60

650 / 85

950 / 110

F8

DSMIC-C-P1235

24 x 24 x25

592

592

600

8

5.7

2650 / 60

3600 / 85

4500 / 110

F8

DSMIC-C-P1236

20 x 24x 25

490

592

600

6

4.3

2450 / 60

3100 / 85

3800 / 110

F8

DSMIC-C-P1237

12 x 24x25

287

592

600

3

2.2

1450 / 60

1700 / 85

2100 / 110

F8

DSMIC-C-P1238

20x 20x 25

490

490

600

5

2.94

1700 / 60

2450 / 85

2950 / 110

F8

DSMIC-C-P1239

20 x 16 x 25

490

390

600

4

1.9

1450 / 60

2150 / 85

2850 / 110

F8

DSMIC-C-P1240

12x 12 x25

287

287

600

2

0.7

650 / 60

800 / 85

1250 /110

F8

1217-1221

亮度_对比度 6

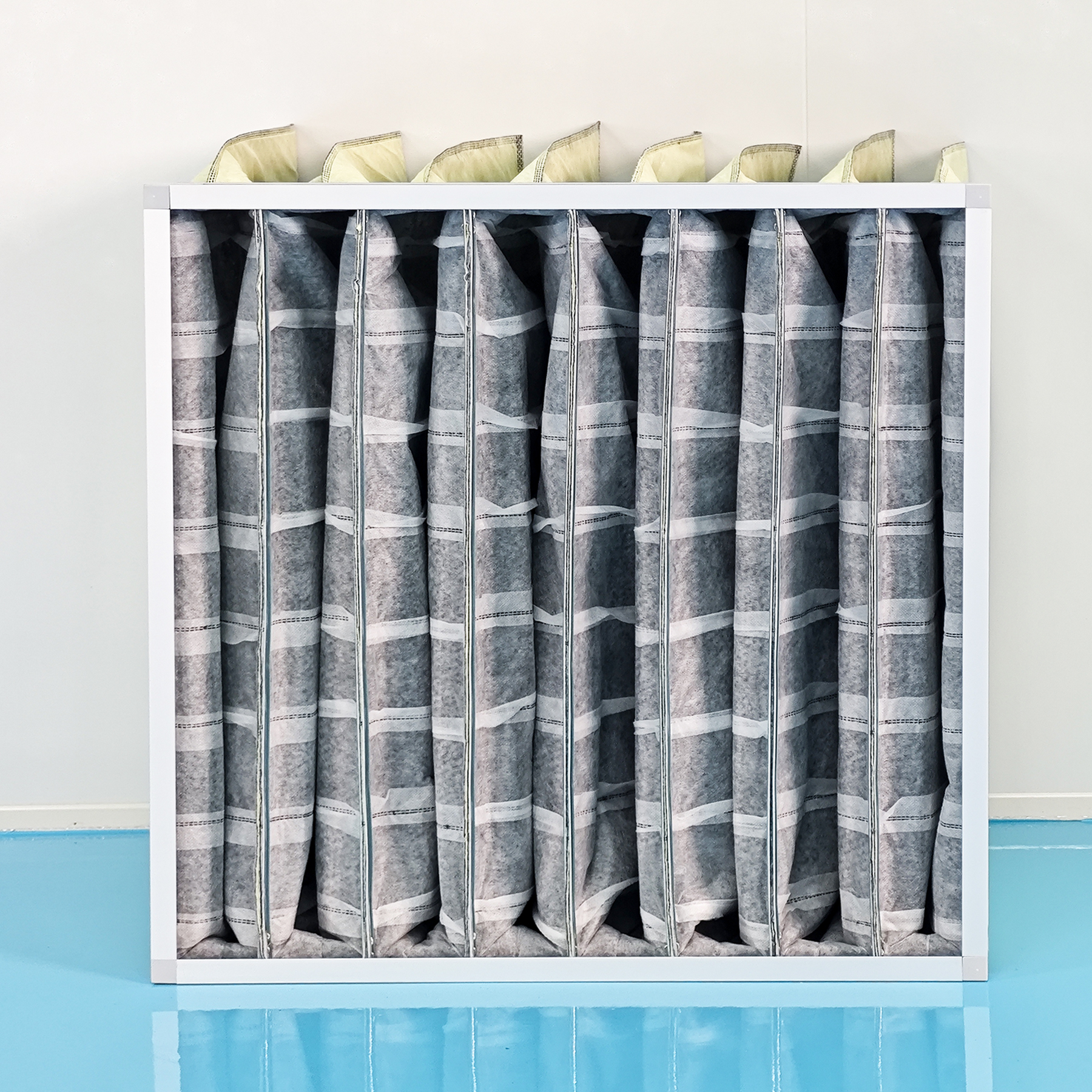

Filter Bag

Multiple V-shaped filter bag design, filter material effective utilization rate of 100%

亮度_对比度 4

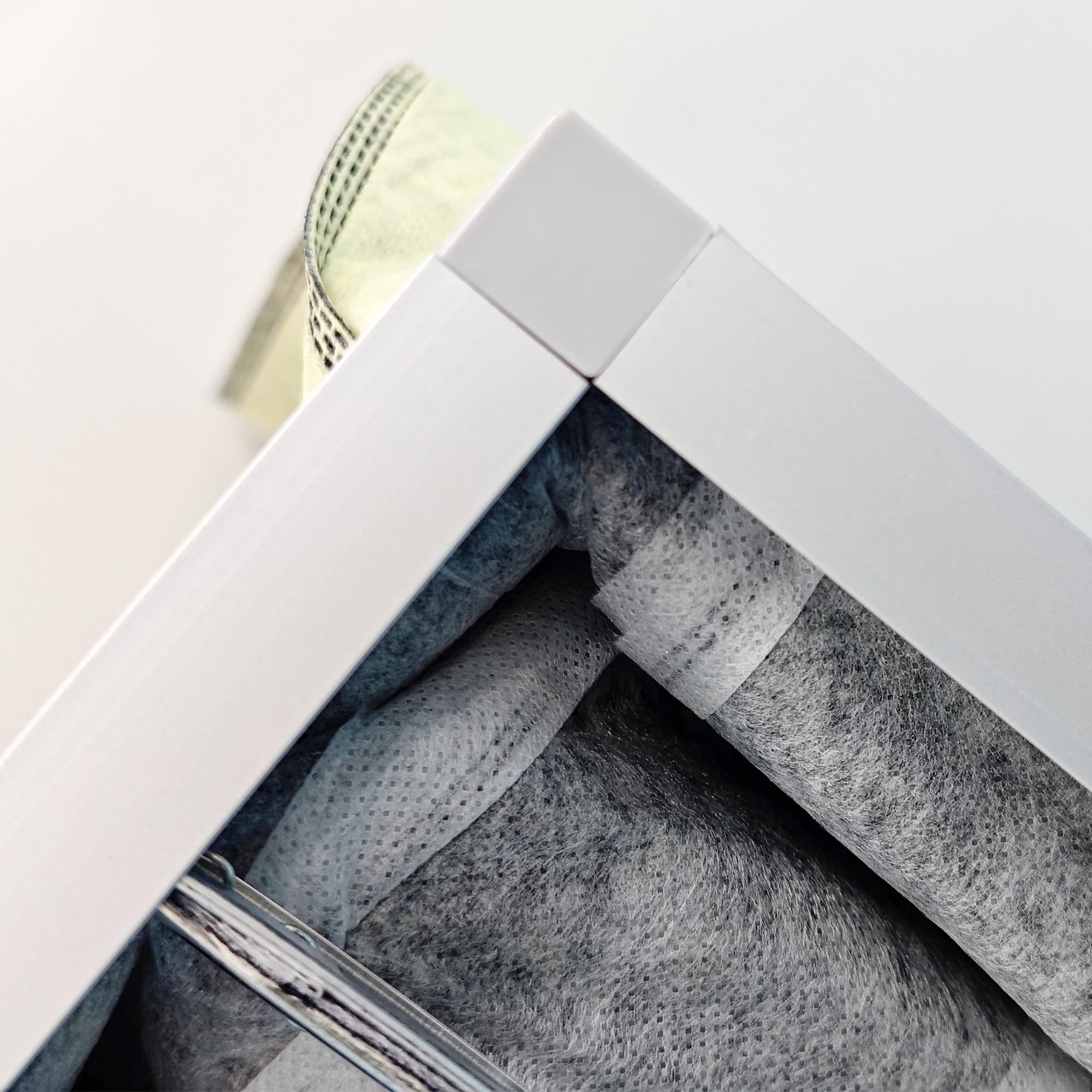

Strong

Metal strips are fixed between each filter bag

P6151175

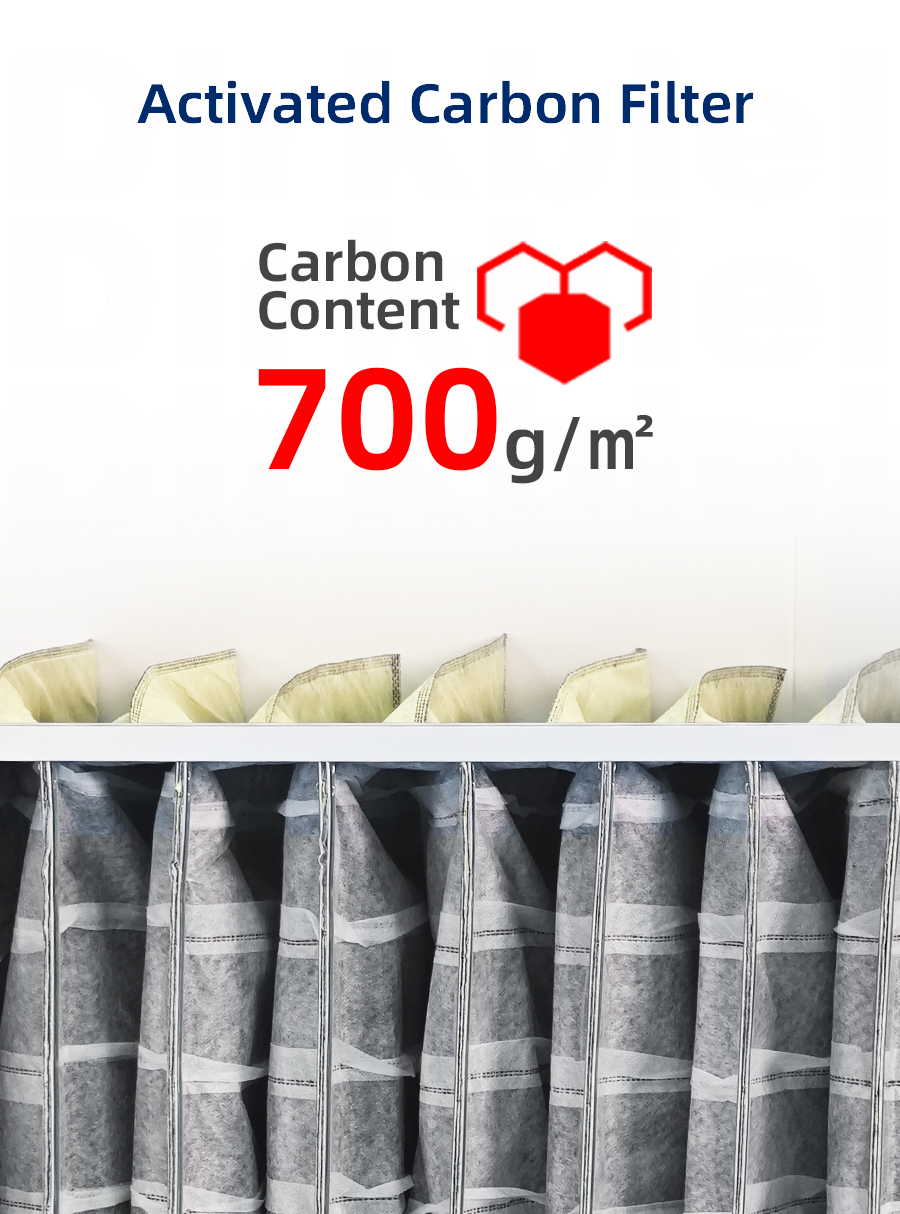

Cotton Filter

The filter cotton is prepared by using high quality powdered activated carbon as adsorption material, which is attached to fiber matrix by polymer binder

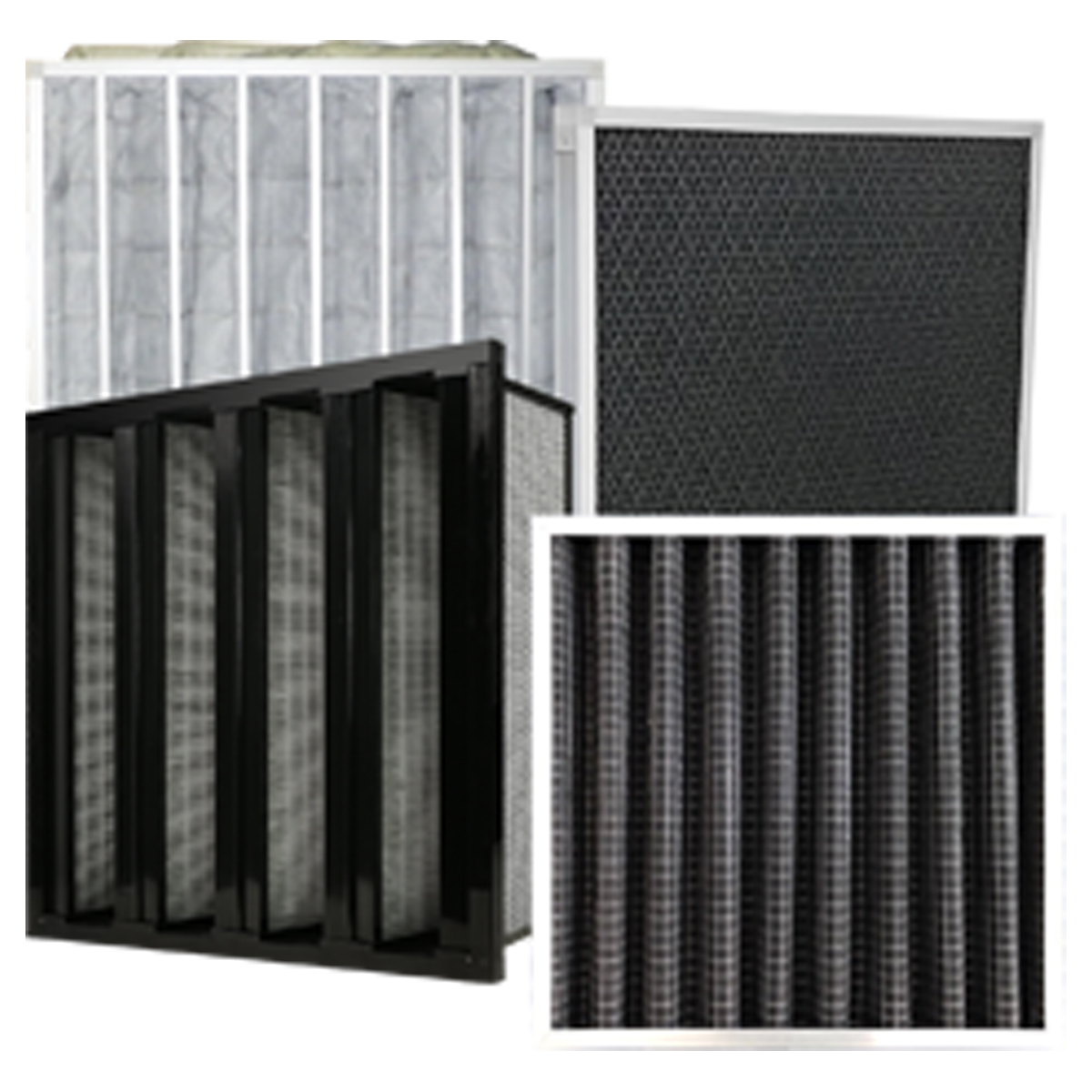

13Complete Style

Variety of options are available: plate, boxbag,honeycomb, motherframe, cylinder
