色相_饱和度 4 Enkonduko:

Plate activated carbon filter (activated carbon filter cotton) is the use of activated carbon filter cotton (high quality powdered activated carbon as adsorption material, using polymer binder material to attach it to the fiber matrix made of filter cotton) as a filter material, this type of filter can effectively remove harmful substances in the air, but also to achieve the effect of dust filter. However, it cannot be cleaned and belongs to disposable consumables.

Application:

Main chemical filters for most commercial&industrial ventilation system 应用场景2 拷贝 5

Specification:

Attributes		Value
Frame		Aluminum alloy. Galvanised sheet metal
Filter material		Carbon Filter
Efficiency	EN779	G4
	ASHRAE	MERV5-MERV6
Temperature		≤70℃
Humidity		≤70% RH
Recommended Max. Final Pressureiz drop		≤ 180Pa
Thickness(mm)		8 / 10 / 15 / 22 / 46 / 50 / 90 / 95

Technical Data Sheet:

Model	Nominal Size (inches)	Actual Size (mm)			Airflow / initial resistance （m³/h / Pa）
Model	Nominal Size (inches)	Width	Heigh	Thickness	Airflow / initial resistance （m³/h / Pa）
DSMIC-C-P1163	24 x 24 x 4	594	594	95	4800/ 65
DSMIC-C-P1164	24 x 12 x 4	594	287	95	3900 / 65
DSMIC-C-P1165	24 x 20 x 4	594	492	95	3850 / 65
DSMIC-C-P1166	20 x 20 x 4	492	492	95	2860 / 65
DSMIC-C-P1167	20 x 16 x 4	492	391	95	2250 / 65
DSMIC-C-P1168	24 x 24 x 2	594	594	45	3600 / 70
DSMIC-C-P1169	24 x 12 x 2	594	287	45	1800 / 70
DSMIC-C-P1170	24 x 20 x 2	594	495	45	2850 / 70
DSMIC-C-P1171	24 x 18 x 2	594	445	45	2560 / 70
DSMIC-C-P1172	20 x 20 x 2	495	495	45	2150 / 70
DSMIC-C-P1173	20 x 18 x 2	495	445	45	1950 / 70
DSMIC-C-P1174	20 x 16 x 2	495	394	45	1740 / 70
DSMIC-C-P1175	20 x 12 x 2	495	287	45	1600 / 70
DSMIC-C-P1176	24 x 24 x 1	595	595	21	3200 / 85
DSMIC-C-P1177	24 x 12 x 1	595	287	21	1920 / 85
DSMIC-C-P1178	24 x 20 x 1	595	495	21	3270/ 85
DSMIC-C-P1179	20 x 20 x 1	495	495	21	2700 / 85
DSMIC-C-P1180	20 x 16 x 1	495	394	21	2180 / 85

色相_饱和度 1 拷贝

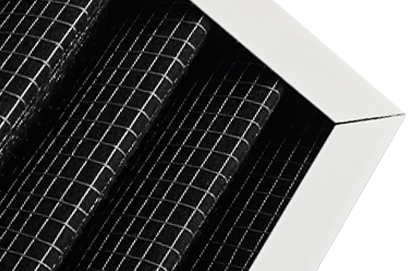

High-Fold

Each fold is 35mm, the high fold number increases the filtration area, reduces the resistance and improves the air volume

亮度_对比度 1 拷贝

Solid

Double-sided hot-dip galvanized net, rust proof and stronger

IMG_20241029_082630

Cotton Filter

The filter cotton is prepared by using high quality powdered activated carbon as adsorption material, which is attached to fiber matrix by polymer binder

Complete Style

Variety of options are available: plate, boxbag,honeycomb, motherframe, cylinder

Chemical Filter & Active Carbon Filter (Plate Type) G4
