Enkonduko:

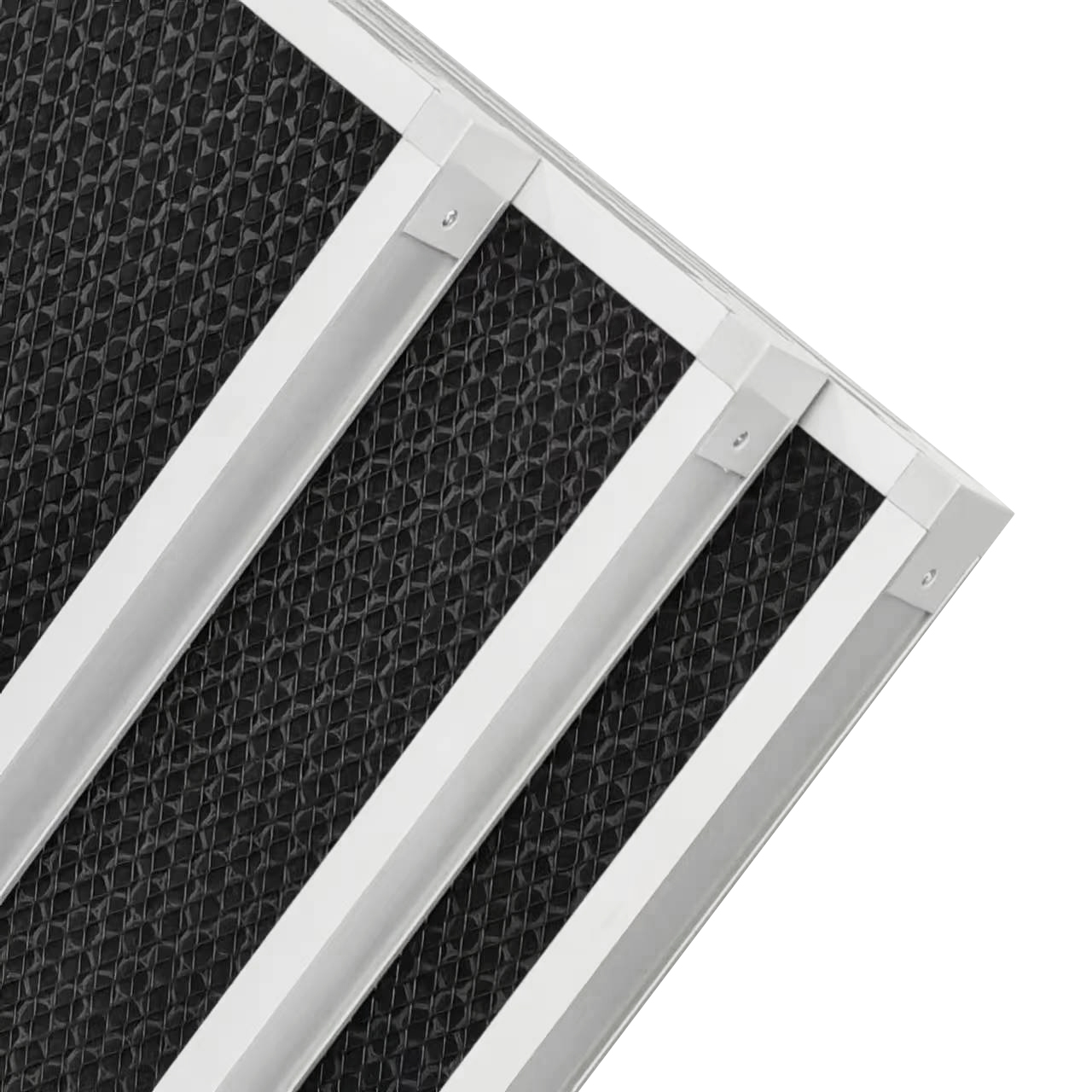

The structure of honeycomb activated carbon bricks is porous and honeycomb-shaped, with well-developed pores, large specific surface area, and low fluid resistance, resulting in excellent adsorption performance.

Application:

It is suitable for the treatment of organic waste gases with large air volume and low concentration (such as triphenyl waste gas), and is also applicable for indoor air purification, kitchen oil smoke air purification, odor removal of equipment such as refrigerators, air conditioners, and printers. Additionally, it can serve as a catalyst carrier. 应用场景2 拷贝 5

未标题-1 拷贝 2

Advantage:

●Strong adsorption capacity

●Remove odors and toxic and harmful gases

●Environmentally friendly and harmless

●Light weight and easy installation

●Low resistance, large ventilation

Specification:

Attributes		Value
Frame		Aluminum alloy. Galvanised sheet metal
Filter material		Faveolate carbon filter
Efficiency	EN779	G3
	ASHRAE	MERV5-MERV6
Temperature		≤70℃
Humidity		≤100% RH
Recommended Max. Final Pressureiz drop		≤ 180Pa
Thickness(mm)		8 / 10 / 15 / 22 / 46 / 50 / 90 / 95

Technical Data Sheet:

Model	Nominal Size (inches)	Actual Size (mm)			Airflow / initial resistance （m³/h / Pa）
Model	Nominal Size (inches)	Width	Heigh	Thickness	Airflow / initial resistance （m³/h / Pa）
DSMIC-C-P1145	24 x 24 x 4	594	594	95	5500/ 65
DSMIC-C-P1146	24 x 12 x 4	594	287	95	4700 / 65
DSMIC-C-P1147	24 x 20 x 4	594	492	95	4640 / 65
DSMIC-C-P1148	20 x 20 x 4	492	492	95	3860 / 65
DSMIC-C-P1149	20 x 16 x 4	492	391	95	3060 / 65
DSMIC-C-P1150	24 x 24 x 2	594	594	45	4100 / 70
DSMIC-C-P1151	24 x 12 x 2	594	287	45	2040 / 70
DSMIC-C-P1152	24 x 20 x 2	594	495	45	2400 / 70
DSMIC-C-P1153	24 x 18 x 2	594	445	45	3060 / 70
DSMIC-C-P1154	20 x 20 x 2	495	495	45	2580 / 70
DSMIC-C-P1155	20 x 18 x 2	495	445	45	2540 / 70
DSMIC-C-P1156	20 x 16 x 2	495	394	45	2240 / 70
DSMIC-C-P1157	20 x 12 x 2	495	287	45	2340 / 70
DSMIC-C-P1158	24 x 24 x 1	595	595	21	3900 / 85
DSMIC-C-P1159	24 x 12 x 1	595	287	21	1920 / 85
DSMIC-C-P1160	24 x 20 x 1	595	495	21	3270/ 85
DSMIC-C-P1161	20 x 20 x 1	495	495	21	2700 / 85
DSMIC-C-P1162	20 x 16 x 1	495	394	21	2180 / 85
