Cleanroom HEPA (70mm) H12

5 0 Reviews

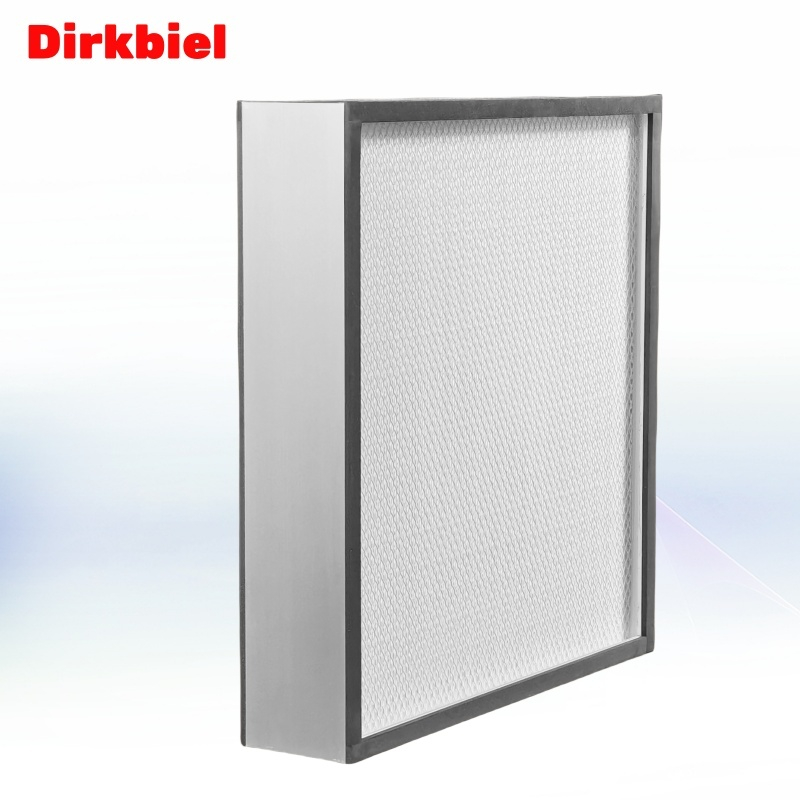

The high-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.3μm or below.

Applications: FFU, clean room, clean table, clean shed and other purification system end filtration device.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fibre filter paper

Filter Material separation: Hot melt

Efficiency:

H12(EN 1822)99.5% at MPPS(0.3um)

Temperature:≤80^o C

Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance 0.45 m/s 0.75 m/s 0.9 m/s （m3/h / Pa）			Efficiency EN1822
Model	Length	Width	Thickness	Filtration area （m2）				Efficiency EN1822
DFBI-H-P876	320	320	70	2.8	180/65	280/140	350/180	H12
DFBI-H-P877	475	475	70	6.4	300 /65	450/140	650/180	H12
DFBI-H-P878	484	484	70	6.8	380/85	550/140	800/180	H12
DFBI-H-P879	570	570	70	8.5	450/85	680/140	1000/180	H12
DFBI-H-P880	610	610	70	10.5	600/85	950/140	1150/180	H12
DFBI-H-P881	305	610	70	5.2	300/85	500/140	650/180	H12
DFBI-H-P882	630	630	70	11.4	650 /85	700/140	1200/180	H12
DFBI-H-P883	762	610	70	13.5	750 /85	1200/140	1500/180	H12
DFBI-H-P884	915	610	70	15.8	900 /85	1500/140	1800/180	H12
DFBI-H-P885	1170	570	70	19.5	1050 /85	1800/140	2100/180	H12
DFBI-H-P886	1170	870	70	29.7	1600 /85	2600/140	3100/180	H12
DFBI-H-P887	1220	610	70	20.5	1200 /85	2000/140	2400/180	H12
DFBI-H-P888	915	915	70	24.2	1300/85	2200/140	2700/180	H12
DFBI-H-P889	1170	1170	70	38.6.	2100 /85	3500/140	4000/180	H12

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335 Dirkbiel产品详情页

High Efficiency air filter ( HEPA) High efficiency air filter Panel air filter

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fibre filter paper

Filter Material separation: Hot melt

Efficiency:

H12(EN 1822)99.5% at MPPS(0.3um)

Temperature:≤80^o C

Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance 0.45 m/s 0.75 m/s 0.9 m/s （m3/h / Pa）			Efficiency EN1822
Model	Length	Width	Thickness	Filtration area （m2）				Efficiency EN1822
DFBI-H-P876	320	320	70	2.8	180/65	280/140	350/180	H12
DFBI-H-P877	475	475	70	6.4	300 /65	450/140	650/180	H12
DFBI-H-P878	484	484	70	6.8	380/85	550/140	800/180	H12
DFBI-H-P879	570	570	70	8.5	450/85	680/140	1000/180	H12
DFBI-H-P880	610	610	70	10.5	600/85	950/140	1150/180	H12
DFBI-H-P881	305	610	70	5.2	300/85	500/140	650/180	H12
DFBI-H-P882	630	630	70	11.4	650 /85	700/140	1200/180	H12
DFBI-H-P883	762	610	70	13.5	750 /85	1200/140	1500/180	H12
DFBI-H-P884	915	610	70	15.8	900 /85	1500/140	1800/180	H12
DFBI-H-P885	1170	570	70	19.5	1050 /85	1800/140	2100/180	H12
DFBI-H-P886	1170	870	70	29.7	1600 /85	2600/140	3100/180	H12
DFBI-H-P887	1220	610	70	20.5	1200 /85	2000/140	2400/180	H12
DFBI-H-P888	915	915	70	24.2	1300/85	2200/140	2700/180	H12
DFBI-H-P889	1170	1170	70	38.6.	2100 /85	3500/140	4000/180	H12
