Cleanroom HEPA (70mm) H14

5 0 Reviews

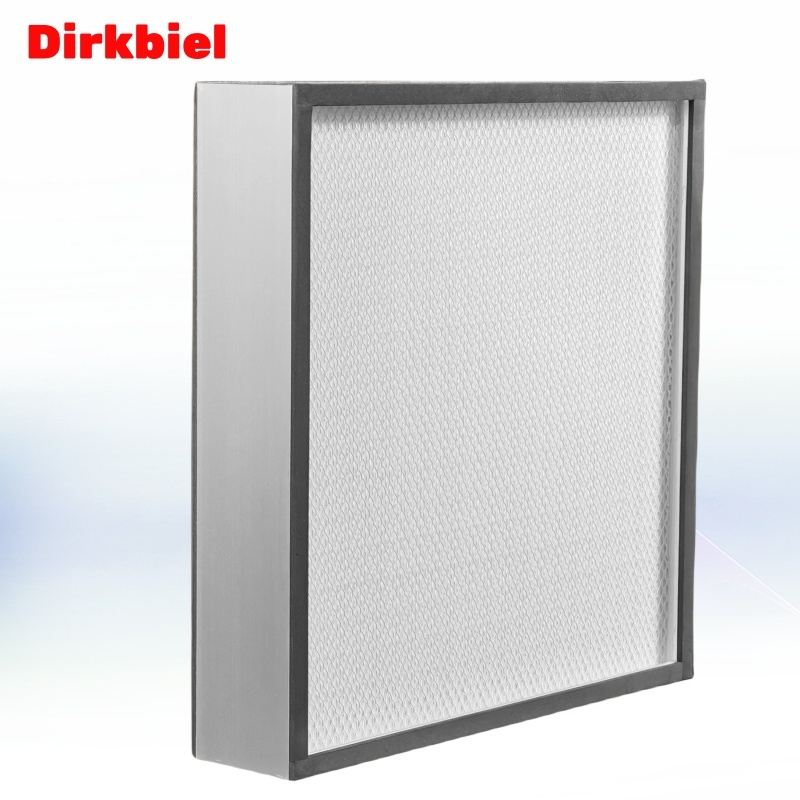

The high-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.3μm or below.

Applications: FFU, clean room, clean table, clean shed and other purification system end filtration device.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fibre filter paper

Filter Material separation: Hot melt

Efficiency:

H14(EN 1822)99.995% at MPPS(0.3um)

Temperature:≤80^o C Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance 0.45 m/s 0.65 m/s 0.75 m/s （m3/h / Pa）			Efficiency EN1822
Model	Length	Width	Thickness	Filtration area （m2）				Efficiency EN1822
DFBI-H-P862	320	320	70	2.8	180/125	280/190	350/230	H14
DFBI-H-P863	475	475	70	6.4	300 /125	450/190	650/230	H14
DFBI-H-P864	484	484	70	6.8	380/125	550/190	800/230	H14
DFBI-H-P865	570	570	70	8.5	450/125	680/190	1000/230	H14
DFBI-H-P866	610	610	70	10.5	600/125	950/190	1150/230	H14
DFBI-H-P867	305	610	70	5.2	300/125	500/190	650/230	H14
DFBI-H-P868	630	630	70	11.4	650 /125	700/190	1200/230	H14
DFBI-H-P869	762	610	70	13.5	750 /125	1200/190	1500/230	H14
DFBI-H-P870	915	610	70	15.8	900 /125	1500/190	1800/230	H14
DFBI-H-P871	1170	570	70	19.5	1050 /125	1800/190	2100/230	H14
DFBI-H-P872	1170	870	70	29.7	1600 /125	2600/190	3100/230	H14
DFBI-H-P873	1220	610	70	20.5	1200 /125	2000/190	2400/230	H14
DFBI-H-P874	915	915	70	24.2	1300/125	2200/190	2700/230	H14
DFBI-H-P875	1170	1170	70	38.6.	2100 /125	3500/190	4000/230	H14

屏幕截图 2023-11-16 104305 屏幕截图 2023-11-16 104335 Dirkbiel产品详情页
