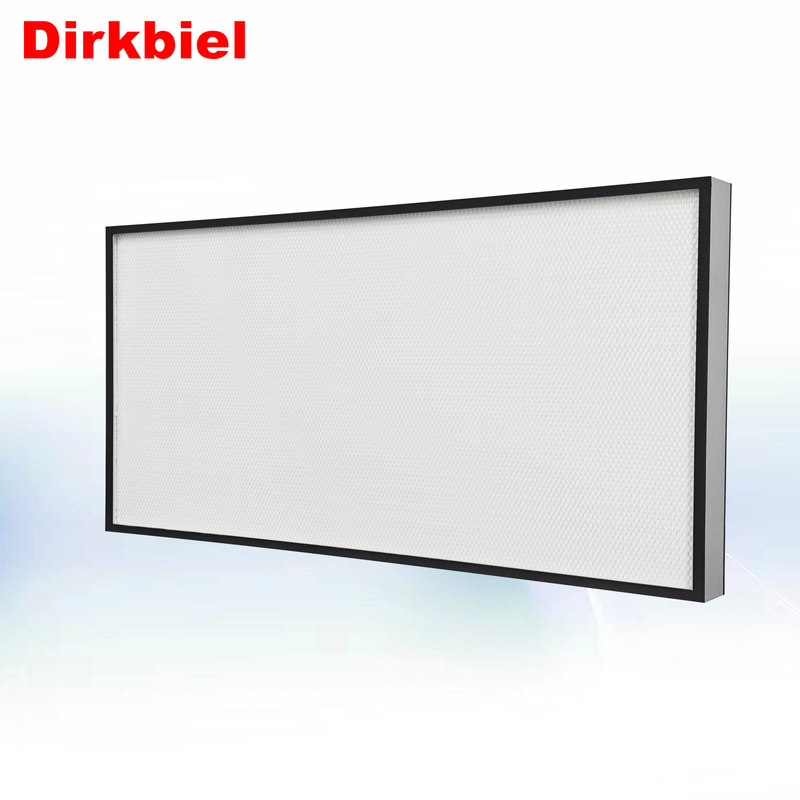

Cleanroom HEPA (80mm) H14

5 0 Reviews

Frame: Aluminum alloy;
Filter material:glass fibre filter paper；
Filter Material separation:Hot melt;
Efficiency:H14(EN 1822)99.995% at MPPS(0.3um)；
Temperature:≤80℃；
Humidity:≤80% RH；
Recommended final pressure drop: ≤580 Pa；

Quantity:
Availability:





Inquire Add to Basket

Brand:
Dirkbiel

IMG_20240415_081333 拷贝 2

Enkonduko:

The high-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.3µm or below.

Application:

FFU, clean room, clean table, clean shed and other purification system end filtration device 应用场景2 拷贝 5

IMG_20231216_175642 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●Long service life

Cleanroom HEPA hepa filter High Efficiency Particulate Air Filter High Purity (HEPA) Filtration HEPA Panel Filters

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822
Model	Width	Heigh	Thickness	Filtration area（㎡）	0.45 m/s	0.75 m/s	1.0 m/s	Efficiency EN1822
DFBI-H-P946	320	320	80	3.8	180/90	300/160	500/210	H14
DFBI-H-P947	475	475	80	6.8	300 /90	650/160	850/210	H14
DFBI-H-P948	484	484	80	7.3	380/90	850/160	1000/210	H14
DFBI-H-P949	570	570	80	9.6	450/90	700/160	1000/210	H14
DFBI-H-P950	610	610	80	14.5	600/90	1000/160	1150/210	H14
DFBI-H-P951	305	610	80	7.2	300/90	500/160	700/210	H14
DFBI-H-P952	630	630	80	15.4	650/90	1150/160	1500/210	H14
DFBI-H-P953	762	610	80	17.5	750/90	1200/160	1700/210	H14
DFBI-H-P954	915	610	80	20.7	950/90	1500/160	1800/210	H14
DFBI-H-P955	1170	570	80	24.5	1100/90	1800/160	2400/210	H14
DFBI-H-P956	1170	870	80	37.6	1650/90	2700/160	3600/210	H14
DFBI-H-P957	1220	610	80	27.3	1200/90	2000/160	2600/210	H14
DFBI-H-P958	915	915	80	30.8	1300/90	2200/160	3000/210	H14
DFBI-H-P959	1170	1170	80	50.5	2200/90	3500/160	4900/210	H14

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822
Model	Width	Heigh	Thickness	Filtration area（㎡）	0.45 m/s	0.75 m/s	1.0 m/s	Efficiency EN1822
DFBI-H-P946	320	320	80	3.8	180/90	300/160	500/210	H14
DFBI-H-P947	475	475	80	6.8	300 /90	650/160	850/210	H14
DFBI-H-P948	484	484	80	7.3	380/90	850/160	1000/210	H14
DFBI-H-P949	570	570	80	9.6	450/90	700/160	1000/210	H14
DFBI-H-P950	610	610	80	14.5	600/90	1000/160	1150/210	H14
DFBI-H-P951	305	610	80	7.2	300/90	500/160	700/210	H14
DFBI-H-P952	630	630	80	15.4	650/90	1150/160	1500/210	H14
DFBI-H-P953	762	610	80	17.5	750/90	1200/160	1700/210	H14
DFBI-H-P954	915	610	80	20.7	950/90	1500/160	1800/210	H14
DFBI-H-P955	1170	570	80	24.5	1100/90	1800/160	2400/210	H14
DFBI-H-P956	1170	870	80	37.6	1650/90	2700/160	3600/210	H14
DFBI-H-P957	1220	610	80	27.3	1200/90	2000/160	2600/210	H14
DFBI-H-P958	915	915	80	30.8	1300/90	2200/160	3000/210	H14
DFBI-H-P959	1170	1170	80	50.5	2200/90	3500/160	4900/210	H14

Cleanroom HEPA (80mm) H14

Quick Links

More Links

Product Category

Global operations center

Social Media

Northwest China

Chendu China

North America

Europe

Xi'an China

Attributes		Value
Frame		Aluminum alloy
Filter material		Glass fiber filter paper
Filter Material separation		Hot mel
Efficiency	EN 1822	H14
	ASHRAE	MERV18-19
Temperature		≤80℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa
