Cleanroom HEPA (90mm) H14

5 0 Reviews

Frame: Aluminum alloy;
Filter material:glass fibre filter paper；
Filter Material separation:Hot melt;
Efficiency:H14(EN 1822)99.995% at MPPS(0.3um)；
Temperature:≤80℃；
Humidity:≤80% RH；
Recommended final pressure drop: ≤580 Pa；

Quantity:
Availability:





Inquire Add to Basket

Brand:
Dirkbiel

IMG_20240415_081333 拷贝 2

Enkonduko:

The high-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.3µm or below.

Application:

FFU, clean room, clean table, clean shed and other purification system end filtration device 应用场景2 拷贝 5

IMG_20231216_175642 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●Long service life

Cleanroom HEPA hepa filter High Efficiency Particulate Air Filter High Purity (HEPA) Filtration HEPA Panel Filters

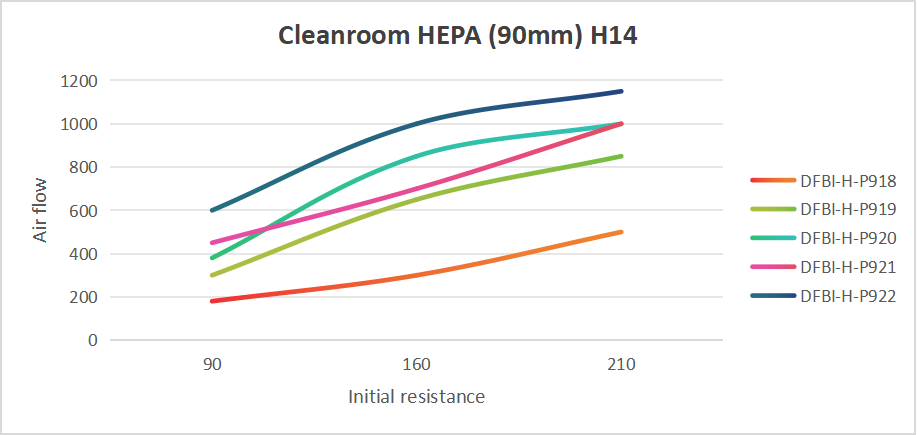

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822
Model	Width	Heigh	Thickness	Filtration area（㎡）	0.45 m/s	0.75 m/s	1.0 m/s	Efficiency EN1822
DFBI-H-P918	320	320	90	3.8	180/90	300/160	500/210	H14
DFBI-H-P919	475	475	90	6.8	300 /90	650/160	850/210	H14
DFBI-H-P920	484	484	90	7.3	380/90	850/160	1000/210	H14
DFBI-H-P921	570	570	90	9.6	450/90	700/160	1000/210	H14
DFBI-H-P922	610	610	90	14.5	600/90	1000/160	1150/210	H14
DFBI-H-P923	305	610	90	7.2	300/90	500/160	700/210	H14
DFBI-H-P924	630	630	90	15.4	650/90	1150/160	1500/210	H14
DFBI-H-P925	762	610	90	17.5	750/90	1200/160	1700/210	H14
DFBI-H-P926	915	610	90	20.7	950/90	1500/160	1800/210	H14
DFBI-H-P927	1170	570	90	24.5	1100/90	1800/160	2400/210	H14
DFBI-H-P928	1170	870	90	37.6	1650/90	2700/160	3600/210	H14
DFBI-H-P929	1220	610	90	27.3	1200/90	2000/160	2600/210	H14
DFBI-H-P930	915	915	90	30.8	1300/90	2200/160	3000/210	H14
DFBI-H-P931	1170	1170	90	50.5	2200/90	3500/160	4900/210	H14

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822
Model	Width	Heigh	Thickness	Filtration area（㎡）	0.45 m/s	0.75 m/s	1.0 m/s	Efficiency EN1822
DFBI-H-P918	320	320	90	3.8	180/90	300/160	500/210	H14
DFBI-H-P919	475	475	90	6.8	300 /90	650/160	850/210	H14
DFBI-H-P920	484	484	90	7.3	380/90	850/160	1000/210	H14
DFBI-H-P921	570	570	90	9.6	450/90	700/160	1000/210	H14
DFBI-H-P922	610	610	90	14.5	600/90	1000/160	1150/210	H14
DFBI-H-P923	305	610	90	7.2	300/90	500/160	700/210	H14
DFBI-H-P924	630	630	90	15.4	650/90	1150/160	1500/210	H14
DFBI-H-P925	762	610	90	17.5	750/90	1200/160	1700/210	H14
DFBI-H-P926	915	610	90	20.7	950/90	1500/160	1800/210	H14
DFBI-H-P927	1170	570	90	24.5	1100/90	1800/160	2400/210	H14
DFBI-H-P928	1170	870	90	37.6	1650/90	2700/160	3600/210	H14
DFBI-H-P929	1220	610	90	27.3	1200/90	2000/160	2600/210	H14
DFBI-H-P930	915	915	90	30.8	1300/90	2200/160	3000/210	H14
DFBI-H-P931	1170	1170	90	50.5	2200/90	3500/160	4900/210	H14

Cleanroom HEPA (90mm) H14

Quick Links

More Links

Product Category

Global operations center

Social Media

Northwest China

Chendu China

North America

Europe

Xi'an China

Attributes		Value
Frame		Aluminum alloy
Filter material		Glass fiber filter paper
Filter Material separation		Hot mel
Efficiency	EN 1822	H14
	ASHRAE	MERV18-19
Temperature		≤80℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa
