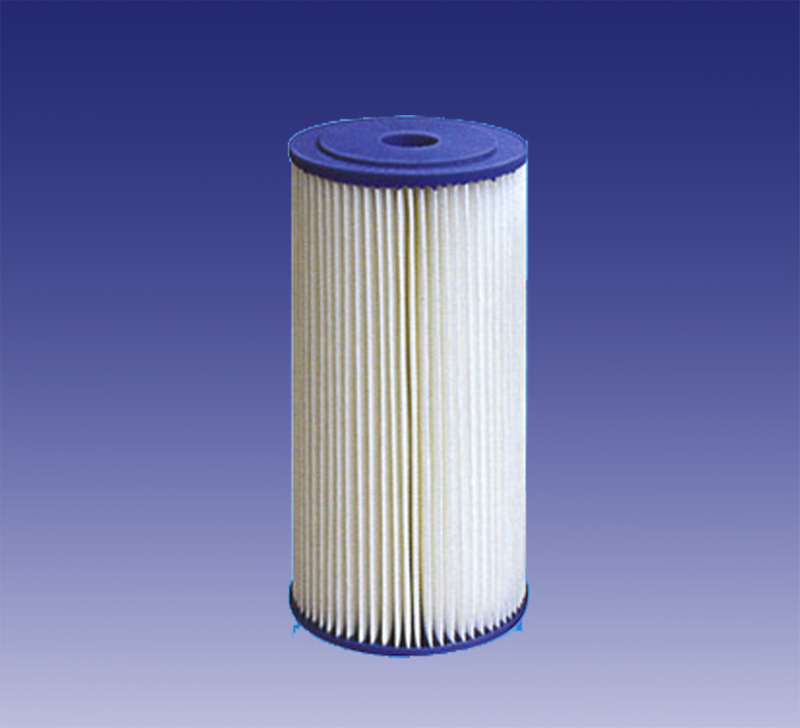

Dirkbiel Big Fat Paper Folding Filter Element 10 Inches

5 0 Reviews

Filter element product introduction
The PP microporous folding filter element consists of an fiber film and a non-woven fabric or (screen) inner and outer support layer。The filter shell, center rod and end cover are processed by hot melt welding technology, Type without any adhesive, no leakage, no secondary pollution.
Features：
*Excellent chemical compatibility, suitable for filtering strong acids, alkalis and organic solvents; *The filter membrane is folding deep filtration, and the membrane filtration area is large;
*Low pressure difference, strong contaminant capacity, long service life;
*A wide range of filtering accuracy can be selected;

Quantity:
Availability:





Inquire Add to Basket

filter element Security water filter Folding Filter Element

Product Description

Filter element application field：

Pharmaceutical industry: pre-filtration of various antibiotics and other pharmaceutical liquids ;
Food and beverage industry: wine, mineral water, drinking water filtration ;
Petroleum industry: oilfield water injection filtration ;
Electronics industry: high purity water pre-filtration;
Chemical industry: filtration of various organic solvents, acids and lye;

Filter element product technical performance：
filtering precision：0.1um 0.2um 0.45um 1um 3um 5um 10um 20um 30um 50um

Cartridge length：5” 10” 20” 30” 40”
Filter diameter: 69mm 83mm 131mm
Inner diameter of filter element：28mm ~40mm
The suitable PH value：1-12
Top working temperature：≤80℃ 0.1Mpa
Top operation pressure：0.3Mpa 50℃
Maximum reverse pressure difference：0.2Mpa 25℃
Maximum disinfection temperature：120℃
