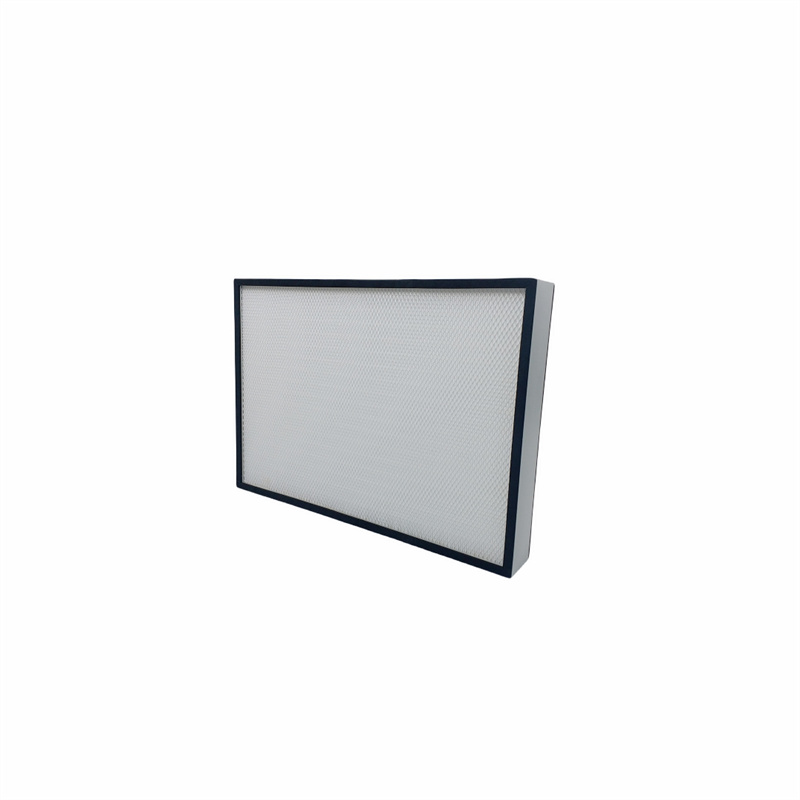

Specification
Frame: Aluminum alloy; Filter material: glass fibre filter paper
Filter Material separation: Hot melt
Efficiency:
H14(EN 1822)99.995% at MPPS(0.3um)
Temperature:≤80o C
Humidity:≤80% RH
Recommended final pressure drop : ≤580 Pa
Model No. | Actual Size (mm) | Filtration area （m2） | Air flow /initial resistance （m3/h / Pa） | Efficiency EN1822 | ||
Length | Width | Thickness | ||||
DHON-H-P821 | 320 | 320 | 150 | 3.5 | 350 / 260 | H14 |
DHON-H-P822 | 484 | 484 | 150 | 8.5 | 850 /260 | H14 |
DHON-H-P823 | 610 | 610 | 150 | 13.6 | 1450 /260 | H14 |
DHON-H-P824 | 630 | 630 | 150 | 14.8 | 1600/260 | H14 |
DHON-H-P825 | 762 | 610 | 150 | 17.6 | 1800 /260 | H14 |
DHON-H-P826 | 915 | 610 | 150 | 22.5 | 2150 /260 | H14 |
DHON-H-P827 | 1220 | 610 | 150 | 27 | 2850 /260 | H14 |
DHON-H-P828 | 575 | 575 | 150 | 9.5 | 1000 /260 | H14 |
DHON-H-P829 | 457 | 457 | 150 | 7.9 | 700/260 | H14 |
