Specification

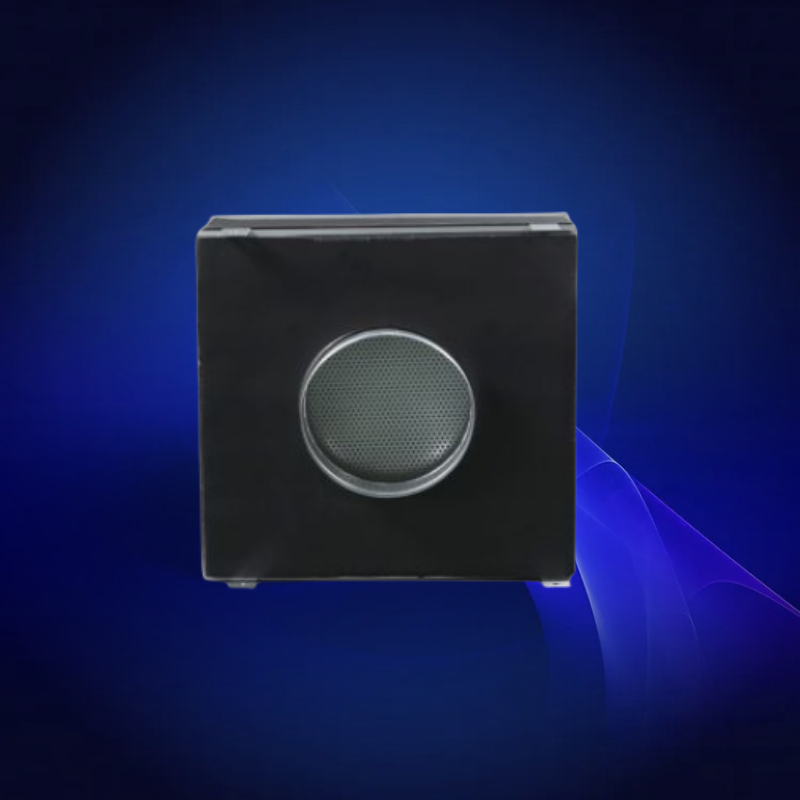

Air inlet dimensions: Φ14＂(350mm) ;Φ12＂(300mm); Φ10＂(250mm)
Frame: Aluminum alloy+ Galvanized sheet metal ; Filter material: glass fibre filter paper
Filter Material separation: Hot melt
Filter paper folding high:55mm
Efficiency:
U15(EN 1822)99.9995% at MPPS(0.12um)
Temperature:≤80o C
Humidity:≤80% RH
Recommended final pressure drop: ≤580 Pa
Model No. | Actual Size (mm) | Filtration area （m2） | Air flow /initial resistance 0.3 m/s 0.35 m/s 0.45 m/s （m3/h / Pa） | Efficiency EN1822 | ||||
Length | Width | Thickness | ||||||
DHITA -U-P1285 | 610 | 610 | 150 | 12.8 | 450/100 | 550/120 | 700/140 | U15 |
DHITA -U-P1286 | 630 | 630 | 150 | 13.7 | 550/100 | 680/120 5 | 800/140 | U15 |
DHITA -U-P1287 | 762 | 610 | 150 | 16.2 | 750/100 | 1200/120 | 1500/140 | U15 |
DHITA -U-P1288 | 915 | 610 | 150 | 19.5 | 900/100 | 1500/120 | 1800/140 | U15 |
DHITA -U-P1289 | 1170 | 570 | 150 | 23.4 | 650/100 | 1000/120 5 | 1450/140 | U15 |
DHITA -U-P1290 | 1170 | 870 | 150 | 36.1 | 1200/100 | 1500/120 | 1750/140 | U15 |
DHITA -U-P1291 | 1220 | 610 | 150 | 26 | 900/100 | 1000/120 5 | 1350/140 | U15 |
DHITA -U-P1292 | 1170 | 1170 | 150 | 48.8 | 1500 /100 | 1800/120 | 2350/140 | U15 |
DHITA -U-P1293 | 1220 | 915 | 150 | 39.6 | 1450 /100 | 1750 /120 | 2050 /140 | U15 |
