| Quantity: | |
|---|---|
Applications: AHU. MAU. Coating workshop.
Specification

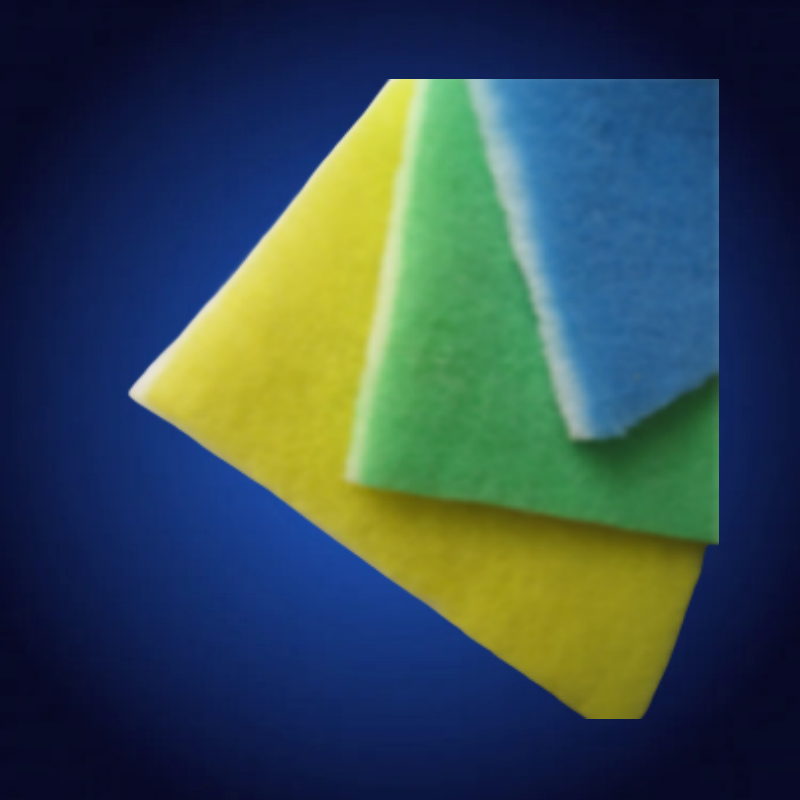

Filter material: Synthetic fibre
Efficiency:
G4 (EN 779):Avg.heavy efficiency 90-95%
Temperature:≤130o C
Humidity:≤100% RH
Recommended final pressure drop : ≤250 Pa
Model No. | Length (mm) | width (mm) | Thickness (mm) | Weight: (g/m2) | wind speed (m/s) | dust capacity (g/m2) | Maximum air flow (m3/h) | initial resistance （Pa） | Efficiency EN779 |
DABBC-C-P1400 | 20000 | 2000- | 5-20 | 250 | 0.4 | 315 | 1860 | 18~250 | G4 |
Applications: AHU. MAU. Coating workshop.
Specification
Filter material: Synthetic fibre
Efficiency:
G4 (EN 779):Avg.heavy efficiency 90-95%
Temperature:≤130o C
Humidity:≤100% RH
Recommended final pressure drop : ≤250 Pa
Model No. | Length (mm) | width (mm) | Thickness (mm) | Weight: (g/m2) | wind speed (m/s) | dust capacity (g/m2) | Maximum air flow (m3/h) | initial resistance （Pa） | Efficiency EN779 |
DABBC-C-P1400 | 20000 | 2000- | 5-20 | 250 | 0.4 | 315 | 1860 | 18~250 | G4 |
