Specification

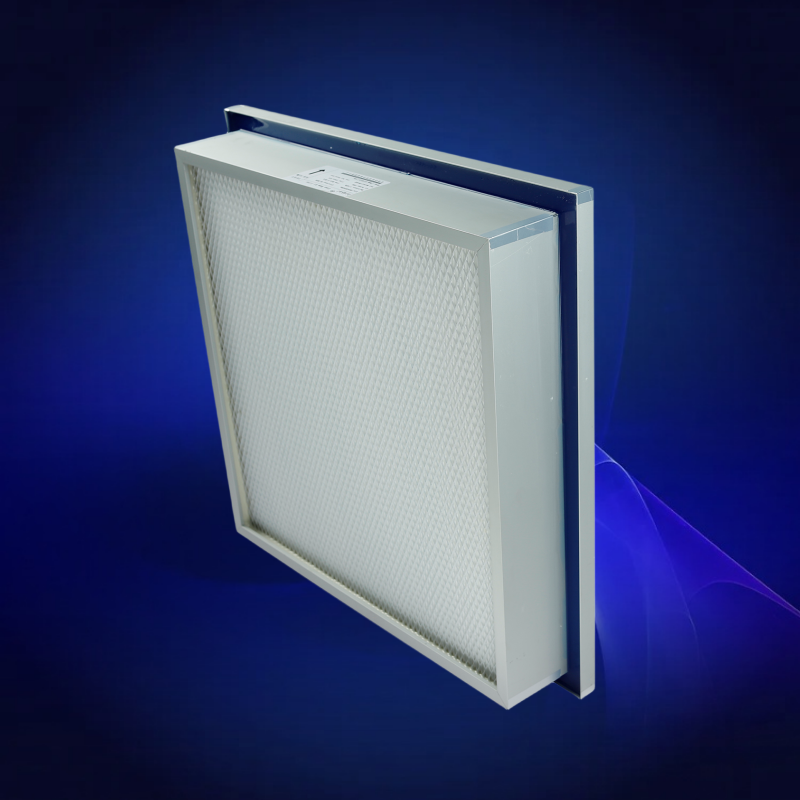

Frame: Aluminum alloy; Filter material: glass fibre filter paper
Filter Material separation: Hot melt
Efficiency:
H13(EN 1822)99.99% at MPPS(0.3um)
Temperature:≤80o C
Humidity:≤80% RH
Recommended final pressure drop : ≤580 Pa
Groove width W:13mm
Model No. | Actual Size (mm) | Filtration area （m2） | Air flow /initial resistance 0.45 m/s 0.75 m/s 1.0 m/s （m3/h / Pa） | Efficiency EN1822 | ||||
Length | Width | Thickness | ||||||
DMAC-H-P1064 | 320 | 320 | 93 | 3.8 | 180/90 | 300/145 | 500/200 | H13 |
DMAC-H-P1065 | 475 | 475 | 93 | 6.8 | 300 /90 | 650/145 | 850/200 | H13 |
DMAC-H-P1066 | 484 | 484 | 93 | 7.3 | 380/90 | 850/145 | 1000/200 | H13 |
DMAC-H-P1067 | 570 | 570 | 93 | 9.6 | 450/90 | 700/145 5 | 1000/200 | H13 |
DMAC-H-P1068 | 610 | 610 | 93 | 14.5 | 600/90 | 1000/145 | 1150/200 | H13 |
DMAC-H-P1069 | 305 | 610 | 93 | 7.2 | 300/90 | 500/145 | 700/200 | H13 |
DMAC-H-P1070 | 630 | 630 | 93 | 15.4 | 650/90 | 1150/145 5 | 1500/200 | H13 |
DMAC-H-P1071 | 762 | 610 | 93 | 17.5 | 750 /90 | 1200/145 | 1700/200 | H13 |
DMAC-H-P1072 | 915 | 610 | 93 | 20.7 | 950 /90 | 1500/145 | 1800/200 | H13 |
DMAC-H-P1073 | 1170 | 570 | 93 | 24.5 | 1100 /90 | 1800/145 5 | 2400/200 | H13 |
DMAC-H-P1074 | 1170 | 870 | 93 | 37.6 | 1650 /90 | 2700/145 | 3600/200 | H13 |
DMAC-H-P1075 | 1220 | 610 | 93 | 27.3 | 1200 /90 | 2000/145 5 | 2600/200 | H13 |
DMAC-H-P1076 | 915 | 915 | 93 | 30.8 | 1300/90 | 2200/145 | 3000/200 | H13 |
DMAC-H-P1077 | 1170 | 1170 | 93 | 50.5 | 2200 /90 | 3500/145 | 4900/200 | H13 |
