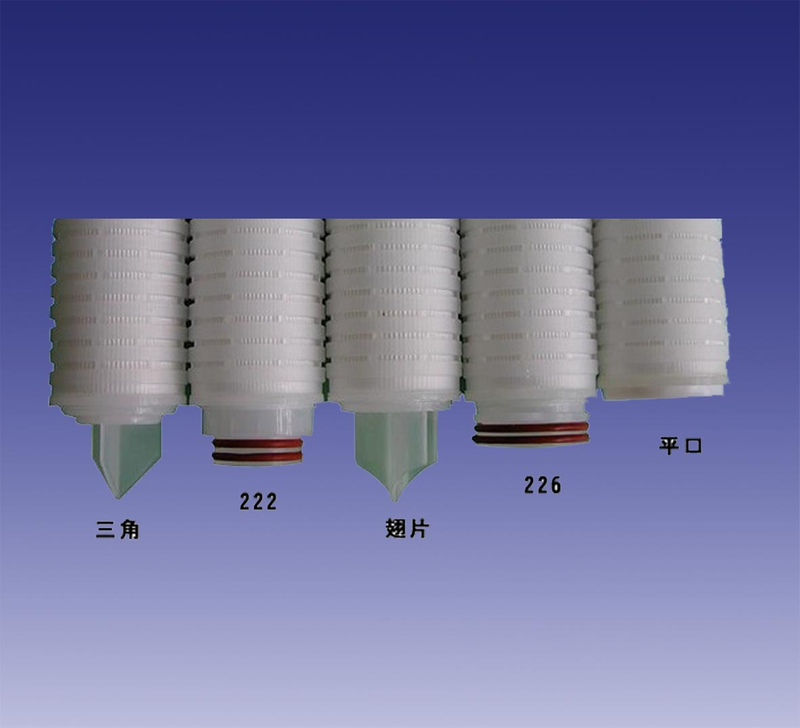

Microporous Membrane Folding Filter Element

5 0 Reviews

PP microporous folding filter element is folded by the ene fiber film and non-woven fabric or (silk screen) inner and outer support layer, the filter shell, center rod and end cover are processed by hot melt welding technology, without any adhesive, no leakage, no secondary pollution.
Filter element product characteristics：
Excellent chemical compatibility, suitable for filtering strong acids, alkalis and organic solvents;
The filter membrane is folding deep filtration, and the membrane filtration area is large;
Low pressure difference, strong contaminant capacity, long service life, wide filtration accuracy can be selected;


Availability:

Product Description

Filter element application field：

Pharmaceutical industry: pre-filtration of various antibiotics and other pharmaceutical liquids;
Food and beverage industry: wine, mineral water, drinking water filtration;
Petroleum industry: oilfield water injection filtration;
Electronics industry: high purity water pre-filtration;
Chemical industry: filtration of various organic solvents, acids and lye;

Filter element product technical performance：
*Filtering precision：0.1um 0.2um 0.45um 1um 3um 5um 10um 20um 30um 50um
*Cartridge length：5” 10” 20” 30” 40”
*Filter diameter: 69mm 83mm 131mm
*Inner diameter of filter element：28mm ~40mm
*PH：1-12
*Top working temperature：≤80℃ 0.1Mpa
*Top working pressure：0.3Mpa 50℃
*Maximum reverse pressure difference：0.2Mpa 25℃
*Maximum disinfection temperature：120℃
