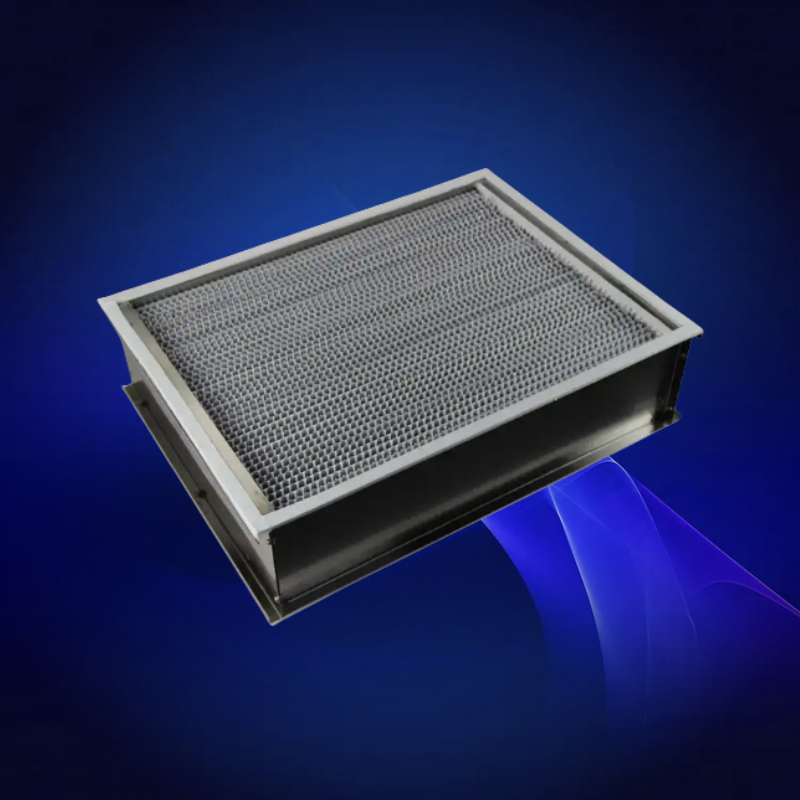

Specification
Frame: Aluminum alloy. Galvanized sheet metal; Filter material: Special glass fibre filter paper
Filter Material separation: Aluminum foil.
Efficiency:
H13(EN 1822)99.99% at MPPS(0.3um)
Temperature:≤100o C
Humidity:≤100% RH
Recommended final pressure drop: ≤580 Pa
Model No. | Actual Size (mm) | Filtration area （m2） | Air flow /initial resistance （m3/h / Pa） | Efficiency EN1822 | ||
Length | Width | Thickness | ||||
DMAI-H-P655 | 320 | 320 | 150 | 2.9 | 250 / 200 | H13 |
DMAI-H-P656 | 484 | 484 | 150 | 8.2 | 450 /200 | H13 |
DMAI-H-P657 | 610 | 610 | 150 | 11.8 | 850 /200 | H13 |
DMAI-H-P658 | 630 | 630 | 150 | 14.5 | 1000/200 | H13 |
DMAI-H-P659 | 762 | 610 | 150 | 18.6 | 1500 /200 | H13 |
DMAI-H-P660 | 915 | 610 | 150 | 19.4 | 1800 /200 | H13 |
DMAI-H-P661 | 1220 | 610 | 150 | 26.5 | 2000 /200 | H13 |
DMAI-H-P662 | 1260 | 630 | 150 | 28.8 | 2350 /200 | H13 |
DMAI-H-P663 | 320 | 320 | 220 | 7.2 | 400 / 200 | H13 |
DMAI-H-P664 | 484 | 484 | 220 | 13.4 | 1000/200 | H13 |
DMAI-H-P665 | 610 | 610 | 220 | 15.2 | 1650 /200 | H13 |
DMAI-H-P666 | 630 | 630 | 220 | 18.6 | 2500 / 200 | H13 |
DMAI-H-P667 | 762 | 610 | 220 | 23.9 | 2000 /200 | H13 |
DMAI-H-P668 | 915 | 610 | 220 | 27.5 | 1250 / 200 | H13 |
DMAI-H-P669 | 1220 | 610 | 220 | 32.5 | 2500/ 200 | H13 |
DMAI-H-P670 | 1260 | 630 | 220 | 36.8 | 3000/ 200 | H13 |
DMAI-H-P671 | 968 | 484 | 220 | 18.5 | 2000/ 200 | H13 |
DMAI-H-P672 | 762 | 484 | 220 | 21.3 | 1500/ 200 | H13 |
