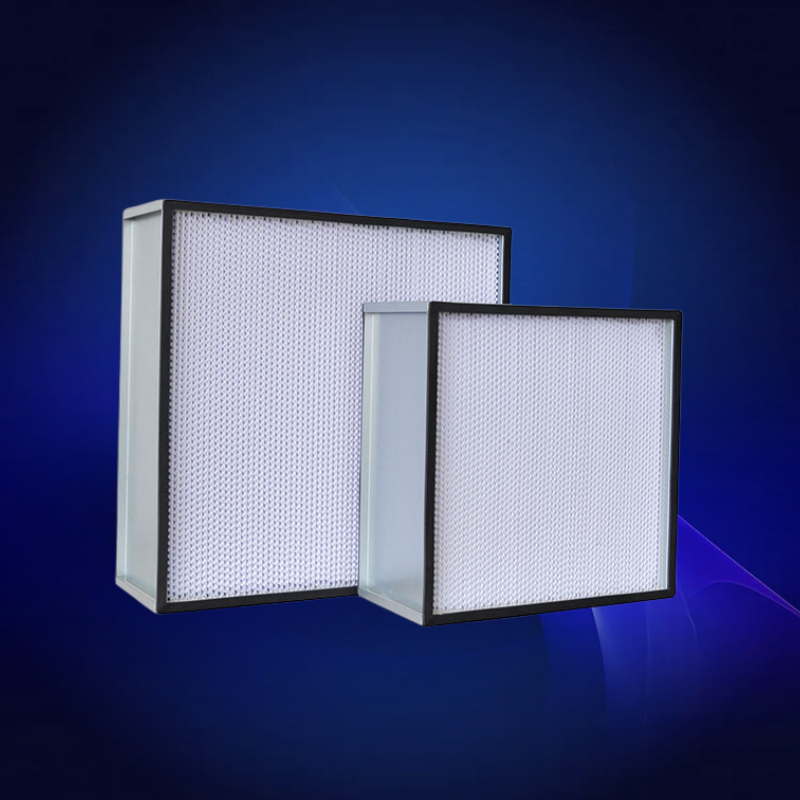

Applications: Install in the clean room system terminal HEPA box
Specification
Frame: Aluminum alloy. Galvanized sheet metal; Filter material: Glass fiber filter paper
Filter Material separation: Paper; Aluminum foil.
Efficiency:
H13(EN 1822)99.99% at MPPS(0.3um)
Temperature:≤80o C
Humidity:≤80% RH
Recommended final pressure drop: ≤580 Pa
Model No. | Actual Size (mm) | Filtration area （m2） | Air flow /initial resistance （m3/h / Pa） | Efficiency EN1822 | ||
Length | Width | Thickness | ||||
DMAI-H-P619 | 320 | 320 | 150 | 2.9 | 250 / 190 | H13 |
DMAI-H-P620 | 484 | 484 | 150 | 8.2 | 450 /190 | H13 |
DMAI-H-P621 | 610 | 610 | 150 | 11.8 | 850 /190 | H13 |
DMAI-H-P622 | 630 | 630 | 150 | 14.5 | 1000/190 | H13 |
DMAI-H-P623 | 762 | 610 | 150 | 18.6 | 1500 /190 | H13 |
DMAI-H-P624 | 915 | 610 | 150 | 19.4 | 1800 /190 | H13 |
DMAI-H-P625 | 1220 | 610 | 150 | 26.5 | 2000 /190 | H13 |
DMAI-H-P626 | 1260 | 630 | 150 | 28.8 | 2350 /190 | H13 |
DMAI-H-P627 | 320 | 320 | 220 | 7.2 | 400 / 190 | H13 |
DMAI-H-P628 | 484 | 484 | 220 | 13.4 | 1000/190 | H13 |
DMAI-H-P629 | 610 | 610 | 220 | 15.2 | 1650 / 190 | H13 |
DMAI-H-P630 | 630 | 630 | 220 | 18.6 | 2500 / 190 | H13 |
DMAI-H-P631 | 762 | 610 | 220 | 23.9 | 2000 /190 | H13 |
DMAI-H-P632 | 915 | 610 | 220 | 27.5 | 1250 / 190 | H13 |
DMAI-H-P633 | 1220 | 610 | 220 | 32.5 | 2500/ 190 | H13 |
DMAI-H-P634 | 1260 | 630 | 220 | 36.8 | 3000/ 190 | H13 |
DMAI-H-P635 | 968 | 484 | 220 | 18.5 | 2000/ 190 | H13 |
DMAI-H-P636 | 762 | 484 | 220 | 21.3 | 1500/ 190 | H13 |
