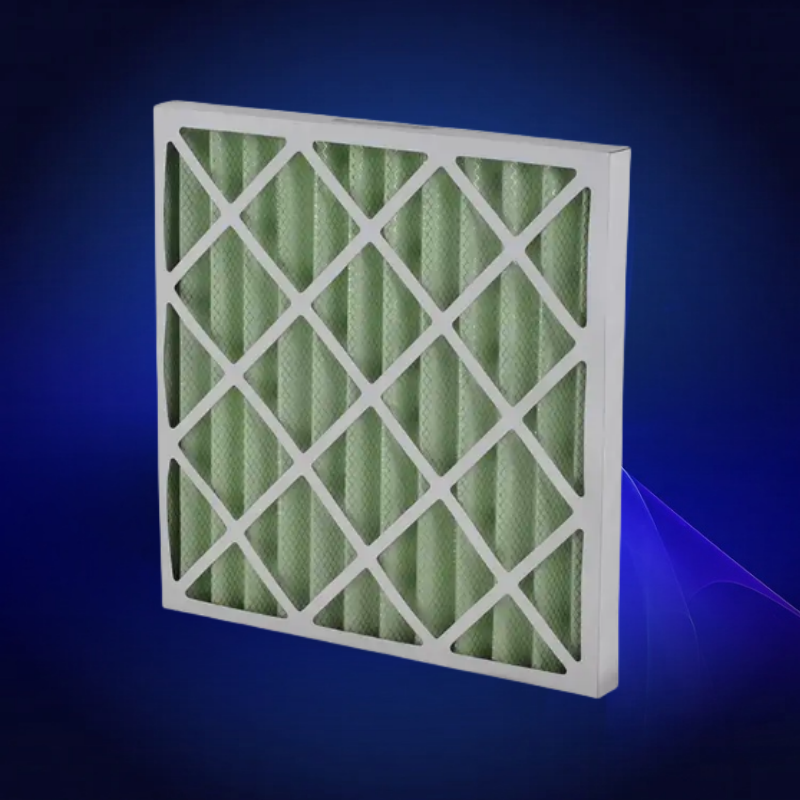

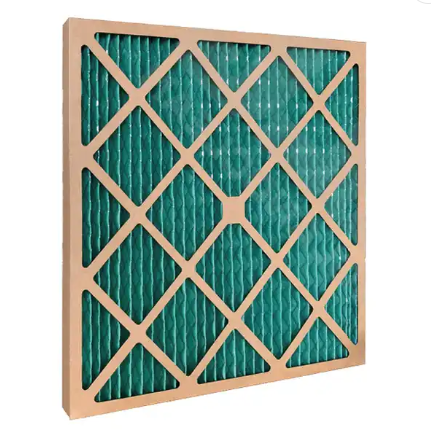

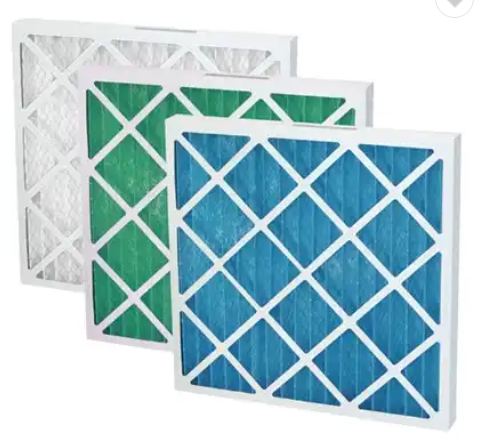

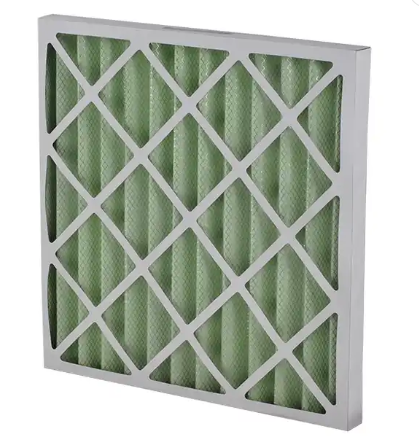

Specification:
Frame: Rigid high wet-strength card board
Media: Non-woven reinforced cotton&synthetic media
Welded aluminum anti-corrosive.
Efficiency: G4 (EN 779) /25%-30% ASHRAE 52/76
> 95% @ (≥5um)
Fire retardant grade: UL-2 listed. (UL 900)
Humidity: ≤ 100% RH Recommended Max. Final Pressure drop: ≤ 250Pa
Model No. | Nominal Size (inches) | Actual Size (mm) | Filtration area （m2) | Air flow /initial resistance （m3/h / Pa) | Fold number | |||
Length | Width | Thickness | ||||||
DPF-A-P1 | 24 x 24 x 4 | 594 | 594 | 95 | 7.2 | 2790 / 20 | 5500/ 65 | 18 |
DPF-A-P2 | 24 x 12 x 4 | 594 | 287 | 95 | 2.16 | 2350/ 20 | 4700 / 65 | |
DPF-A-P3 | 24 x 20 x 4 | 594 | 492 | 95 | 3.6 | 2320 / 20 | 4640 / 65 | |
DPF-A-P4 | 20 x 20 x 4 | 492 | 492 | 95 | 3.06 | 1930 / 20 | 3860 / 65 | |
DPF-A-P5 | 20 x 16 x 4 | 492 | 391 | 95 | 2.52 | 1530/ 20 | 3060 / 65 | |
DPF-A-P6 | 25 x 20 x 4 | 619 | 492 | 95 | 3.78 | 2430 / 20 | 4860 / 65 | |
DPF-A-P7 | 25 x 25 x 4 | 619 | 619 | 95 | 4.86 | 3060 / 20 | 6120 / 65 | |
DPF-B-P8 | 24 x 24 x 2 | 594 | 594 | 45 | 2.16 | 2050 / 20 | 4100 / 70 | 20 |
DPF-B-P9 | 24 x 12 x 2 | 594 | 287 | 45 | 1.08 | 1020 / 20 | 2040 / 70 | |
DPF-B-P10 | 24 x 20 x 2 | 594 | 495 | 45 | 1.8 | 1700 / 20 | 2400 / 70 | |
DPF-B-P11 | 24 x 18 x 2 | 594 | 445 | 45 | 1.62 | 1530/ 20 | 3060 / 70 | |
DPF-B-P12 | 20 x 20 x 2 | 495 | 495 | 45 | 1.46 | 1290 / 20 | 2580 / 70 | |
DPF-B-P13 | 20 x 18 x 2 | 495 | 445 | 45 | 1.31 | 1270 / 20 | 2540 / 70 | |
DPF-B-P14 | 20 x 16 x 2 | 495 | 394 | 45 | 1.26 | 1120/ 20 | 2240 / 70 | |
DPF-B-P15 | 20 x 12 x 2 | 495 | 287 | 45 | 0.9 | 1170/ 20 | 2340 / 70 | |
DPF-B-P16 | 25 x 20 x 2 | 622 | 495 | 45 | 1.98 | 1780 / 20 | 3560 / 70 | |
DPF-B-P17 | 25 x 18 x 2 | 622 | 445 | 45 | 1.62 | 1600 / 20 | 3200 / 70 | |
DPF-B-P18 | 25 x 16 x 2 | 622 | 394 | 45 | 1.44 | 1420 / 20 | 2840 / 70 | |
DPF-C-P19 | 24 x 24 x 1 | 595 | 595 | 21 | 1.56 | 1950 / 20 | 3900 / 65 | 28 |
DPF-C-P20 | 24 x 12 x 1 | 595 | 287 | 21 | 0.54 | 960/ 20 | 1920 / 65 | |
DPF-C-P21 | 24 x 20 x 1 | 595 | 495 | 21 | 1.3 | 1630/ 20 | 3270/ 65 | |
DPF-C-P22 | 20 x 20 x 1 | 495 | 495 | 21 | 1.04 | 1350/ 20 | 2700 / 65 | |
DPF-C-P23 | 20 x 16 x 1 | 495 | 394 | 21 | 0.78 | 1090 / 20 | 2180 / 65 | |
