Gas-Liquid Filter

5 0 Reviews

Filter material:SUS304/SUS316 Stainless Steel;

Frame:Stainless steel wire mesh;

Mesh sizes:2×4mm, 4×5mm, 7×12mm;

Standard:HG/T21618-1998: SP, DP, HP;

Quantity:
Availability:





Inquire Add to Basket

微信图片_202505231003264 拷贝

Enkonduko:

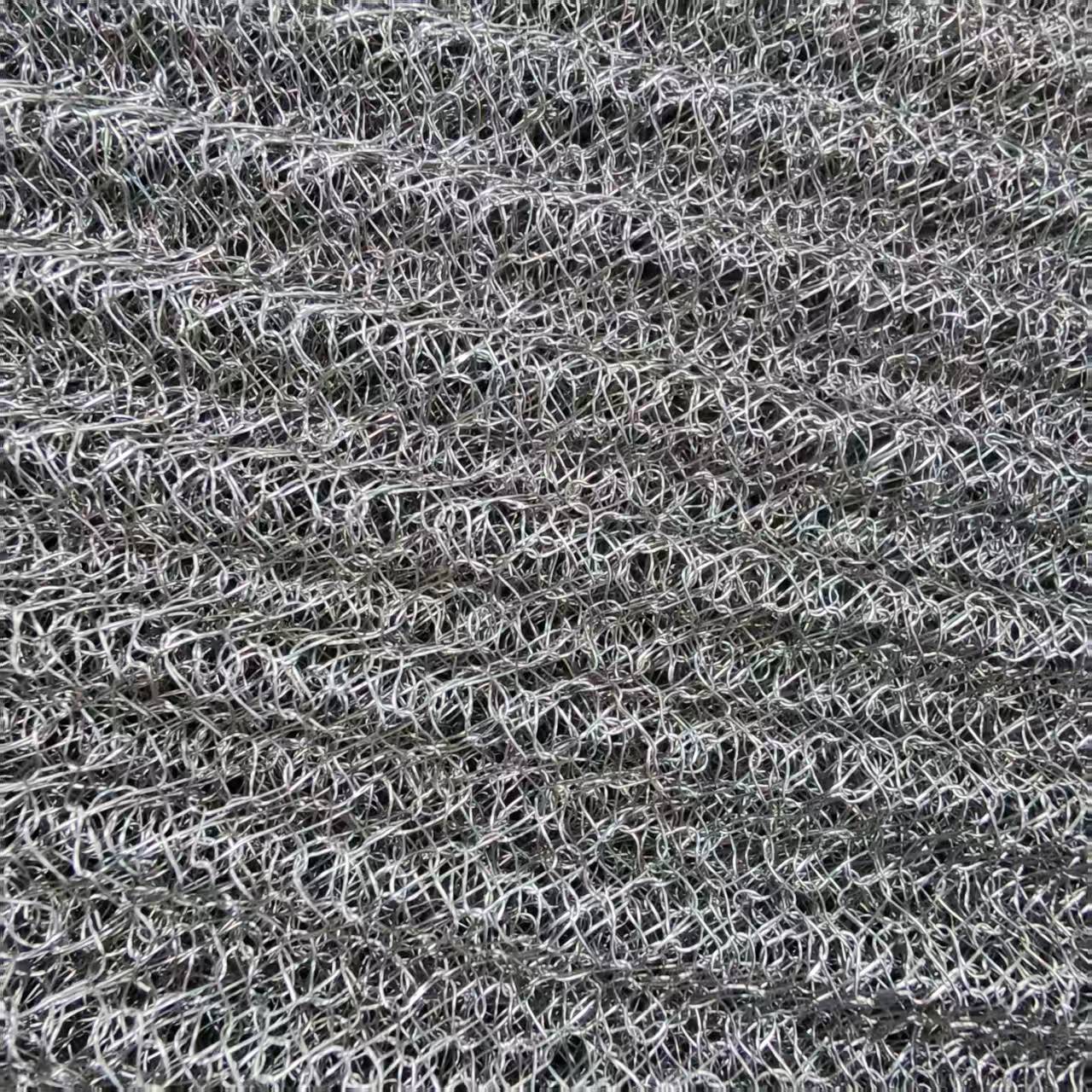

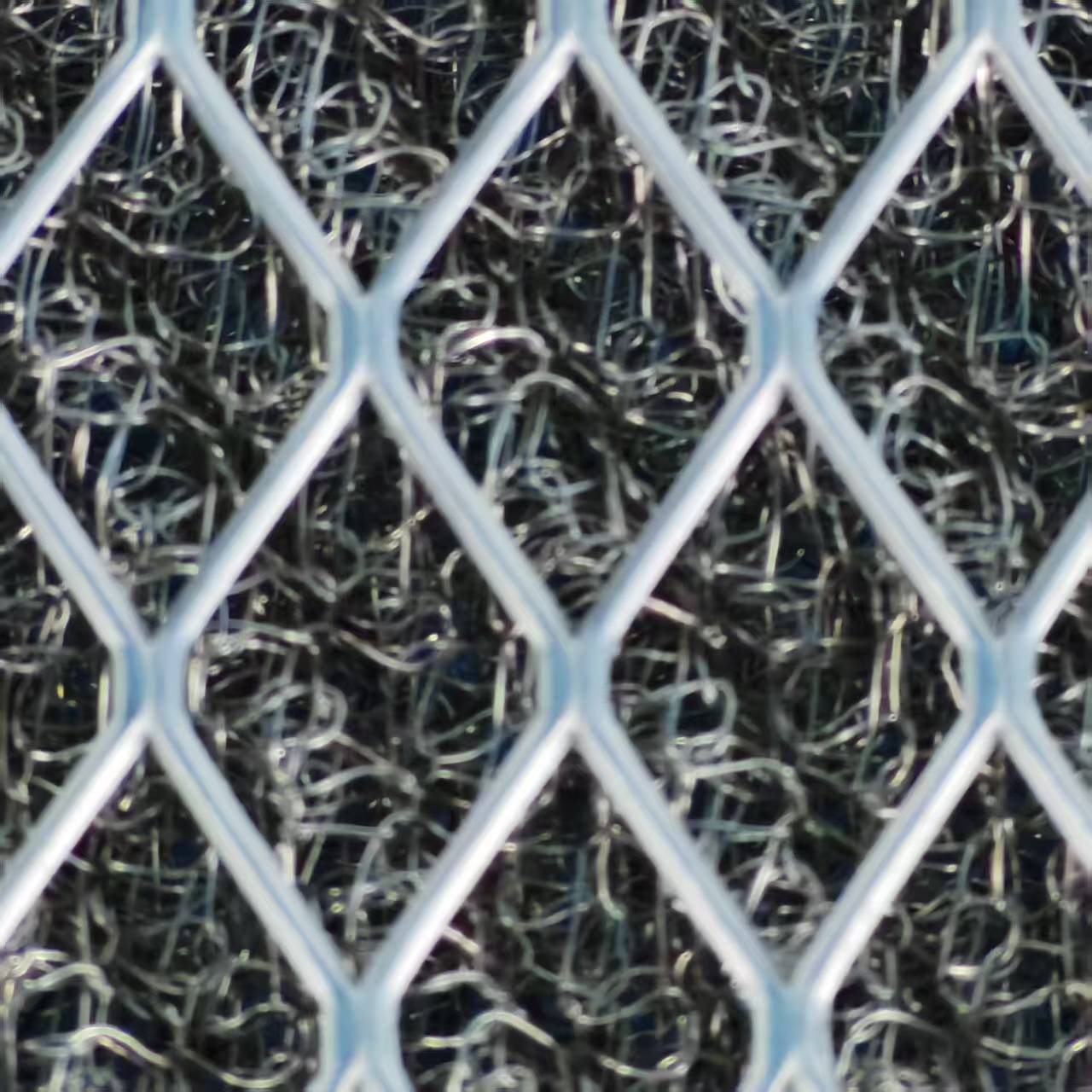

The filter material is woven from multi-layered SUS304/SUS316 stainless steel wire mesh, featuring acid/alkali resistance, high-temperature resistance, gas-liquid separation, air-water separation, oil-gas separation, high filtration precision, and high airflow capacity. It effectively reduces mechanical equipment operating costs and improves working conditions.

Application:

1.Petroleum, Chemical, Light Industry, Pharmaceutical, Metallurgy, Aerospace, Marine, Environmental Engineering.

2.Machinery Industry: Used in CNC equipment, compressor oil-gas separators, gas-liquid separators, oil-water separators, and air purifiers.

3.Marine Industry: Applied in marine oil-water separators, desalination systems, and oil-gas separators.

4.Food & Beverage, Biopharmaceuticals: Used for filtration, screening, catalyst processes, and gas-mist separation during distillation/evaporation/absorption to ensure air circulation.

气液过滤器301英拷贝

Gas-Liquid Filter Gas-Liquid Filter Mesh Gas-Liquid Separator Demister Pad Mist Eliminator Foam Trapping Mesh Petrochemical Oil-Gas Separation Marine Oil-Water Separator Mesh Compressor Gas-Liquid Separator Biopharmaceutical Distillation Separation

SP Standard-Type Filter Technical Parameters：
Wire Diameter dw(㎜）		Mesh Width Tolerance （㎜）	Bulk Density ρ（㎏/m³）	Specific Surface Area α（㎡/m³）		Porosity ε
Flat Wire	Round Wire	±20	150	Flat Wire	Round Wire	0.981
0.1×0.4	0.23			475	320

DP High-Efficiency Filter Technical Parameters：
Wire Diameter dw(㎜）		Mesh Width Tolerance （㎜）	Bulk Density ρ（㎏m3）	Specific Surface Area α（㎡/m3）		Porosity ε
Flat Wire	Round Wire	±20	182	Flat Wire	Round Wire	0.977
0.1×0.28	0.19			626	484

HP High-Permeability Filter Technical Parameters：
Wire Diameter dw(㎜）		Mesh Width Tolerance （㎜）	Bulk Density ρ（㎏m3）	Specific Surface Area α（㎡/m3）		Porosity ε
Flat Wire	Round Wire	±20	98	Flat Wire	Round Wire	0.9875
0.1×0.4	0.23			313	217

SP Standard-Type Filter Technical Parameters：
Wire Diameter dw(㎜）		Mesh Width Tolerance （㎜）	Bulk Density ρ（㎏/m³）	Specific Surface Area α（㎡/m³）		Porosity ε
Flat Wire	Round Wire	±20	150	Flat Wire	Round Wire	0.981
0.1×0.4	0.23			475	320

DP High-Efficiency Filter Technical Parameters：
Wire Diameter dw(㎜）		Mesh Width Tolerance （㎜）	Bulk Density ρ（㎏m3）	Specific Surface Area α（㎡/m3）		Porosity ε
Flat Wire	Round Wire	±20	182	Flat Wire	Round Wire	0.977
0.1×0.28	0.19			626	484

Gas-Liquid Filter

Quick Links

More Links

Product Category

Global operations center

Social Media

Northwest China

Chendu China

North America

Europe

Xi'an China

Attributes		Value
Filter material		SUS304/SUS316 Stainless Steel
Frame		Stainless steel wire mesh (SUS201, 202, 301, 302, 304, 304L, 321, 316, 316L)
Mesh sizes		2×4mm, 4×5mm, 7×12mm
Standard		HG/T21618-1998: SP, DP, HP
