Have Partition Air Filter H10(95)

5 0 Reviews

Frame: Galvanised sheet metal,SUS201,SUS304;
Filter material:Glass fiber filter paper；
Filter Material separation:Aluminium
Efficiency:H10(EN 1822):95% at MPPS；
Temperature:≤100℃；
Humidity:≤80% RH；
Recommended final pressure drop: ≤580 Pa；

Quantity:
Availability:





Inquire Add to Basket

Brand:
Dirkbiel

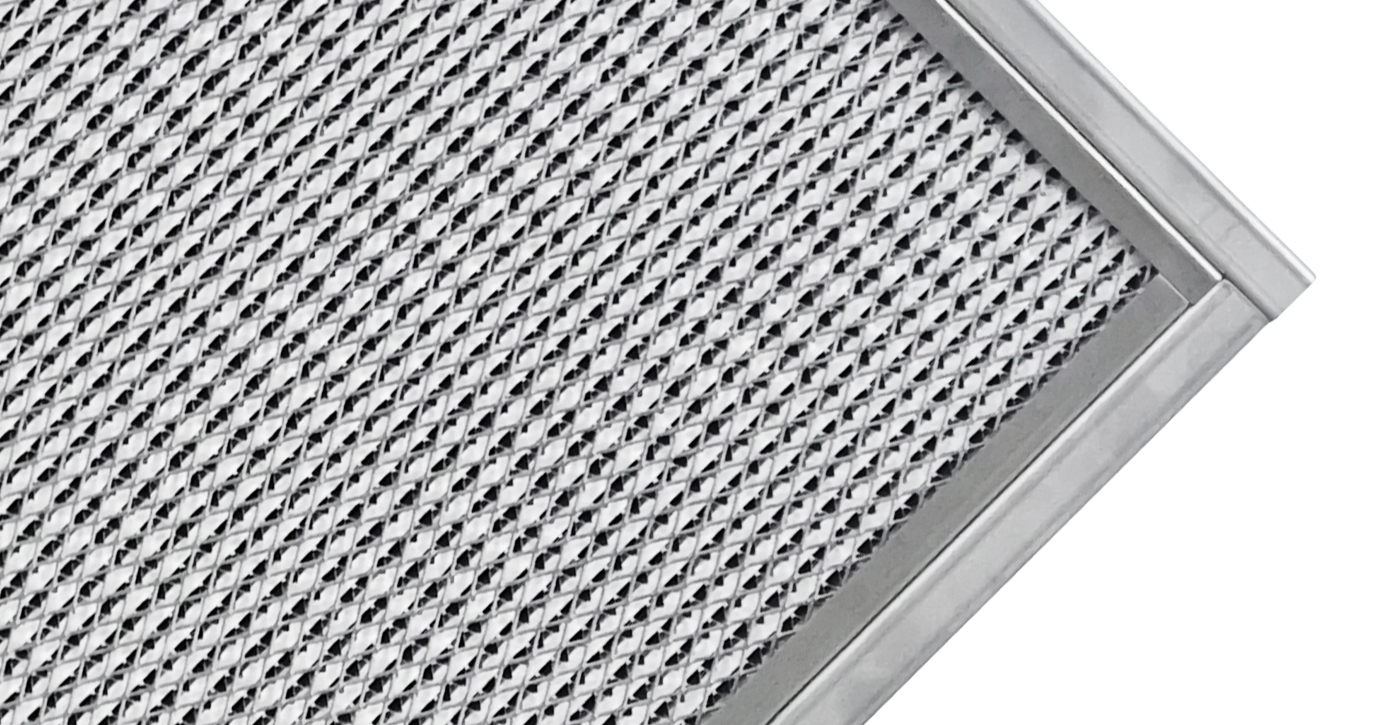

未标题-1

Enkonduko:

Commercial, industrial, clean room ventilation and air conditioning system in the main filter.Ventilation systems of high fire-proof requirement. Ventilation systems of high running temperature

Application:

Commercial, industrial, clean room 应用场景2 拷贝 5

微信图片_20240418154443 拷贝 2

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●Long service life

metal frame box filter Have Partition HEPA aluminum foil air filter box Box Filters High Efficiency Particulate Air Filter High Purity (HEPA) Filtration HEPA Panel Filters hepa filter

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822	KG
Model	Width	Heigh	Thickness	Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822	KG
box type
DCAM-H-P553	592	592	292	11.2	2500 / 100	3200 / 130	4200 / 160	H10	7.5
DCAM-H-P554	592	490	292	10.5	2000 /100	2800 / 130	3600 / 160	H10	7
DCAM-H-P555	592	287	292	5.8	1250 / 100	1700 / 130	1950 / 160	H10	4
DCAM-H-P556	610	610	292	12.5	2500/90	3600 / 120	4200 / 140	H10	8
DCAM-H-P557	610	305	292	6.5	1650 / 90	1800 / 120	2000 / 140	H10	4.5
into the wind with flange:19mm(W)×20mm(D)
DCAM-H-P558	592	592	292	10.5	2500 / 120	3200 / 150	4200 / 180	H10	8.5
DCAM-H-P559	592	490	292	9.8	2000 /120	2800 / 150	3600 / 180	H10	8
DCAM-H-P560	592	287	292	5	1250 / 120	1700 / 150	1950 / 180	H10	4.5
DCAM-H-P561	610	610	292	11	2500/110	3600 / 125	4200 / 160	H10	9
DCAM-H-P562	610	305	292	5.8	1650 / 110	1800 / 125	2000 / 160	H10	5
double flange:19mm(W)×20mm(D)
DCAM-H-P563	592	592	292	9.5	2500 / 120	3200 / 160	4200 / 200	H10	11.5
DCAM-H-P564	592	490	292	8	2000 /120	2800 / 160	3600 / 200	H10	9.8
DCAM-H-P565	592	287	292	4.5	1250 / 120	1700 / 160	1950 / 200	H10	6
DCAM-H-P566	610	610	292	10	2500/120	3600 / 140	4200 / 200	H10	12.5
DCAM-H-P567	610	305	292	5.2	1650 / 120	1800 / 140	2000 / 200	H10	6.5

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822	KG
Model	Width	Heigh	Thickness	Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822	KG
box type
DCAM-H-P553	592	592	292	11.2	2500 / 100	3200 / 130	4200 / 160	H10	7.5
DCAM-H-P554	592	490	292	10.5	2000 /100	2800 / 130	3600 / 160	H10	7
DCAM-H-P555	592	287	292	5.8	1250 / 100	1700 / 130	1950 / 160	H10	4
DCAM-H-P556	610	610	292	12.5	2500/90	3600 / 120	4200 / 140	H10	8
DCAM-H-P557	610	305	292	6.5	1650 / 90	1800 / 120	2000 / 140	H10	4.5
into the wind with flange:19mm(W)×20mm(D)
DCAM-H-P558	592	592	292	10.5	2500 / 120	3200 / 150	4200 / 180	H10	8.5
DCAM-H-P559	592	490	292	9.8	2000 /120	2800 / 150	3600 / 180	H10	8
DCAM-H-P560	592	287	292	5	1250 / 120	1700 / 150	1950 / 180	H10	4.5
DCAM-H-P561	610	610	292	11	2500/110	3600 / 125	4200 / 160	H10	9
DCAM-H-P562	610	305	292	5.8	1650 / 110	1800 / 125	2000 / 160	H10	5
double flange:19mm(W)×20mm(D)
DCAM-H-P563	592	592	292	9.5	2500 / 120	3200 / 160	4200 / 200	H10	11.5
DCAM-H-P564	592	490	292	8	2000 /120	2800 / 160	3600 / 200	H10	9.8
DCAM-H-P565	592	287	292	4.5	1250 / 120	1700 / 160	1950 / 200	H10	6
DCAM-H-P566	610	610	292	10	2500/120	3600 / 140	4200 / 200	H10	12.5
DCAM-H-P567	610	305	292	5.2	1650 / 120	1800 / 140	2000 / 200	H10	6.5

Have Partition Air Filter H10(95)

Quick Links

More Links

Product Category

Global operations center

Social Media

Northwest China

Chendu China

North America

Europe

Xi'an China

Attributes		Value
Frame		Galvanised sheet metal SUS201,SUS304
Filter material		Glass fiber filter paper
Filter Material separation		Paper / Aluminum foil
Efficiency	EN 1822	H10
	ASHRAE	MERV15-MERV16
Temperature		≤100℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa
