Have Partition HEPA H13 metal frame aluminum foil DMAI-H-P619
You are here: Home » Products » High efficiency air filter » Have Partition HEPA » Have Partition HEPA H13 metal frame aluminum foil DMAI-H-P619

loading

Have Partition HEPA H13 metal frame aluminum foil DMAI-H-P619

5 0 Reviews
●Large dust capacity
●Large ventilation
●High structural strength
●Low resistance
●Long service life
Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

  • Dirkbiel


微信图片_20240422080756 拷贝

Enkonduko:

The partition high efficiency air filter is suitable for filtering dust with the particle size of ≤0.3~0.5µm in clean rooms, purification rooms, ambient temperature and ambient humidity. It is an air filter that can withstand light acid, alkaline and organic solvents.


Application:

Install in the clean room system termina hepa box.应用场景2 拷贝 5

微信图片_20240418154443 拷贝


Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●Long service life




Specification:

Attributes                 Value
Frame

Aluminum alloy. Galvanised sheet metal
Filter material

Glass fiber filter paper
Filter Material separation Paper / Aluminum foil
Efficiency  EN779 H13
ASHRAE MERV17~MERV18
Temperature ≤80℃
Humidity  ≤80% RH
Recommended Max. Final Pressureiz drop ≤ 580Pa

Technical Data Sheet:

Model

Actual Size

(mm)

Filtration area

（m2）

Air flow /initial resistance

（m3/h / Pa）

Efficiency

(EN1822)

Length

Width

Thickness

DMAI-H-P619

320

320

150

2.9

250 / 190

H13

DMAI-H-P620

484

484

150

8.2

450 /190

H13

DMAI-H-P621

610

610

150

11.8

850 /190

H13

DMAI-H-P622

630

630

150

14.5

1000/190

H13

DMAI-H-P623

762

610

150

18.6

1500 /190

H13

DMAI-H-P624

915

610

150

19.4

1800 /190

H13

DMAI-H-P625

1220

610

150

26.5

2000 /190

H13

DMAI-H-P626

1260

630

150

28.8

2350 / 190

H13

DMAI-H-P627

320

320

220

7.2

400 / 190

H13

DMAI-H-P628

484

484

220

13.4

1000 / 190

H13

DMAI-H-P629

610

610

220

15.2

1650 / 190

H13

DMAI-H-P630

630

630

220

18.6

2500 / 190

H13

DMAI-H-P631

762

610

220

23.9

2000 / 190

H13

DMAI-H-P632

915

610

220

27.5

1250 / 190

H13

DMAI-H-P633

1220

610

220

32.5

2500/ 190

H13

DMAI-H-P634

1260

630

220

36.8

3000/ 190

H13

DMAI-H-P635

968

484

220

18.5

2000/ 190

H13

DMAI-H-P636

762

484

220

21.3

1500/ 190

H13



微信图片_20240418111050 拷贝

Detail

Folding distance: minimum spacing 2.5mm folding distance, large expansion area, large air volume

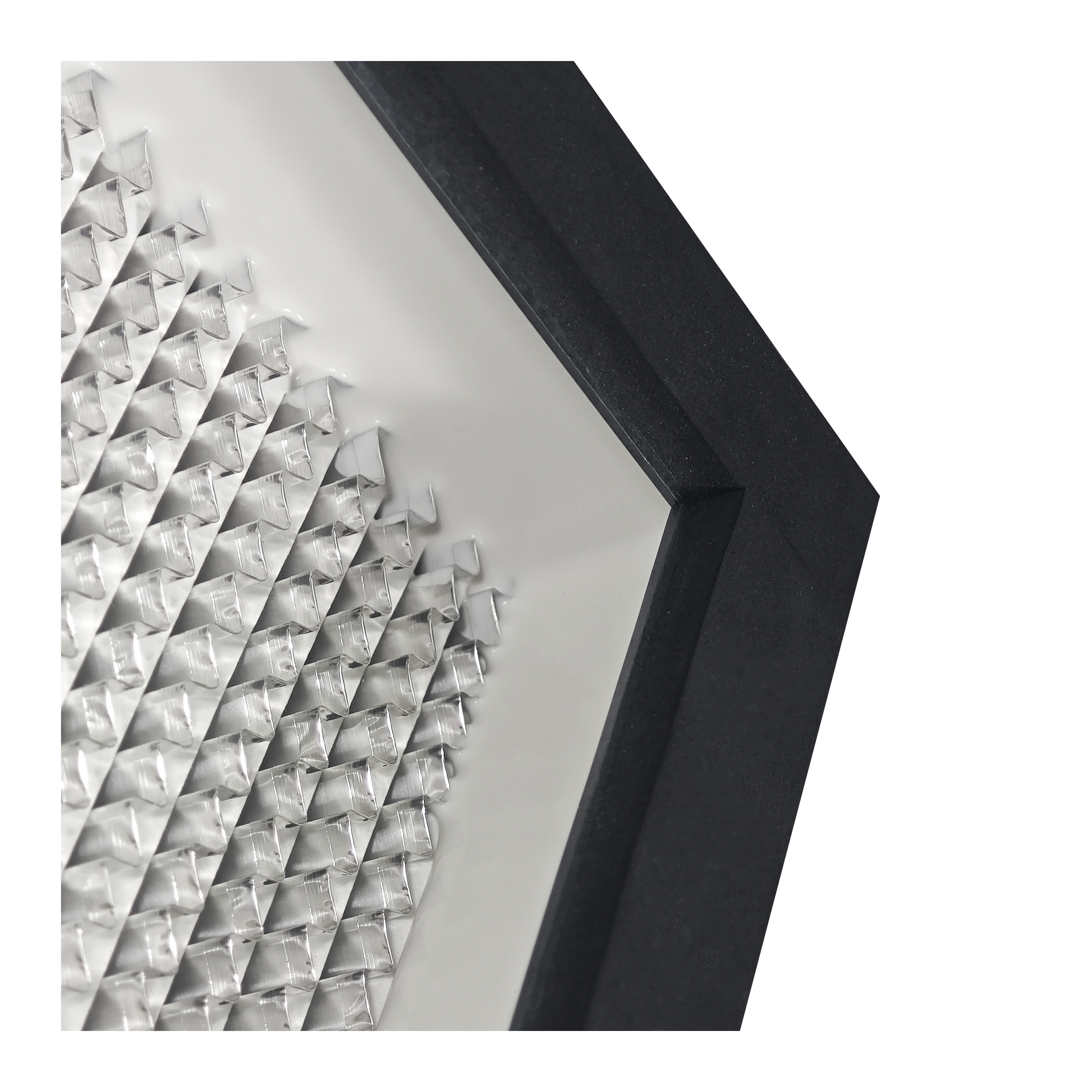

微信图片_20240418111228 拷贝

Glue injection

Four sides glue injection, reduce the risk of leakage

微信图片_20240418111220 拷贝

Process

Both sides of the hem

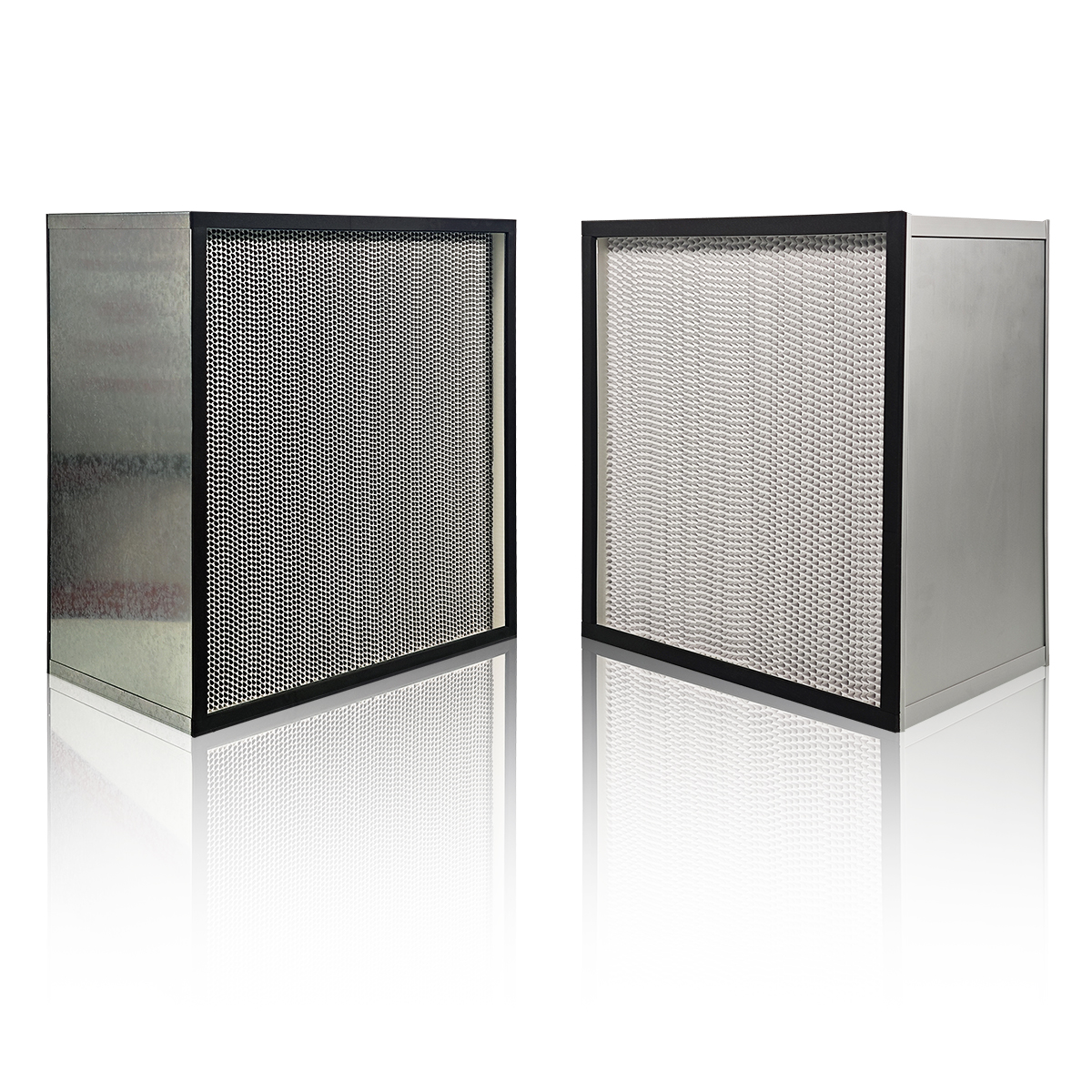

微信图片_20240419171345 拷贝4

Customization

Frame: Wood frame, aluminum alloy, aluminum frame, stainless steel, galvanized

Filter material: double adhesive paper, aluminum foil

微信图片_20240418104425 拷贝

Safety

Fireproof and moisture-proof kraft carton packaging


metal frame Have Partition HEPA aluminum foil
