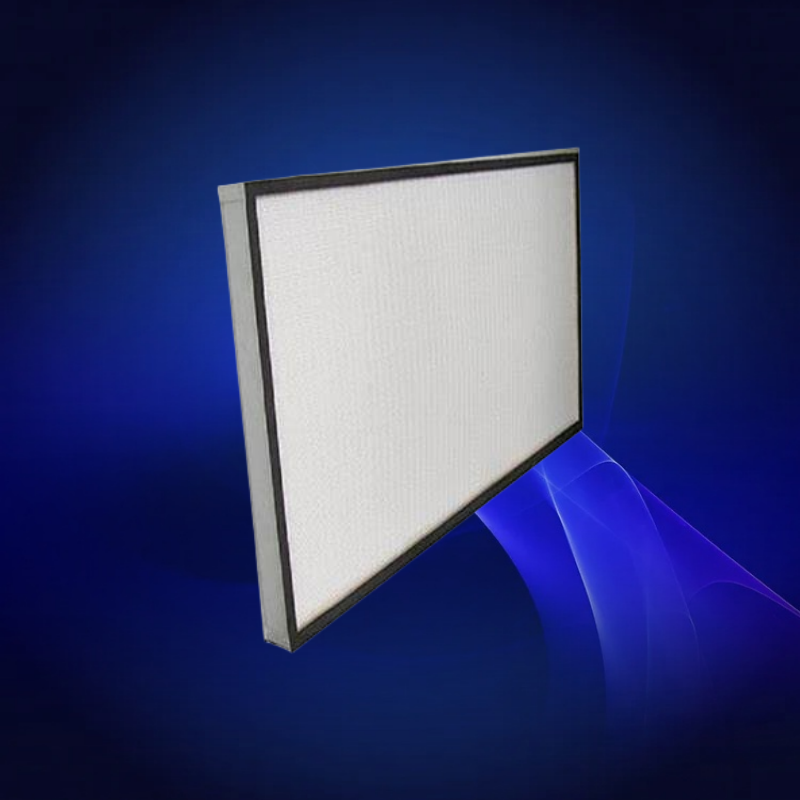

Industrial Panel Mini-pleated HEPA Air Filter H13

Industrial Panel Mini-pleated HEPA Air Filter H13

5 0 Reviews

The high-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.3μm or below.
Applications: FFU, clean room, clean table, clean shed and other purification system end filtration device.


Availability:

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fiber filter paper

Filter Material separation: Hot melt

Efficiency:

H13(EN 1822)99.99% at MPPS(0.3um)

Temperature:≤80o C

Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Model No.	Actual Size (mm)			Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency EN1822
Model No.	Length	Width	Thickness	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency EN1822
DHON-H-P812	320	320	150	3.5	350 / 230	H13
DHON-H-P813	484	484	150	8.5	850 /230	H13
DHON-H-P814	610	610	150	13.6	1450 /230	H13
DHON-H-P815	630	630	150	14.8	1600/230	H13
DHON-H-P816	762	610	150	17.6	1800 /230	H13
DHON-H-P817	915	610	150	22.5	2150 /230	H13
DHON-H-P818	1220	610	150	27	2850 /230	H13
DHON-H-P819	575	575	150	9.5	1000 /230	H13
DHON-H-P820	457	457	150	7.9	700/230	H13
