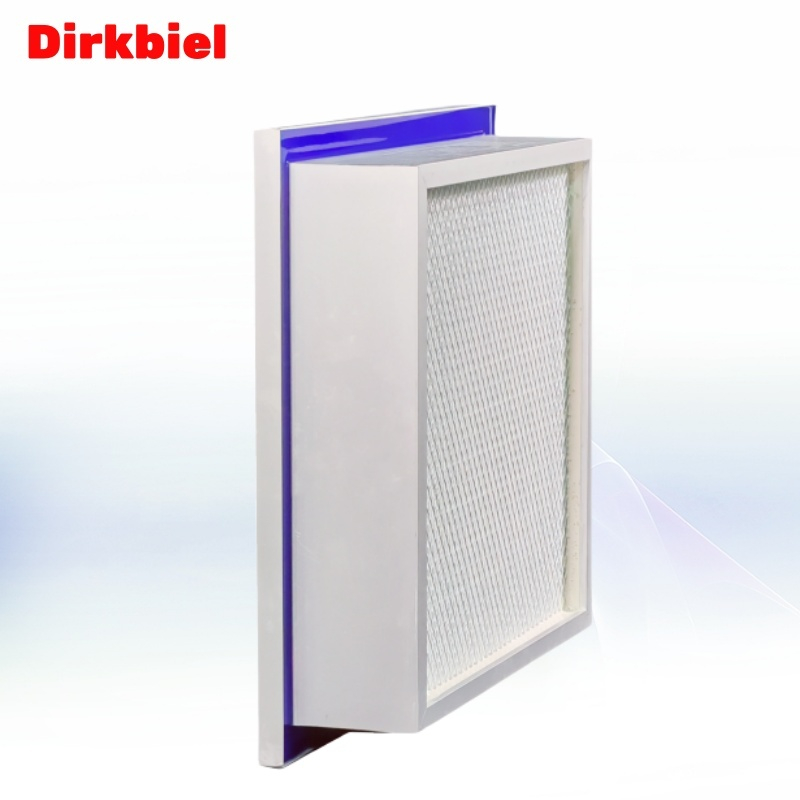

Liquid Tank Seal HEPA(Below) H14

5 0 Reviews

Applications: It is installed at the end air supply outlet of clean rooms, FFU and clean equipment and air supply systems with high requirements (electronics, bio-pharmaceutical medical ,chemical,)

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fibre filter paper

Filter Material separation: Hot melt

Efficiency:

H14(EN 1822)99.995% at MPPS(0.3um)

Temperature:≤80^o C Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Groove width W:19mm

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance 0.45 m/s 0.75 m/s 1.0 m/s （m3/h / Pa）			Efficiency EN1822
Model	Length	Width	Thickness	Filtration area （m2）				Efficiency EN1822
DMAC-H-P1092	320	320	93	3.8	180/100	300/160	500/220	H14
DMAC-H-P1093	475	475	93	6.8	300 /100	650/160	850/220	H14
DMAC-H-P1094	484	484	93	7.3	380/100	850/160	1000/220	H14
DMAC-H-P1095	570	570	93	9.6	450/100	700/160	1000/220	H14
DMAC-H-P1095	610	610	93	14.5	600/100	1000/160	1150/220	H14
DMAC-H-P1096	305	610	93	7.2	300/100	500/160	700/220	H14
DMAC-H-P1097	630	630	93	15.4	650/100	1150/160	1500/220	H14
DMAC-H-P1098	762	610	93	17.5	750/100	1200/160	1700/220	H14
DMAC-H-P1099	915	610	93	20.7	950/100	1500/160	1800/220	H14
DMAC-H-P1110	1170	570	93	24.5	1100/100	1800/160	2400/220	H14
DMAC-H-P1111	1170	870	93	37.6	1650/100	2700/160	3600/220	H14
DMAC-H-P1112	1220	610	93	27.3	1200/100	2000/160	2600/220	H14
DMAC-H-P1113	915	915	93	30.8	1300/100	2200/160	3000/220	H14
DMAC-H-P1114	1170	1170	93	50.5	2200/100	3500/160	4900/220	H14

High Efficiency air filter ( HEPA) HEPA air filter

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fibre filter paper

Filter Material separation: Hot melt

Efficiency:

H14(EN 1822)99.995% at MPPS(0.3um)

Temperature:≤80^o C Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Groove width W:19mm

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance 0.45 m/s 0.75 m/s 1.0 m/s （m3/h / Pa）			Efficiency EN1822
Model	Length	Width	Thickness	Filtration area （m2）				Efficiency EN1822
DMAC-H-P1092	320	320	93	3.8	180/100	300/160	500/220	H14
DMAC-H-P1093	475	475	93	6.8	300 /100	650/160	850/220	H14
DMAC-H-P1094	484	484	93	7.3	380/100	850/160	1000/220	H14
DMAC-H-P1095	570	570	93	9.6	450/100	700/160	1000/220	H14
DMAC-H-P1095	610	610	93	14.5	600/100	1000/160	1150/220	H14
DMAC-H-P1096	305	610	93	7.2	300/100	500/160	700/220	H14
DMAC-H-P1097	630	630	93	15.4	650/100	1150/160	1500/220	H14
DMAC-H-P1098	762	610	93	17.5	750/100	1200/160	1700/220	H14
DMAC-H-P1099	915	610	93	20.7	950/100	1500/160	1800/220	H14
DMAC-H-P1110	1170	570	93	24.5	1100/100	1800/160	2400/220	H14
DMAC-H-P1111	1170	870	93	37.6	1650/100	2700/160	3600/220	H14
DMAC-H-P1112	1220	610	93	27.3	1200/100	2000/160	2600/220	H14
DMAC-H-P1113	915	915	93	30.8	1300/100	2200/160	3000/220	H14
DMAC-H-P1114	1170	1170	93	50.5	2200/100	3500/160	4900/220	H14

Product Description

Specification

Frame: Aluminum alloy; Filter material: glass fibre filter paper

Filter Material separation: Hot melt

Efficiency:

H14(EN 1822)99.995% at MPPS(0.3um)

Temperature:≤80^o C Humidity:≤80% RH

Recommended final pressure drop: ≤580 Pa

Groove width W:19mm

Model	Actual Size(mm)			Filtration area （m2）	Air flow /initial resistance 0.45 m/s 0.75 m/s 1.0 m/s （m3/h / Pa）			Efficiency EN1822
Model	Length	Width	Thickness	Filtration area （m2）				Efficiency EN1822
DMAC-H-P1092	320	320	93	3.8	180/100	300/160	500/220	H14
DMAC-H-P1093	475	475	93	6.8	300 /100	650/160	850/220	H14
DMAC-H-P1094	484	484	93	7.3	380/100	850/160	1000/220	H14
DMAC-H-P1095	570	570	93	9.6	450/100	700/160	1000/220	H14
DMAC-H-P1095	610	610	93	14.5	600/100	1000/160	1150/220	H14
DMAC-H-P1096	305	610	93	7.2	300/100	500/160	700/220	H14
DMAC-H-P1097	630	630	93	15.4	650/100	1150/160	1500/220	H14
DMAC-H-P1098	762	610	93	17.5	750/100	1200/160	1700/220	H14
DMAC-H-P1099	915	610	93	20.7	950/100	1500/160	1800/220	H14
DMAC-H-P1110	1170	570	93	24.5	1100/100	1800/160	2400/220	H14
DMAC-H-P1111	1170	870	93	37.6	1650/100	2700/160	3600/220	H14
DMAC-H-P1112	1220	610	93	27.3	1200/100	2000/160	2600/220	H14
DMAC-H-P1113	915	915	93	30.8	1300/100	2200/160	3000/220	H14
DMAC-H-P1114	1170	1170	93	50.5	2200/100	3500/160	4900/220	H14

Liquid Tank Seal HEPA(Below) H14
