PES Folding Filter Element
You are here: Home » Products » Industrial Water Filter Element » PES Folding Filter Element

loading

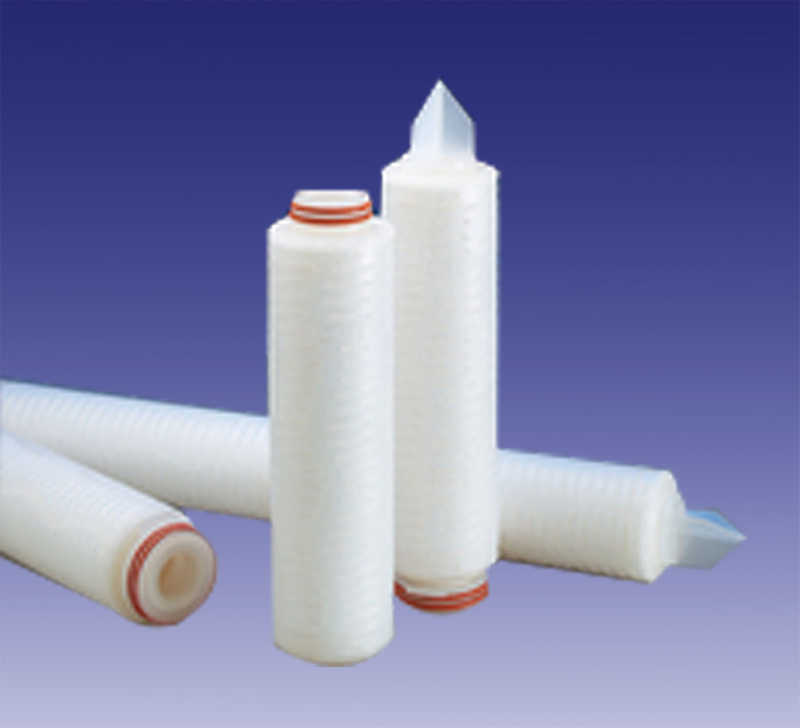

PES Folding Filter Element

5 0 Reviews
Filter element performance characteristics:
*The membrane stack is composed of imported PES filter membrane and imported diversion layer, which has excellent heat and chemical resistance。
The shell, center rod and end cover of type A are imported polypropylene materials;
Type B for the end of the high temperature resistant type, generally used for high temperature occasions;
The shell, center rod and end cover of type C are all lined with imported polypropylene material Stainless steel can be used in high temperature resistant places.
*    Hydrophilic filter membrane with uniform pore size distribution and high porosity;
*    High flow rate and particle retention;
*    Clean environment production;
*  Products are tested for 100% integrity before leaving the factory;
*    The cartridge meets FDA biosafety standards;
*    Good resistance to high temperature and acid and alkali;
*    Each cartridge is tested for integrity and rinsed with pure water;
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Specifications

series

DKBL-PES

filter rating /(μm)

0.03

0.1

0.2

0.45

0.65

Integrity Test(Bubble Point)

≥ 90 psig

(6.2bar)

≥ 70 psig

(4.8bar)

≥ 45 psig

(3.1bar)

≥ 24 psig

(1.7bar)

≥ 16 psig

(1.1bar)

Dimensions Length /(inch)

5

10

20

30

40

Dimensions Diameter /(mm)

2.7″(68mm)

Material


filter media

Polyethersulfone

filter support

Polypropylene

configuration

Polypropylene

maximum operating temperature

(℃)

176℉(80℃)@30△P(2.1bar)

Endotoxins

﹤ 0.25 EU/ml

maximum differential pressure


Forward: 70psi(4.8bar)@77℉(25℃); 30psi(2.1bar)@176℉(80℃)

Reverse: 50psi(3.4bar)@77℉(25℃)

Application field:

The pharmaceutical industry without salt water and solution filtration

The electronics industry with high purity water filter

Wine, beverage and mineral water of aseptic and clear filtration

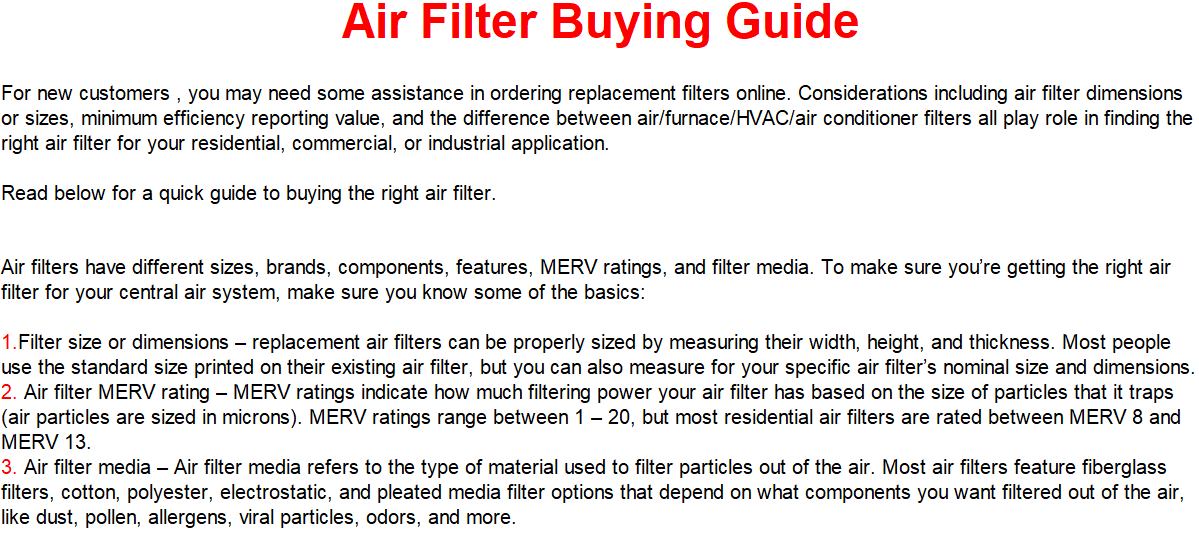

屏幕截图 2023-11-16 104305

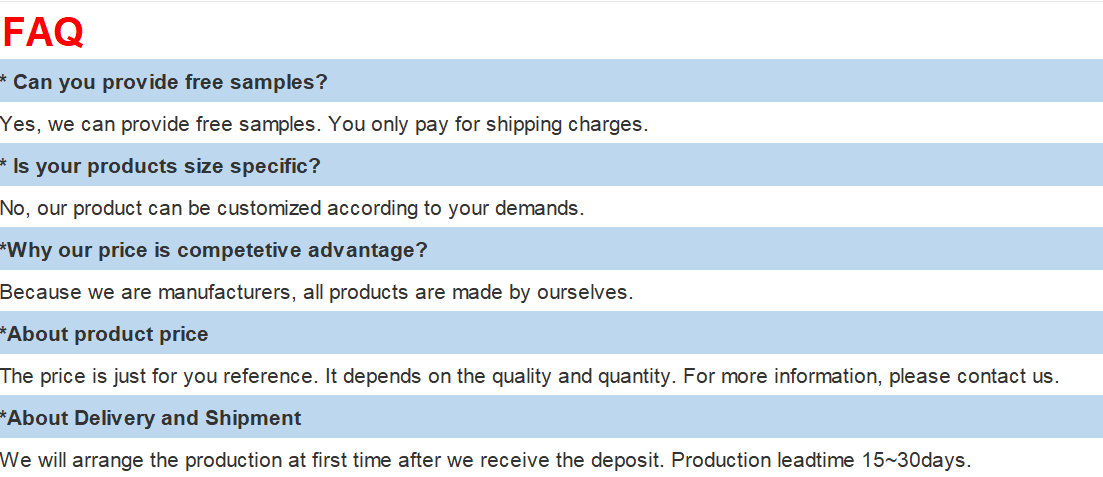

屏幕截图 2023-11-16 104335

Dirkbiel产品详情页
