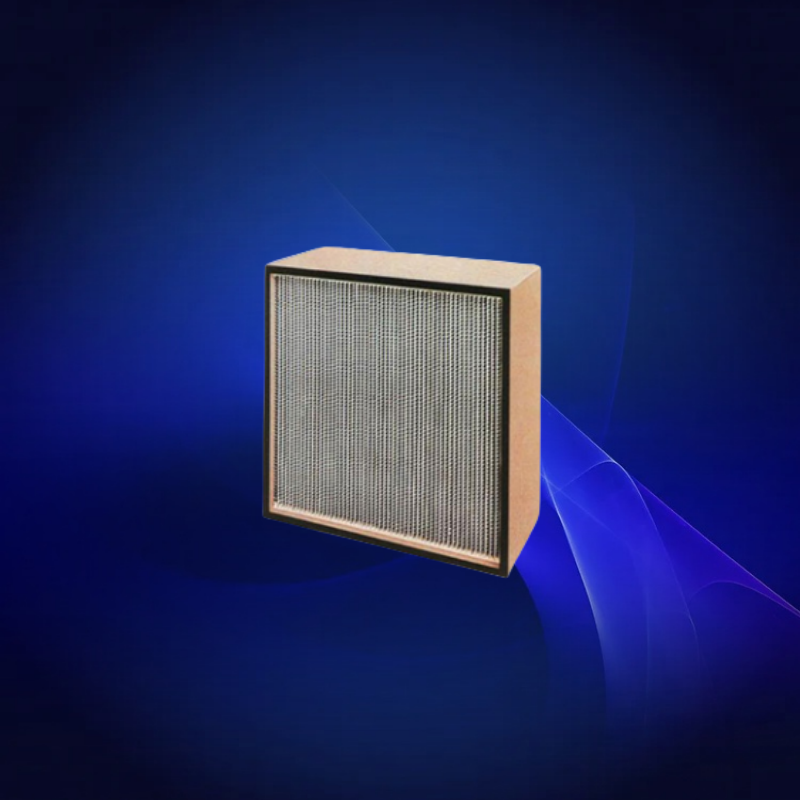

Partition HEPA H14(wooden frame)

You are here: Home » Products » Air Filter » HEPA » Partition HEPA H14(wooden frame)

Partition HEPA H14(wooden frame)

5 0 Reviews

The partition high efficiency air filter is suitable for filtering dust with the particle size of ≤0.3~0.5μm in clean rooms, purification rooms, ambient temperature and ambient humidity. It is an air filter that can withstand light acid, alkaline and organic solvents.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Applications: Install in the clean room system terminal HEPA box

Specification

Frame: Wooden frame; Filter material: Glass fiber filter paper

Filter Material separation: Paper

Efficiency:

H14(EN 1822): 99.995% at MPPS (0.3um)

Temperature:≤80o C

Humidity:≤80% RH

Recommended final pressure drop : ≤580 Pa

Model No.	Actual Size (mm)			Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency EN1822
Model No.	Length	Width	Thickness	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）	Efficiency EN1822
DMAI-H-P601	320	320	150	2.5	250 / 210	H14
DMAI-H-P602	484	484	150	7.5	450 /210	H14
DMAI-H-P603	610	610	150	10.5	850 /210	H14
DMAI-H-P604	630	630	150	13.6	1000/210	H14
DMAI-H-P605	762	610	150	17.2	1500 /210	H14
DMAI-H-P606	915	610	150	17.8	1800 /210	H14
DMAI-H-P607	1220	610	150	24.3	2000 /210	H14
DMAI-H-P608	1260	630	150	26.7	2350 /210	H14
DMAI-H-P609	320	320	220	6.5	400 / 210	H14
DMAI-H-P610	484	484	220	12.5	1000/210	H14
DMAI-H-P611	610	610	220	13.6	1650 /210	H14
DMAI-H-P612	630	630	220	16.8	2500 /210	H14
DMAI-H-P613	762	610	220	22.6	2000 /210	H14
DMAI-H-P614	915	610	220	25.9	1250 /210	H14
DMAI-H-P615	1220	610	220	30.5	2500/ 210	H14
DMAI-H-P616	1260	630	220	34.2	3000/ 210	H14
DMAI-H-P617	968	484	220	16.5	2000/ 210	H14
DMAI-H-P618	762	484	220	19.8	1500/ 210	H14

屏幕截图 2023-11-16 104305

屏幕截图 2023-11-16 104335

Dirkbiel产品详情页
