Sintered carbon core CTO
You are here: Home » Products » Industrial Water Filter Cartridge » Granular Activated Carbon (GAC) Filter Cartridge » Sintered carbon core CTO

loading

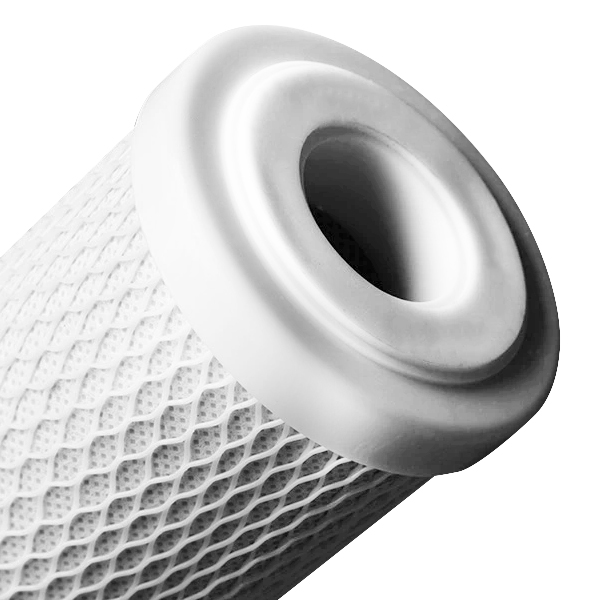

Sintered carbon core CTO

5 0 Reviews

MATERIAL COMPOSITION
Filter Media:
• Pickling coal-based carbon
• Washed coconut shell carbon

End Cap: Polypropylene (PP)

Sealing System:
• Gasket: PVC
• Support Mesh: PE

Diameter Specs:
• OD: 2-1/2" | 4-1/2" | 2"
• ID: 28mm | 1/4"

CORE PARAMETERS
Working Pressure: 40PSID
Temp Range: -20°C~90°C

Filtration Grades:
• Micro: 1μm | 5μm
• Standard: 10μm

Compatible Lengths: 5" | 9-7/8" | 20" | 30" | 40"

PERFORMANCE METRICS
Chlorine Removal: >96%
COD Reduction: 58.25%
Adsorption Yield: >800-1000mg/g
Service Life: 3000h @40PSID


Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


烧结炭芯101

Enkonduko:

The product uses non-toxic 'tasteless and efficient coconut shell activated carbon and coal activated carbon as the main body, supplemented by edible grade material binder, processed by special process, it sets adsorption filtration or catalytic action in one, is the current liquid, air purification industry to replace the loose activated carbon is more ideal new generation products.




Application:

I. Household & Food Industry

  • Water Purifiers: Removes residual chlorine (96.3% efficiency), improves taste, and adsorbs organics (e.g., benzene).

  • Beverage Decolorization: Enhances clarity by adsorbing pigments.

  • Edible Oil Refinement: Filters suspended particles to extend shelf life.

II. Pharmaceutical & Chemical

  • Injectable Solutions: Removes particulates/pyrogens for sterility.

  • Solvent Purification: Adsorbs impurities (e.g., toluene) to industrial-grade purity.

  • VOC Recovery: Captures benzene/H₂S (82–170g per filter).

  • Oilfield Fluids: Filters solids/colloids (0.7MPa pressure resistance).

III. Electronics & Environmental

  • Ultrapure Water: Pre-filtration for semiconductor cleaning (5–10μm precision).

  • Wastewater Treatment: Removes heavy metals (e.g., Hg, Cr⁶⁺) and cyanides.

  • Air Purification: Eliminates toxic gases (e.g., toluene, chloroform).

Key Features:

  • Standards: FDA/USP-compliant for food/pharma use.

  • Performance: High iodine value (≥1000 mg/g), low ash (≤5%).

Free Close-up of car parts being spray-painted in an automotive w 拷贝 12


Core Technical Specifications
Dimensional ParametersOuter Diameter (OD)2-1/2" | 4-1/2" | 2"
Inner Diameter (ID)28mm | 1/4"
Length5" | 9-7/8" | 20" | 30" | 40"
Material Composition
Filter MediaPickling coal carbon | Washed coconut shell carbon
Components
End cover: Polypropylene
Seals: PVC gasket + PE mesh
Performance Metrics
Filtration CapacityAperture1μm | 5μm | 10μm
Operational LimitsPressure40PSID max working
Temperature-20°C ~ 90°C
Chlorine Removal>96% efficiency
