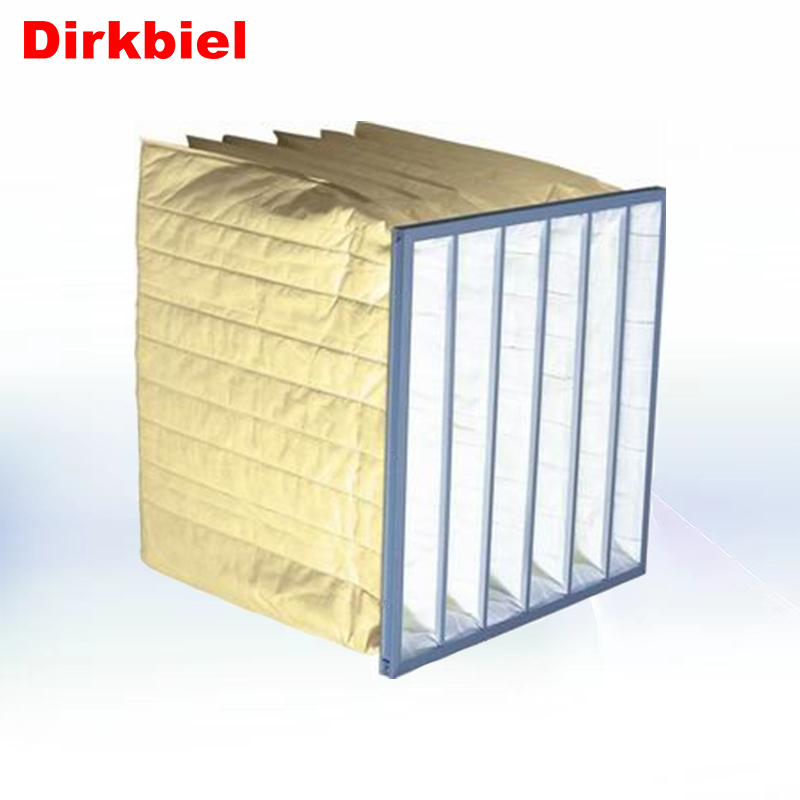

Synthetic Fiber Bag Medium Efficiency Filter F5

5 0 Reviews

Frame: Aluminum alloy. Galvanised sheet metal ;

Filter material:Synthetic fibre；

Efficiency:F5 (EN 779): 40-50% ASHRAE 52/76；

Temperature:≤80℃；

Humidity:≤100% RH；

Recommended final pressure drop: ≤350 Pa；

Quantity:
Availability:





Inquire Add to Basket

Brand:
Dirkbiel

微信图片_20240417081634 拷贝

Enkonduko:

The medium efficiency of synthetic fiber filter using the melt-blown superfine synthetic fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and other similar products compare high efficiency, low resistance and long life.

Application:

Commercial, industrial, clean room ventilation and air conditioning system in the main filter. 应用场景2 拷贝 3

微信图片_20240422140928 拷贝

Advantage:

●Long lasting

●High efficiency

●Low resistance

●Simple and convenient installation and operation

●Excellent dust holding function

Specification:

Attributes		Value
Frame		Aluminum alloy / Galvanised sheet metal
Filter material		Synthetic fibre
Efficiency	EN779	F5
	ASHRAE	MERV9-10
Temperature		≤80℃
Humidity		≤100% RH
Recommended Max. Final Pressureiz drop		≤ 350Pa
Frame Thickness		21mm / 25mm / 46mm

Technical Data Sheet:

Model	Nominal Size (inches)	Actual Size (mm)			Bags	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency （EN779）	KG
Model	Nominal Size (inches)	Width	Height	Depth	Bags	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency （EN779）	KG
DSM-B-P151	24 x 24 x 15	592	592	380	8	3.6	1950 / 40	2450 / 50	3200 / 70	F5	1.8
DSM-B-P152	20 x 24x 15	490	592	380	6	2.7	1500 / 40	2350 / 50	2850 / 70	F5	1.5
DSM-B-P153	12 x 24x15	287	592	380	3	1.4	950 / 40	1080 / 50	1500 / 70	F5	0.8
DSM-B-P154	20x 20x 15	490	490	380	5	2.0	1150 / 40	1650 / 50	2180 / 70	F5	1.2
DSM-B-P155	20 x 16 x 15	490	390	380	4	1.6	850 / 40	1450 / 50	2150 / 70	F5	1.4
DSM-B-P156	12x 12 x 15	287	287	380	2	0.44	350 / 40	400 / 50	650 / 70	F5	0.45
DSM-B-P157	24 x 24 x 19	592	592	480	8	4.6	2150 /40	2850 / 50	3400 / 70	F5	1.9
DSM-B-P158	20 x 24x 19	490	592	480	6	3.4	1800 / 40	2600 / 50	3050 / 70	F5	1.8
DSM-B-P159	12 x 24x19	287	592	480	3	1.7	1050 /40	1350 / 50	1700 / 70	F5	0.9
DSM-B-P160	20x 20x 19	490	490	480	5	2.35	1350 /40	1850 / 50	2350 / 70	F5	1.7
DSM-B-P161	20 x 16 x19	490	390	480	4	1.5	1050 /40	1650 / 50	2350 / 70	F5	1.6
DSM-B-P162	12x 12 x 19	287	287	480	2	0.5	450 /40	500 / 50	850 / 70	F5	0.9
DSM-B-P163	24 x 24 x 21	592	592	534	8	4.74	2380 /40	3200 / 50	4200 / 70	F5	1.9
DSM-B-P164	20 x 24x 21	490	592	534	6	4.3	2150 /40	2850 / 50	3200 / 70	F5	1.4
DSM-B-P165	12 x 24x 21	287	592	534	3	1.8	1250 / 40	1500 / 50	1950 / 70	F5	0.9
DSM-B-P166	20x 20x 21	490	490	534	5	2.5	1550 / 40	2280 / 50	2500 / 70	F5	1.3
DSM-B-P167	20 x 16 x 21	490	390	534	4	1.6	1250 / 40	1850 / 50	2650 / 70	F5	1.1
DSM-B-P168	12x 12 x 21	287	287	534	2	0.6	500 / 40	650 / 50	950 / 70	F5	0.7
DSM-B-P169	24 x 24 x25	592	592	600	8	5.7	2650 / 40	3600 / 50	4500 / 70	F5	2.1
DSM-B-P170	20 x 24x 25	490	592	600	6	4.3	2450 / 40	3100 / 50	3800 / 70	F5	1.8
DSM-B-P171	12 x 24x25	287	592	600	3	2.2	1450 / 40	1700 / 50	2100 / 70	F5	0.9
DSM-B-P172	20x 20x 25	490	490	600	5	2.94	1700 / 40	2450 / 50	2950 / 70	F5	1.7
DSM-B-P173	20x 16x 25	490	390	600	4	1.9	1450 / 40	2150 / 50	2850 / 70	F5	1.6
DSM-B-P174	12x 12x 25	287	287	600	2	0.7	650 / 40	800 / 50	1250 / 70	F5	0.9
