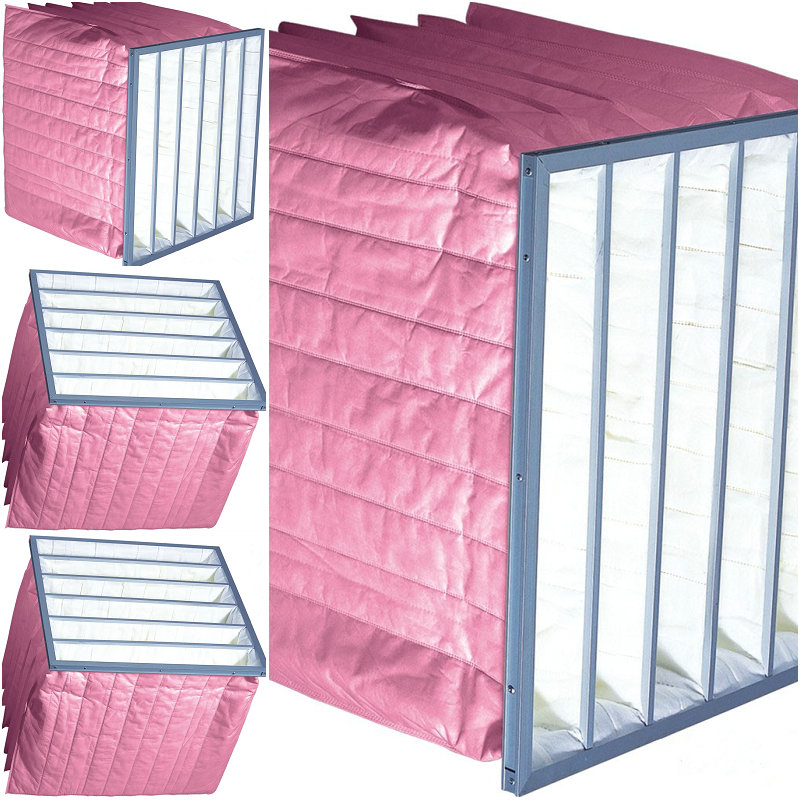

Synthetic Fiber Bag Medium Efficiency Filter F7

5 0 Reviews

Frame: Aluminum alloy. Galvanised sheet metal ;
Filter material:Synthetic fibre；
Efficiency:F7 (EN 779): 80-90% ASHRAE 52/76；
Temperature:≤80℃；
Humidity:≤100% RH；
Recommended final pressure drop: ≤350 Pa；

Quantity:
Availability:





Inquire Add to Basket

Brand:
Dirkbiel

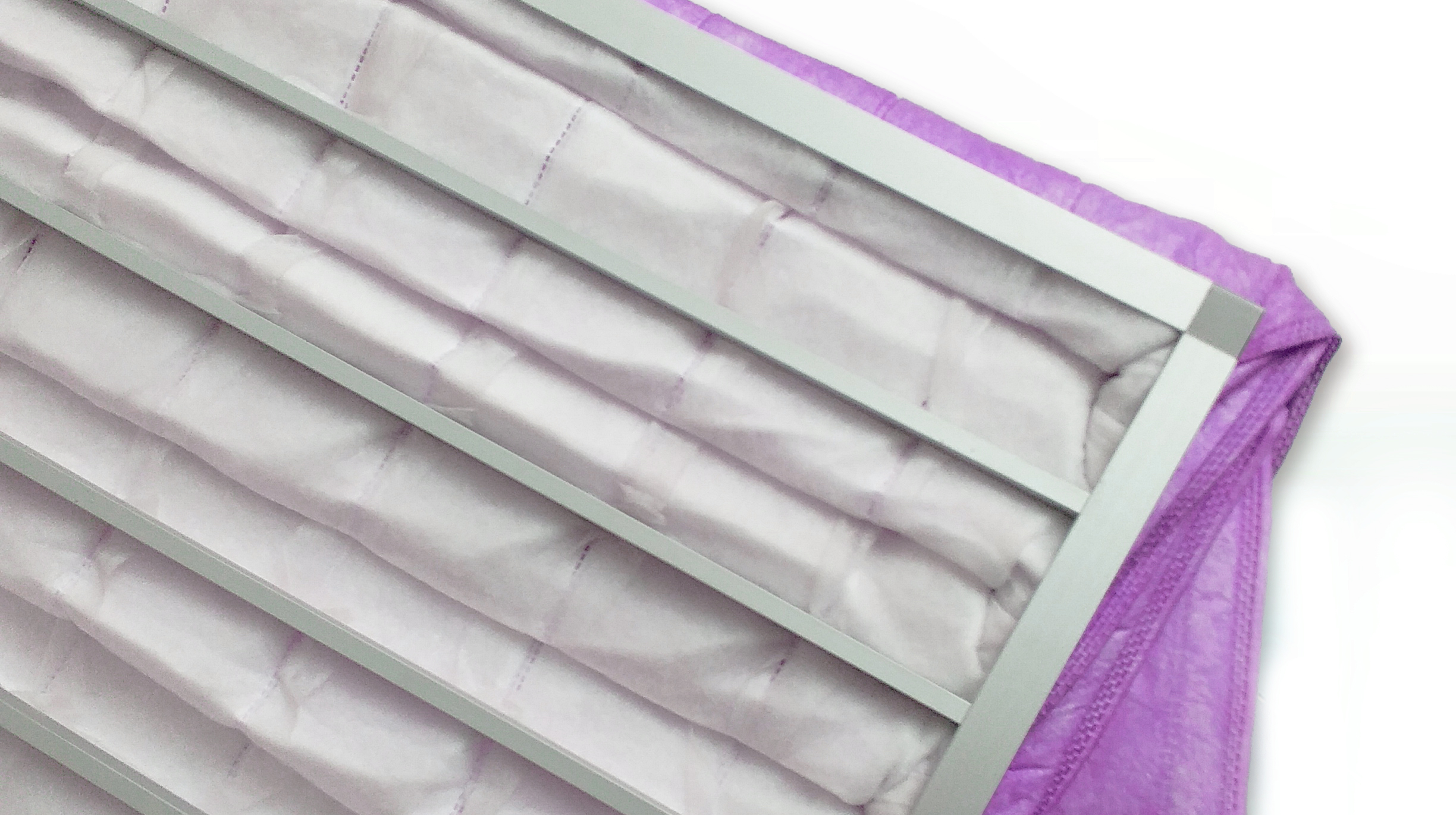

20200102_153229 拷贝 2

Enkonduko:

The medium efficiency of synthetic fiber filter using the melt-blown superfine synthetic fiber filter material, its fiber fine (diameter 0.5-5 um), quantity and structure fleeciness, and other similar products compare high efficiency, low resistance and long life.

Application:

Commercial, industrial, clean room ventilation and air conditioning system in the main filter. 应用场景2 拷贝 3

微信图片_20240422140928 拷贝 2

Advantage:

●Long lasting

●High efficiency

●Low resistance

●Simple and convenient installation and operation

●Excellent dust holding function

Specification:

Attributes		Value
Frame		Aluminum alloy / Galvanised sheet metal
Filter material		Synthetic fibre
Efficiency	EN779	F7
	ASHRAE	MERV13
Temperature		≤80℃
Humidity		≤100% RH
Recommended Max. Final Pressureiz drop		≤ 350Pa
Frame Thickness		21mm / 25mm / 46mm

Technical Data Sheet:

Model	NominalSize (inches)	ActualSize (mm)			Bags	Filtration area （m2）	Airflow/initialresistance （m³/h / Pa）			Efficiency EN779	KG
Model	NominalSize (inches)	Width	Heigh	Depth	Bags	Filtration area （m2）	Airflow/initialresistance （m³/h / Pa）			Efficiency EN779	KG
DSM-B-P199	24 x 24 x 15	592	592	380	8	3.6	1950 / 50	2450 / 60	3200 / 80	F7	1.9
DSM-B-P200	20 x 24x 15	490	592	380	6	2.7	1500 / 50	2350 / 60	2850 / 80	F7	1.6
DSM-B-P201	12 x 24x15	287	592	380	3	1.4	950 / 50	1080 / 60	1500 / 80	F7	0.9
DSM-B-P202	20x 20x 15	490	490	380	5	2.0	1150 / 50	1650 / 60	2180 / 80	F7	1.3
DSM-B-P203	20 x16 x 15	490	390	380	4	1.6	850 / 50	1450 / 60	2150 / 80	F7	1.5
DSM-B-P204	12x 12 x 15	287	287	380	2	0.44	350 / 50	400 / 60	650 / 80	F7	0.6
DSM-B-P205	24 x 24 x 19	592	592	480	8	4.6	2150 /50	2850 / 60	3400 / 80	F7	2.1
DSM-B-P206	20 x 24x 19	490	592	480	6	3.4	1800 / 50	2600 / 60	3050 / 80	F7	1.9
DSM-B-P207	12 x 24x19	287	592	480	3	1.7	1050 /50	1350 / 60	1700 / 80	F7	1.1
DSM-B-P208	20x 20x 19	490	490	480	5	2.35	1350 /50	1850 / 60	2350 / 80	F7	1.7
DSM-B-P209	20 x 16 x19	490	390	480	4	1.5	1050 /50	1650 / 60	2350 / 80	F7	1.55
DSM-B-P210	12x 12 x 19	287	287	480	2	0.5	450 /50	500 / 60	850 / 80	F7	0.95
DSM-B-P211	24 x 24 x 21	592	592	534	8	4.74	2380 /50	3200 / 60	4200 / 80	F7	1.6
DSM-B-P212	20 x 24x 21	490	592	534	6	4.3	2150 /50	2850 / 60	3200 / 80	F7	1.4
DSM-B-P213	12 x 24x 21	287	592	534	3	1.8	1250 / 50	1500 / 60	1950 / 80	F7	0.9
DSM-B-P214	20x 20x 21	490	490	534	5	2.5	1550 / 50	2280 / 60	2500 / 80	F7	1.3
DSM-B-P215	20 x 16 x 21	490	390	534	4	1.6	1250 / 50	1850 / 60	2650 / 80	F7	1.3
DSM-B-P216	12x 12 x 21	287	287	534	2	0.6	500 / 50	650 / 60	950 / 80	F7	0.7
DSM-B-P217	24 x 24 x25	592	592	600	8	5.7	2650 / 50	3600 / 60	4500 / 80	F7	2.3
DSM-B-P218	20 x 24x 25	490	592	600	6	4.3	2450 / 50	3100 / 60	3800 / 80	F7	1.8
DSM-B-P219	12 x 24x25	287	592	600	3	2.2	1450 / 50	1700 / 60	2100 / 80	F7	1.0
DSM-B-P220	20x 20x 25	490	490	600	5	2.94	1700 / 50	2450 / 60	2950 / 80	F7	1.8
DSM-B-P221	20 x 16 x 25	490	390	600	4	1.9	1450 / 50	2150 / 60	2850 / 80	F7	1.7
DSM-B-P222	12x 12 x25	287	287	600	2	0.7	650 / 50	800 / 60	1250 / 80	F7	0.95
