Enkonduko:

The super-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.12µm and below.

Application:

It is installed at the end air supply outlet of clean rooms, FFU and clean equipment and air supply systems with high requirements. 应用场景2 拷贝 5

IMG_20231216_175642 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●Long service life

Specification:

Attributes		Value
Frame		Aluminum alloy
Filter material		Glass fiber filter paper
Filter Material separation		Hot mel
Efficiency	EN 1822	U15
	ASHRAE	MERV20
Temperature		≤80℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa

Technical Data Sheet:

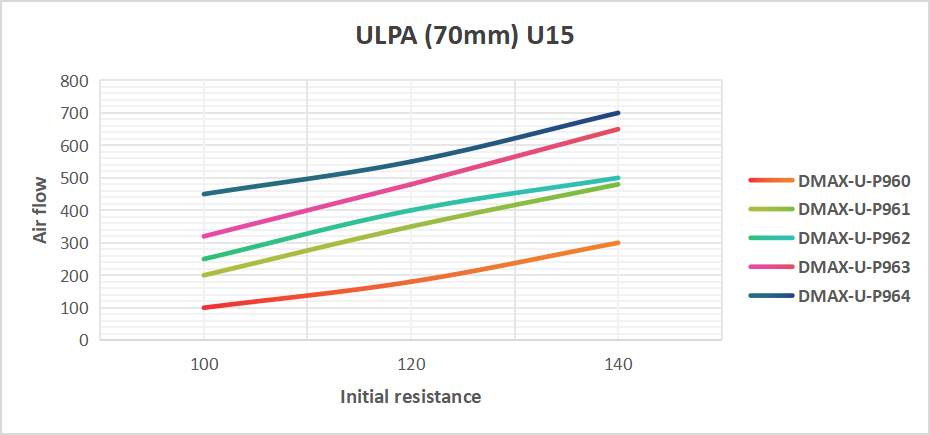

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822
Model	Width	Heigh	Thickness	Filtration area（㎡）	0.3 m/s	0.35 m/s	0.45 m/s	Efficiency EN1822
DMAX-U-P960	320	320	70	3.2	100/100	180/120	300/140	U15
DMAX-U-P961	475	475	70	5.2	200/100	350/120	480/140	U15
DMAX-U-P962	484	484	70	5.5	250/100	400/120	500/140	U15
DMAX-U-P963	570	570	70	9.2	320/100	480/120	650/140	U15
DMAX-U-P964	610	610	70	12.6	450/100	550/120	700/140	U15
DMAX-U-P965	305	610	70	6.5	210/100	250/120	450/140	U15
DMAX-U-P966	630	630	70	12.8	550/100	680/120	800/140	U15
DMAX-U-P967	762	610	70	14.5	750/100	1200/120	1500/140	U15
DMAX-U-P968	915	610	70	18.4	900/100	1500/120	1800/140	U15
DMAX-U-P969	1170	570	70	22.5	650/100	1000/120	1450/140	U15
DMAX-U-P970	1170	870	70	33.8	1200/100	1500/120	1750/140	U15
DMAX-U-P971	1220	610	70	24.5	900/100	1000/120	1350/140	U15
DMAX-U-P972	915	915	70	26.7	1000/100	1200/120	1500/140	U15
DMAX-U-P973	1170	1170	70	42.6	1500 /100	1800/120	2350/140	U15
DMAX-U-P974	1220	915	70	35.2	1450 /100	1750 /120	2050 /140	U15
