Enkonduko:

The super-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.12µm and below.

Application:

It is installed at the end air supply outlet of clean rooms, FFU and clean equipment and air supply systems with high requirements. 应用场景2 拷贝 5

IMG_20231216_175642 拷贝

Advantage:

●Large dust capacity

●Large ventilation

●High structural strength

●Low resistance

●Long service life

Specification:

Attributes		Value
Frame		Aluminum alloy
Filter material		Glass fiber filter paper
Filter Material separation		Hot mel
Efficiency	EN 1822	U17
	ASHRAE	MERV20
Temperature		≤80℃
Humidity		≤80% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa

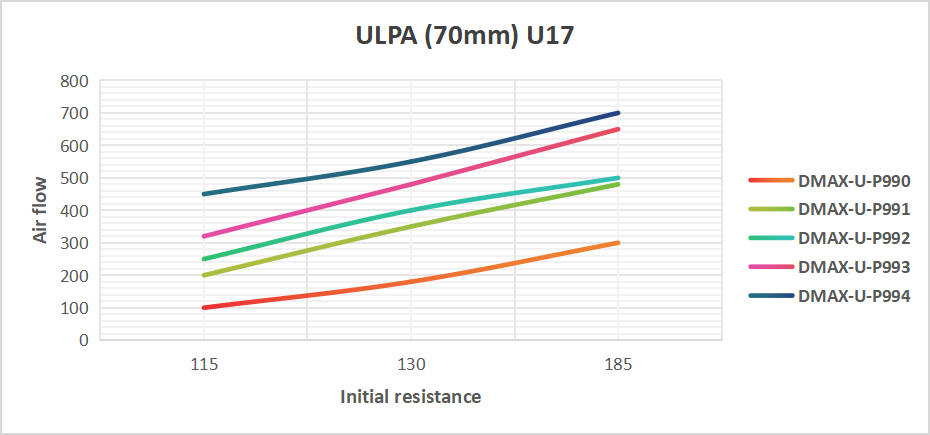

Technical Data Sheet:

Model	Actual Size (mm)			Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN1822
Model	Width	Heigh	Thickness	Filtration area（㎡）	0.3 m/s	0.35 m/s	0.45 m/s	Efficiency EN1822
DMAX-U-P990	320	320	70	3.2	100/115	180/130	300/185	U17
DMAX-U-P991	475	475	70	5.2	200/115	350/130	480/185	U17
DMAX-U-P992	484	484	70	5.5	250/115	400/130	500/185	U17
DMAX-U-P993	570	570	70	9.2	320/115	480/130	650/185	U17
DMAX-U-P994	610	610	70	12.6	450/115	550/130	700/185	U17
DMAX-U-P995	305	610	70	6.5	210/115	250/130	450/185	U17
DMAX-U-P996	630	630	70	12.8	550/115	680/130	800/185	U17
DMAX-U-P997	762	610	70	14.5	750/115	1200/130	1500/185	U17
DMAX-U-P998	915	610	70	18.4	900/115	1500/130	1800/185	U17
DMAX-U-P999	1170	570	70	22.5	650/115	1000/130	1450/185	U17
DMAX-U-P1000	1170	870	70	33.8	1200/115	1500/130	1750/185	U17
DMAX-U-P1001	1220	610	70	24.5	900/115	1000/130	1350/185	U17
DMAX-U-P1002	915	915	70	26.7	1000/115	1200/130	1500/185	U17
DMAX-U-P1003	1170	1170	70	42.6	1500 /115	1800/130	2350/185	U17
DMAX-U-P1004	1220	915	70	35.2	1450 /115	1750 /130	2050 /185	U17
