Dirkbiel
Enkonduko:

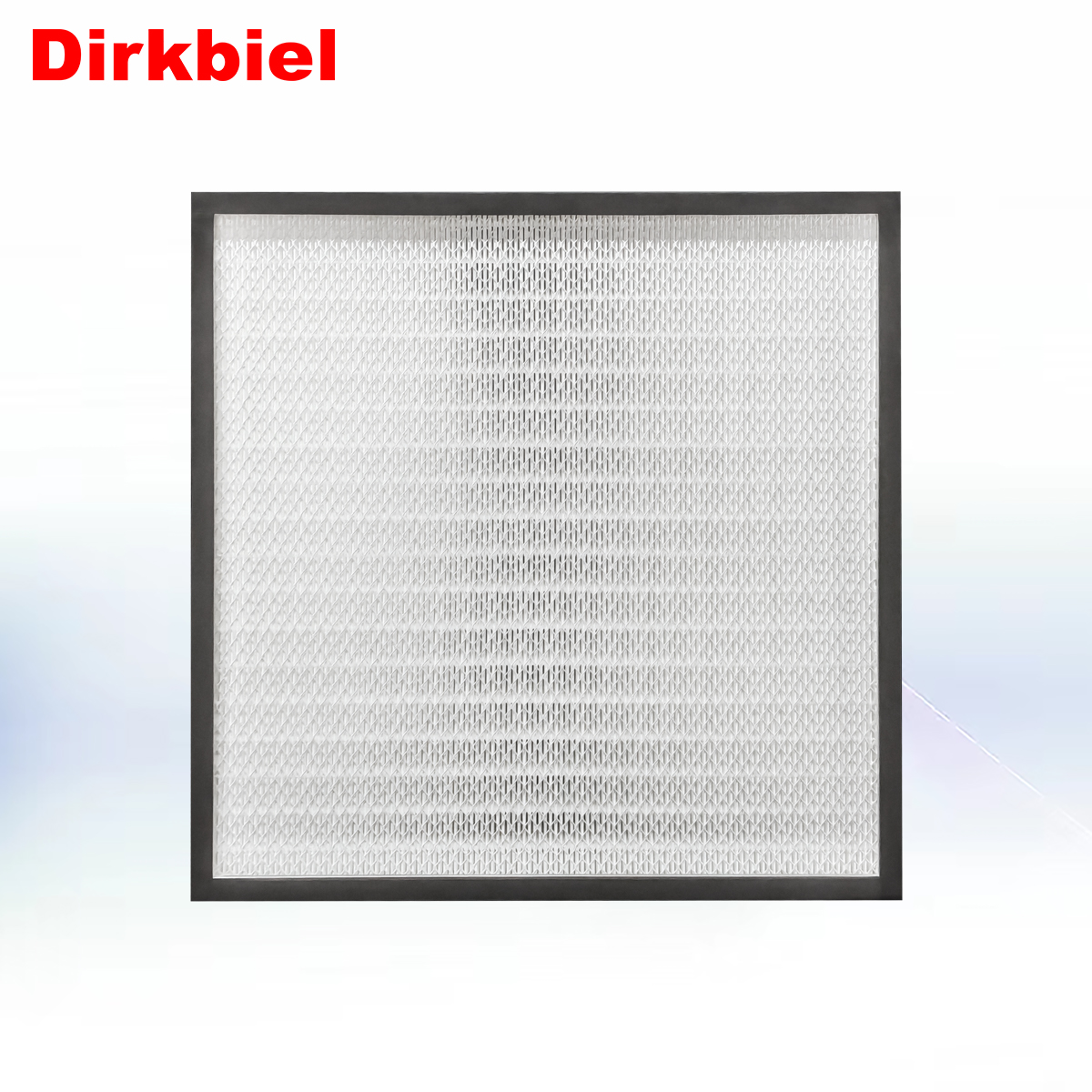

The super-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.12µm and below.
Application:
It is installed at the end air supply outlet of clean rooms, FFU and clean equipment and air supply systems with high requirements
Advantage:
●Large dust capacity
●Large ventilation
●High structural strength
●Low resistance
●Long service life
Enkonduko:
The super-effect non-partition air filter is made of super fine glass fiber paper and other materials and it uses hot-melt adhesive as the partition material to form with the metal frame. It is mainly used for catching dust with the particle size of 0.12µm and below.
Application:
It is installed at the end air supply outlet of clean rooms, FFU and clean equipment and air supply systems with high requirements
Advantage:
●Large dust capacity
●Large ventilation
●High structural strength
●Low resistance
●Long service life
Specification:
Attributes | Value | |||
Frame | Aluminum alloy | |||
Filter material | Glass fiber filter paper | |||
Filter Material separation | Hot mel | |||
Efficiency | EN 1822 | U17 | ||
ASHRAE | MERV20 | |||
Temperature | ≤80℃ | |||
Humidity | ≤80% RH | |||
Recommended Max. Final Pressureiz drop | ≤ 580Pa |
Technical Data Sheet:
Model | Actual Size (mm) | Filtration area(㎡) | Airflow / initial resistance (m³/h / Pa) | Efficiency EN1822 | ||||
Width | Heigh | Thickness | 0.3 m/s | 0.35 m/s | 0.45 m/s | |||
DMAX-U-P1035 | 320 | 320 | 90 | 3.8 | 120/95 | 180/120 | 280/140 | U17 |
DMAX-U-P1036 | 475 | 475 | 90 | 6.8 | 200 /95 | 280/120 | 350/140 | U17 |
DMAX-U-P1037 | 484 | 484 | 90 | 7.5 | 220/95 | 300/120 | 400/140 | U17 |
DMAX-U-P1038 | 570 | 570 | 90 | 12.2 | 320/95 | 400/120 | 500/140 | U17 |
DMAX-U-P1039 | 610 | 610 | 90 | 15.5 | 400/95 | 500/120 | 650/140 | U17 |
DMAX-U-P1040 | 305 | 610 | 90 | 7.5 | 200/95 | 250/120 | 350/140 | U17 |
DMAX-U-P1041 | 630 | 630 | 90 | 15.4 | 650 /95 | 1150/120 | 1500/140 | U17 |
DMAX-U-P1042 | 762 | 610 | 90 | 17.5 | 550 /95 | 650/120 | 800/140 | U17 |
DMAX-U-P1043 | 915 | 610 | 90 | 23 | 650 /95 | 750/120 | 950/140 | U17 |
DMAX-U-P1044 | 1170 | 570 | 90 | 28.5 | 800 /95 | 1800/120 | 2400/140 | U17 |
DMAX-U-P1045 | 1170 | 870 | 90 | 42 | 1200 /95 | 1350/120 | 1700/140 | U17 |
DMAX-U-P1046 | 1220 | 610 | 90 | 30.5 | 850 /95 | 1000/120 | 1450/140 | U17 |
DMAX-U-P1047 | 915 | 915 | 90 | 34.8 | 950/95 | 1100/120 | 1400/140 | U17 |
DMAX-U-P1048 | 1170 | 1170 | 90 | 56.5 | 1500 /95 | 1750/120 | 2300/140 | U17 |
DMAX-U-P1049 | 1220 | 915 | 90 | 46.2 | 1200 /85 | 1400 /100 | 1800 /140 | U17 |
Specification:
Attributes | Value | |||
Frame | Aluminum alloy | |||
Filter material | Glass fiber filter paper | |||
Filter Material separation | Hot mel | |||
Efficiency | EN 1822 | U17 | ||
ASHRAE | MERV20 | |||
Temperature | ≤80℃ | |||
Humidity | ≤80% RH | |||
Recommended Max. Final Pressureiz drop | ≤ 580Pa |
Technical Data Sheet:
Model | Actual Size (mm) | Filtration area(㎡) | Airflow / initial resistance (m³/h / Pa) | Efficiency EN1822 | ||||
Width | Heigh | Thickness | 0.3 m/s | 0.35 m/s | 0.45 m/s | |||
DMAX-U-P1035 | 320 | 320 | 90 | 3.8 | 120/95 | 180/120 | 280/140 | U17 |
DMAX-U-P1036 | 475 | 475 | 90 | 6.8 | 200 /95 | 280/120 | 350/140 | U17 |
DMAX-U-P1037 | 484 | 484 | 90 | 7.5 | 220/95 | 300/120 | 400/140 | U17 |
DMAX-U-P1038 | 570 | 570 | 90 | 12.2 | 320/95 | 400/120 | 500/140 | U17 |
DMAX-U-P1039 | 610 | 610 | 90 | 15.5 | 400/95 | 500/120 | 650/140 | U17 |
DMAX-U-P1040 | 305 | 610 | 90 | 7.5 | 200/95 | 250/120 | 350/140 | U17 |
DMAX-U-P1041 | 630 | 630 | 90 | 15.4 | 650 /95 | 1150/120 | 1500/140 | U17 |
DMAX-U-P1042 | 762 | 610 | 90 | 17.5 | 550 /95 | 650/120 | 800/140 | U17 |
DMAX-U-P1043 | 915 | 610 | 90 | 23 | 650 /95 | 750/120 | 950/140 | U17 |
DMAX-U-P1044 | 1170 | 570 | 90 | 28.5 | 800 /95 | 1800/120 | 2400/140 | U17 |
DMAX-U-P1045 | 1170 | 870 | 90 | 42 | 1200 /95 | 1350/120 | 1700/140 | U17 |
DMAX-U-P1046 | 1220 | 610 | 90 | 30.5 | 850 /95 | 1000/120 | 1450/140 | U17 |
DMAX-U-P1047 | 915 | 915 | 90 | 34.8 | 950/95 | 1100/120 | 1400/140 | U17 |
DMAX-U-P1048 | 1170 | 1170 | 90 | 56.5 | 1500 /95 | 1750/120 | 2300/140 | U17 |
DMAX-U-P1049 | 1220 | 915 | 90 | 46.2 | 1200 /85 | 1400 /100 | 1800 /140 | U17 |
High Pleat
28 pleats per 100 mm, higher pleats can also be customized
Full Injection Glue
Use polyurethane environmentally friendly AB adhesive for four-sided gluing
Durable
Filter paper is high strength, moisture-proof and durable
Solid
Double-sided protective mesh is more durable
High Pleat
28 pleats per 100 mm, higher pleats can also be customized
Full Injection Glue
Use polyurethane environmentally friendly AB adhesive for four-sided gluing
Durable
Filter paper is high strength, moisture-proof and durable
Solid
Double-sided protective mesh is more durable
