V/W Chemical Filter H13
You are here: Home » Products » Air Filter » Chemical Filter » V/W Chemical Filter H13

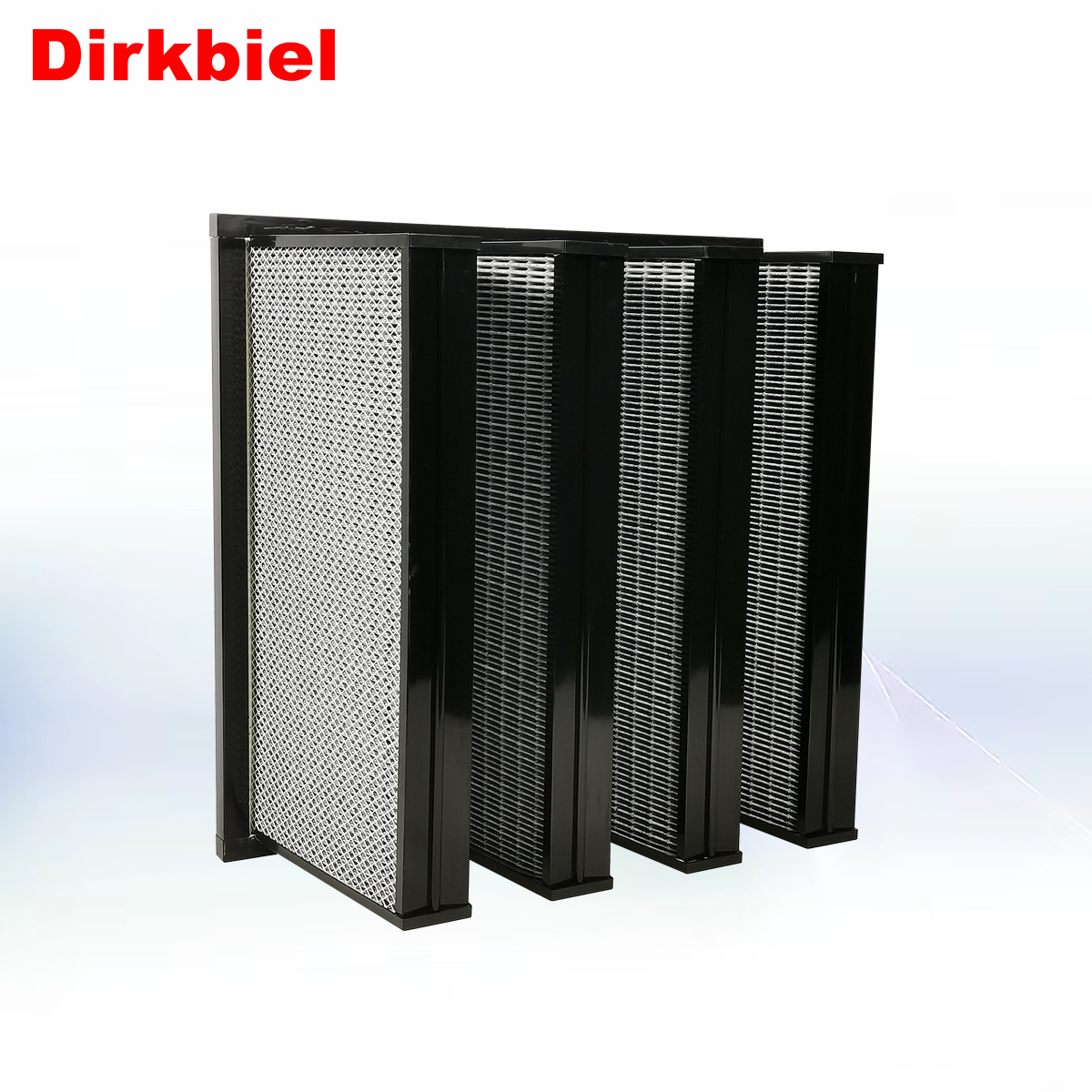

V/W Chemical Filter H13

5 0 Reviews
Frame:ABS;
Filter material:Multilayer carbon media + Multilayer composite synthetic fiber;
Efficiency:F8 (EN 779): 90-95% ASHRAE 52/76;
Temperature:≤40℃;
Humidity:≤100% RH;
Recommended final pressure drop: ≤380 Pa;
Flange:19mm;
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


IMG_20230922_092144 拷贝

Enkonduko:

It can be used for air filtration at the public places such as airports, hospitals (such as wards for patients of respiratory diseases) and office buildings and it can effectively eliminate the smells in the air while saving energy.



Application:

It can be used at the central control rooms at chemical companies, petrochemical companies and steel works in order to protect the precision instrument and equipment from damages by corrosive gases.应用场景2 拷贝 5




未标题-1 拷贝 2

Advantage:

Strong adsorption capacity

Remove odors and toxic and harmful gases

Environmentally friendly and harmless

Large dust holding capacity

Low resistance, large ventilation




Specification:

Attributes                 Value
Frame

ABS

Filter material

Multilayer carbon media + Multilayer composite synthetic fiber

Efficiency  EN779 H13
ASHRAE MERV17-MERV18
Temperature ≤40℃
Humidity  ≤100% RH
Recommended Max. Final Pressureiz drop ≤ 380Pa
Flange 19mm

Technical Data Sheet:

Model

Actual Size (mm)

V

Filtration area(

Airflow / initial resistance

/h / Pa)

Efficiency

EN1822

KG

Width

Heigh

Thickness

DSMIC-C-P1241

592

592

292

4

14.8

2500 / 180

3400 / 240

4000 / 290

H13

7.5

DSMIC-C-P1242

592

490

292

4

11.5

1900 / 180

2500 / 240

3000 / 290

H13

6.6

DSMIC-C-P1243

592

287

292

4

7.2

1100 / 180

1700 / 240

2000 / 290

H13

4.8

1241-1243

211

Low Drag

The concave arc design is adopted on the windward side to form the airflow buffer zone, which greatly reduces the ventilation resistance and greatly improves the ventilation volume


IMG_20230922_093504 拷贝Leakproof

AB type environment-friendly resin adhesive, full injection glue, effective leak-proof

212

Filter Material

Multilayer composite synthetic fiber + activated carbon filter material

13Complete Style

Variety of options are available: plate, boxbag,honeycomb, motherframe, cylinder
