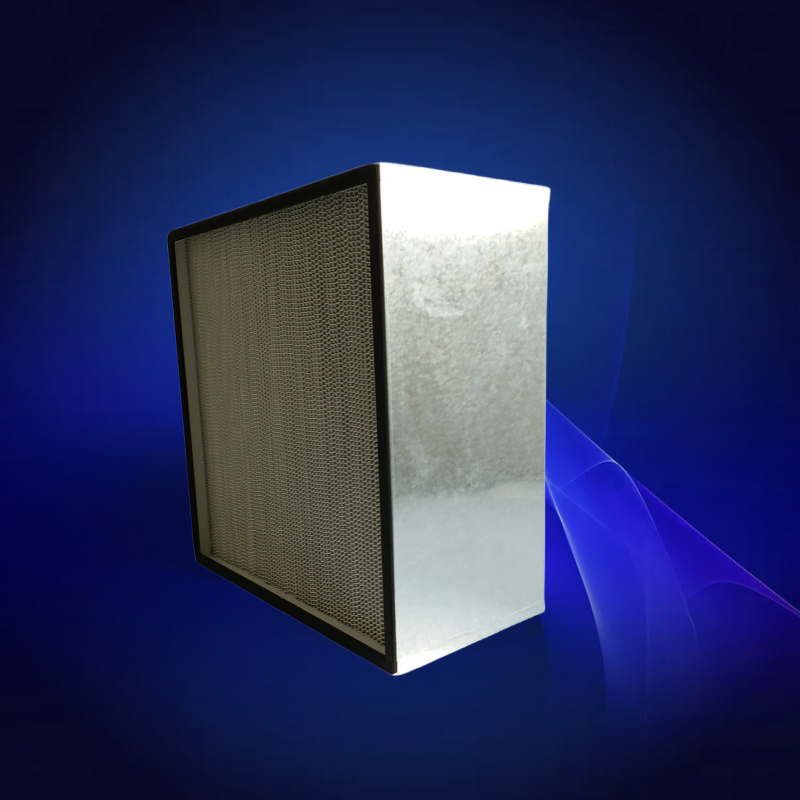

V/W Partition HEPA H13 (99.99%)

You are here: Home » Products » Air Filter » HEPA » V/W Partition HEPA H13 (99.99%)

V/W Partition HEPA H13 (99.99%)

5 0 Reviews

Applications: commercial, industrial, clean room ventilation and air conditioning system in the main filter.

Quantity:
Availability:





Inquire Add to Basket

Product Description

Specification

Frame: Galvanized sheet metal SUS201,SUS304 ; Filter material: Glass fiber filter filter paper

Filter Material separation: Aluminium 95% ASHRAE 52/76

Efficiency:

H13(EN 1822): 99.99% at MPPS(0.3um)

Temperature:≤100o C

Humidity:≤80% RH

Recommended final pressure drop : ≤580 Pa

Model No.	Actual Size (mm)			Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN1822	KG
Model No.	Length	Width	Thickness	Filtration area （m2）	Air flow /initial resistance （m3/h / Pa）			Efficiency EN1822	KG
box type
DCAM-H-P568	592	592	292	11.2	2500 / 180	3200 / 220	4200 / 260	H13	7.5
DCAM-H-P569	592	490	292	10.5	2000 /180	2800 / 220	3600 / 260	H13	7
DCAM-H-P570	592	287	292	5.8	1250 / 180	1700 / 220 5	1950 / 260	H13	4
DCAM-H-P571	610	610	292	12.5	2500/170	3600 / 200	4200 / 240	H13	8
DCAM-H-P572	610	305	292	6.5	1650 / 170	1800 / 200 5	2000 / 240	H13	4.5
into the wind with flange:19mm(W)×20mm(D)
DCAM-H-P573	592	592	292	10.5	2500 / 190	3200 / 230	4200 / 275	H13	8.5
DCAM-H-P574	592	490	292	9.8	2000 /190	2800 / 230	3600 / 275	H13	8
DCAM-H-P575	592	287	292	5	1250 / 190	1700 / 230 5	1950 / 275	H13	4.5
DCAM-H-P576	610	610	292	11	2500/180	3600 / 215	4200 / 260	H13	9
DCAM-H-P577	610	305	292	5.8	1650 / 180	1800 / 215 5	2000 / 260	H13	5
double flange:19mm(W)×20mm(D)
DCAM-H-P578	592	592	292	9.5	2500 / 200	3200 / 250	4200 / 285	H13	11.5
DCAM-H-P579	592	490	292	8	2000 /200	2800 / 250	3600 / 285	H13	9.8
DCAM-H-P580	592	287	292	4.5	1250 / 200	1700 / 250 5	1950 / 285	H13	6
DCAM-H-P581	610	610	292	10	2500/200	3600 / 220	4200 / 270	H13	12.5
DCAM-H-P582	610	305	292	5.2	1650 / 200	1800 / 220 5	2000 / 270	H13	6.5

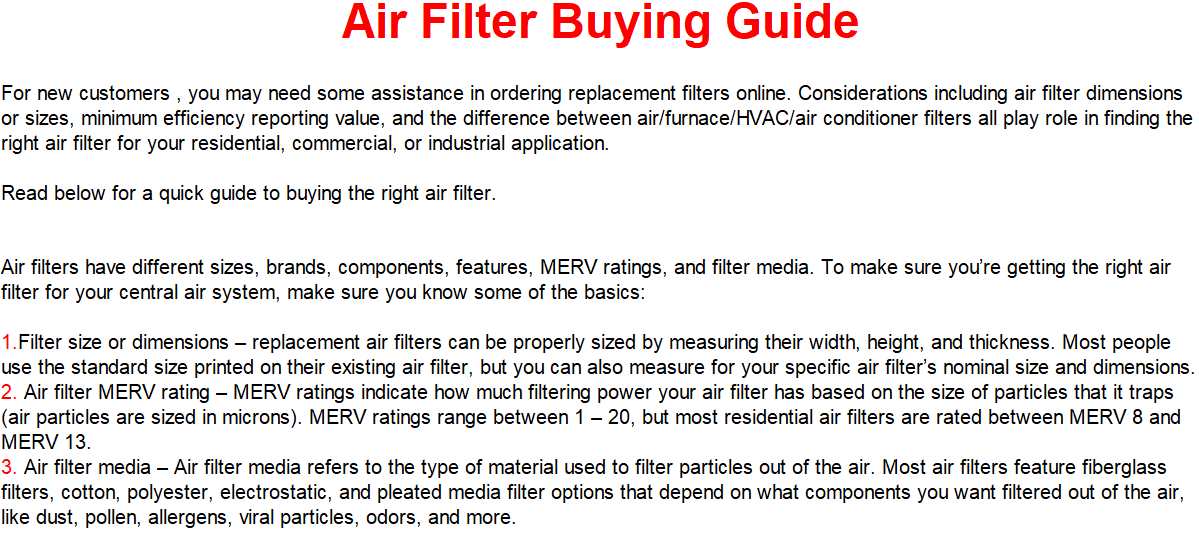

屏幕截图 2023-11-16 104305

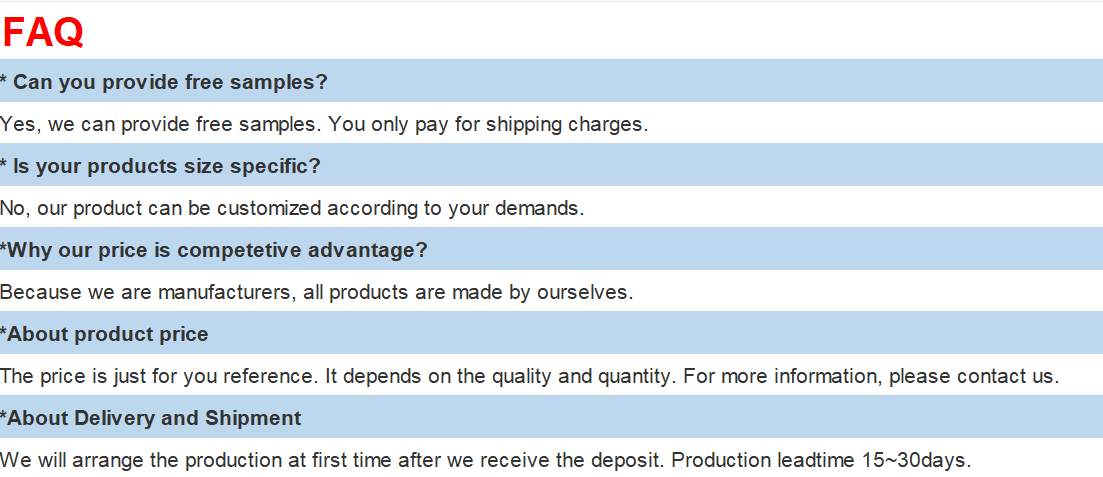

屏幕截图 2023-11-16 104335

Dirkbiel产品详情页

air filter with partition HEPA
