Enkonduko:

The W-type glass fiber filter adopts a V-shaped structure design, which not only increases the ventilation volume, but also improves the dust holding capacity.This extends the service life of the filter. The air filtration efficiency of this filter covers F6-H14,It has the advantages of stable and reliable filtration efficiency, wide applicability and long service life.

Application:

Suitable for various air supply systems, it is widely used in clean rooms, semiconductor industry, biomedicine, special equipment air filtration, and commercial buildings and other fields 应用场景2 拷贝 5

未标题-1 拷贝 2

Advantage:

●Large dust holding capacity

●Large air volume

●High filtration efficiency

●Low resistance

●Easy installation

Specification:

Attributes		Value
Frame		Galvanised sheet metal SUS201,SUS304
Filter material		Wet-laid glass fiber filter paper
Efficiency	EN779	F6-F9
	ASHRAE	MERV11-MERV15
Temperature		≤80℃
Humidity		≤100% RH
Recommended Max. Final Pressureiz drop		≤ 580Pa
Flange		25mm

Technical Data Sheet:

Model	Actual Size (mm)			V	Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN779	KG
Model	Width	Heigh	Depth	V	Filtration area（㎡）	Airflow / initial resistance （m³/h / Pa）			Efficiency EN779	KG

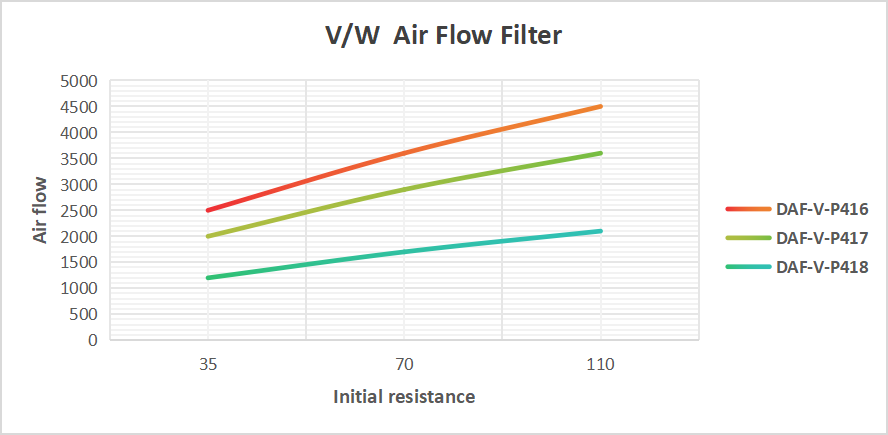

DAF-V-P416	592	592	292	4	19.5	2500 / 35	3600 / 70	4500 / 110	F6	9.0
DAF-V-P417	592	490	292	4	15.4	2000 / 35	2900 / 70	3600 / 110	F6	8.3
DAF-V-P418	592	287	292	4	9.2	1200 / 35	1700 / 70	2100 / 110	F6	6.0

DAF-V-P419	592	592	292	4	19.5	2500 / 50	3600 / 85	4500 / 120	F7	9.0
DAF-V-P420	592	490	292	4	15.4	2000 / 50	2900 /85	3600 / 120	F7	8.3
DAF-V-P421	592	287	292	4	9.2	1200 / 50	1700 /85	2100 / 120	F7	6.0

DAF-V-P422	592	592	292	4	19.5	2500 / 65	3600 / 100	4500 / 130	F8	9.0
DAF-V-P423	592	490	292	4	15.4	2000 / 65	2900 / 100	3600 / 130	F8	8.3
DAF-V-P424	592	287	292	4	9.2	1200 / 65	1700 / 100	2100 / 130	F8	6.0

DAF-V-P425	592	592	292	4	19.5	2500 / 80	3600 / 130	4500 / 170	F9	9.0
DAF-V-P426	592	490	292	4	15.4	2000 / 80	2900 / 130	3600 / 170	F9	8.3
DAF-V-P427	592	287	292	4	9.2	1200 / 80	1700 / 130	2100 / 170	F9	6.0
