GMP Certification Always Failing? H13-Grade HEPA Filters Achieve Zero Microbial Detection​

In industries like pharmaceuticals, biologics, and medical devices, GMP (Good Manufacturing Practice) certification is the core threshold for ensuring product quality. However, inadequate microbial contamination control has become a common pain point leading to certification failures. Statistics show that approximately 30% of sterile contamination incidents originate from defects in air purification systems, particularly insufficient performance or installation flaws in HEPA filters. High-efficiency air purification solutions centered on H13-grade HEPA filters are now key technological supports for enterprises to break through certification bottlenecks and achieve "zero microbial detection

I. Air Filtration Challenges in GMP Certification: Why Does Microbial Control Repeatedly Fail?

1.Stringency of Cleanliness Standards

According to the 2023 edition of the Pharmaceutical GMP Guidelines, sterile drug manufacturing environments must meet ISO Class 5 (Class 100 cleanliness). Core operational areas (e.g., filling lines) require:

•Airborne particles ≥0.5μm: ≤3,520 particles/m³

•Microbial settling bacteria: ≤1 CFU/4 hours.

Traditional filtration systems struggle to meet these standards without H13-grade or higher HEPA filters.

Case Study: A vaccine manufacturer experienced repeated Aspergillus nigercontamination in the cooling section, resulting in three batch failures and a 6-month GMP certification delay

2.Technical Vulnerabilities of HEPA Filters

• Leakage Risks: When filter seals fail or media rupture, a leakage rate exceeding 0.01% causes microbial. Although ISO 14644-3 mandates regular leak testing, companies often neglect sufficient frequency (e.g., semi-annual checks), creating hidden risks

• Inadequate Material Resistance: Ordinary HEPA filters in high-temperature sterilization sections (e.g., tunnel ovens) deform under sustained 250°C+ temperatures, turning cooling zones into microbial breeding grounds




1. 3.System Design and Maintenance Defects

2. GMP requires cleanroom pressure differentials (≥10 Pa between clean/non-clean zones). Imbalanced HEPA filter airflow resistance or delayed replacement disrupts airflow direction, causing cross-contamination

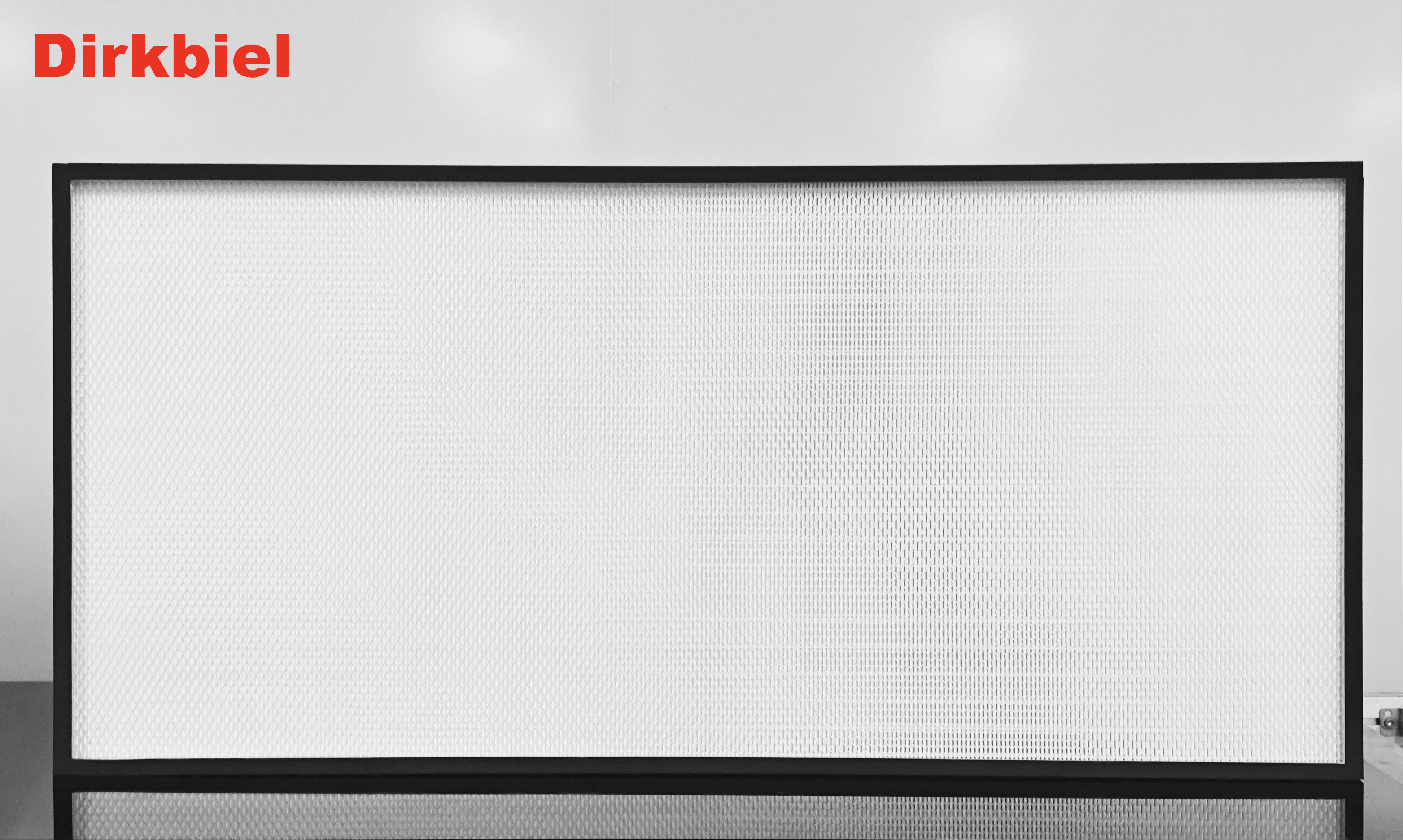

II. H13-Grade HEPA Filters: From 99.95% Efficiency to Zero Detection

H13-grade HEPA filters (≥99.95% efficiency @0.3μm) achieve microbial control through three technological upgrades:

1.Quadruple Filtration Mechanisms

• Interception & Inertial Impaction: Captures bacteria (1–5μm) and fungal spores (2–10μm).




• Diffusion & Electrostatic Adsorption: Targets viruses (0.02–0.3μm) and nanoparticles via Brownian motion

• Data Verification: A pharmaceutical plant reduced airborne bacteria from 150 CFU/m³ to 8 CFU/m³ (94.7% decline) post-upgrade




2.

Innovations in High-Temperature & Corrosion-Resistant Materials







• Fiberglass media + aluminum frames withstand -20°C to 70°C; specialized high-temperature models endure 300°C thermal shocks.

• Polyurethane/silicone seals replace traditional materials, preventing leaks caused by quaternary ammonium disinfectant corrosion

III. Case Studies: From Certification Failure to Zero Detection

IV. Systematic Path to Sustained Compliance

1.

Design Phase: Match Process Risk Levels

• Grade A/B zones: Mandatory H13/H14 filters; unidirectional airflow (0.36–0.54 m/s).

• Grade C/D zones: H13 + secondary filters; ≥15 air changes/hour




2.Validation Phase: Comprehensive Penetration Testing




• Biological Indicators: Geobacillus stearothermophilus(ATCC 7953) for Log⁶ kill-rate validation.




       Airflow Visualization: Smoke tests confirm pressure gradients and direction










3Operation Phase: Data-Driven Lifecycle Management







• Replacement Criteria: Initial resistance doubled (>500 Pa) or 2-year use (whichever comes first).

• Digital Management: Electronic logs for leak scans, pressure data, and microbial monitoring; supports FDA audit trails

Conclusion: From "Compliance Burden" to "Quality Engine"

H13-grade HEPA filters are not just GMP certifications’ gateway but core assets reducing scrap rates and extending equipment lifespans. Data from a biopharma plant shows post-upgrade product qualification rates rose from 95% to 99.5%, with annual energy savings of 180,000 yuan. Amid tightening "zero-defect" regulations, an air quality management system built on high-tech filters, intelligent operations, and lifecycle validation will empower pharmaceutical companies to navigate certification cycles and dominate the market

Technical Statement: H13 efficiency complies with EN 1822; leak testing follows ISO 14644-3. Data sourced from independent third-party test reports
